Sealey Auto Service Series - Video Trigger Functionality; Video Trigger Setup

Original Language Version
TA330 Issue: 1 - 01/12/11
In this mode the trigger signal is either a field signal or a line signal which has been
separated from an original video signal.
A synchroniser separator circuit further breaks down a field signal into either an odd or even
field signal.

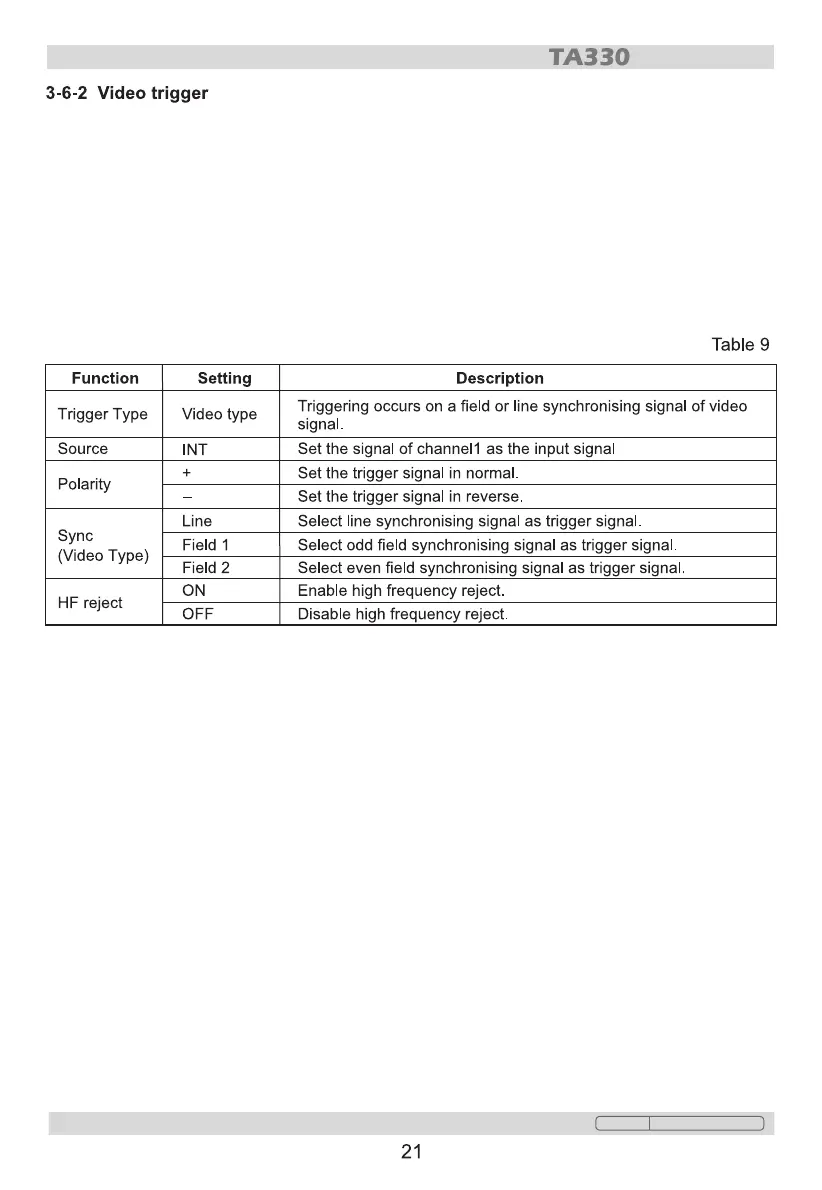

There are therefore three trigger options to choose from in this mode as laid out in table 9.
