Original Language Version
T
A330
Issue:
1
- 01/1
2
/1
1

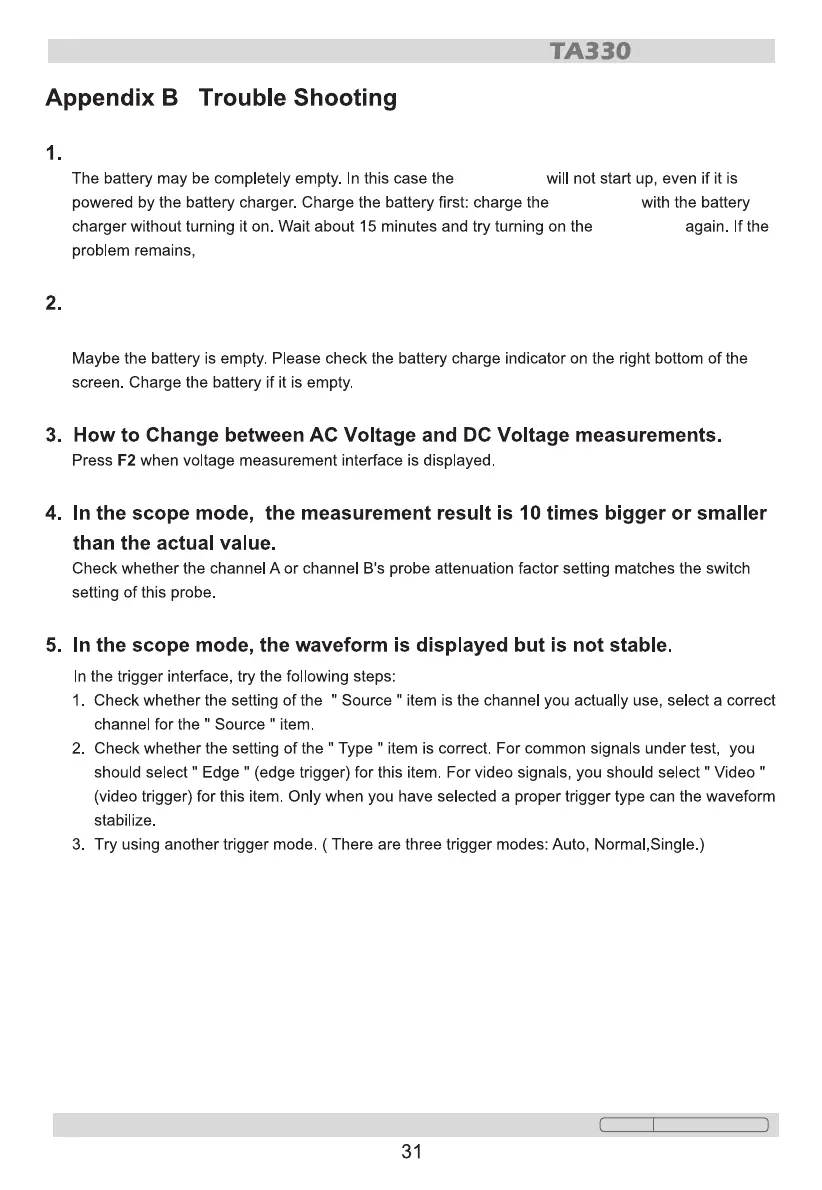

The oscilloscope does not start up.
The oscilloscope turns off automatically after operating for only several
seconds.
contact your Sealey Dealer.
oscilloscope
oscilloscope
oscilloscope
30
32
Table of Contents
Default Chapter
2
General Safety Summary
2
Table of Contents
3
Chapter 1.0 Introduction
4
Unpacking and Checks
4
Product Introduction
4
Product Functions
4
Product Characteristics
4
Chapter 2.0 Operating Basics
5
Charging the Battery
5
Power on
5
System Set-Up and Automatic Set-Up
7
Set-Up of System Parameters
7
Automatic Set-Up
9
Saving Set-Up and Resetting the Oscilloscope
9
Adjusting Channel and Locking/Unlocking Waveform
9
Adjusting Channel
9
Channel's Run or Stop
10
Power off
10
Chapter 3.0 Oscilloscope
10
Set up of Vertical System
11
Coupling Setting of Signal Input Channel
11
Amplitude
13
Set up of the Horizontal System
13
FFT Function
14
Automatic Measurement Function
14
Storage Function (Waveform and Setting)
16
Trigger Function
19
Edge Trigger
19
Video Trigger
21
Chapter 4.0 Multimeter
22
Voltage Measurement
22
Resistance Measurement
23
Capacitor Measurement
23
Continuity Test
24
Diode Test
25
Current Measurement
26
Clamp Ammeter Measurement
27
Appendix
28
Appendix A Main Technical Data
28
Appendix B Trouble Shooting
31
Appendix C How to Use the Input Terminals
32
Appendix D Compensating the Probe
33
Appendix E Software Instruction
34
Appendix F Packing List
36
