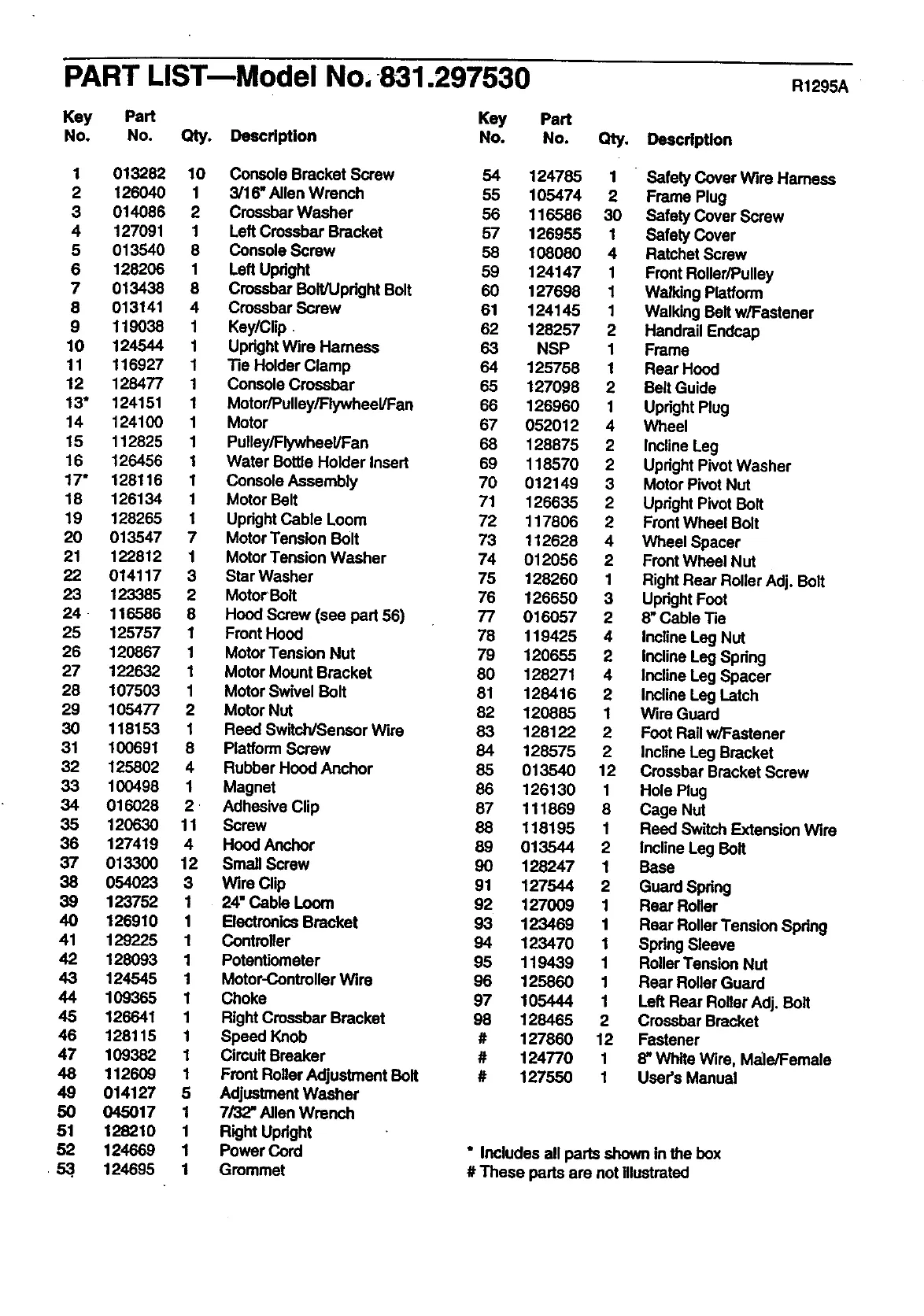

PART LIST-Model No, 831.297530
Key Part Key Part
No. No. Qty. Deacdption No. No. Qty, Deacription
R1295A
1 013282 10 Console Bracket Screw 54 124785 1 " Safety Cover Wire Hamess
2 126040 1 3/16* Allen Wrench 55 105474 2 Frame Plug
3 014086 2 Crossbar Washer 56 116586 30 Safety Cover Screw
4 127091 1 Left Crossbar Bracket 57 126955 1 Safety Cover
5 013540 8 Console Screw 58 108080 4 Ratchet Screw
6 128208 1 Left Upright 59 124147 1 Front Roller/Pulley
7 013438 8 Crossbar Bolt/Upright Bolt 60 127698 1 Walking Platform
8 013141 4 Crossbar Screw 61 124145 1 Walking Belt w/Fastener
9 119038 1 Key/Clip. 62 128257 2 Handrail Endcap
10 124544 1 Upright Wire Harness 63 NSP 1 Frame
11 116927 1 Tie Holder Clamp 64 125756 1 Rear Hood
12 128477 1 Console Crossbar 65 127098 2 Belt Guide
13" 124151 1 Motor/Pulley/Flywheel/Fan 86 126960 1 Upright Plug
14 124100 1 Motor 67 052012 4 Wheel
15 112825 1 Pulley/Flywheal/Fan 68 128875 2 Incline Leg
16 126456 1 Water Bottle Holder Insert 69 118570 2 Upright Pivot Washer
17" 128116 1 Console Assembly 70 012149 3 Motor Pivot Nut
18 126134 1 Motor Belt 71 126635 2 Upright Pivot Bolt
19 128265 1 Upright Cable Loom 72 117806 2 Front Wheel Bolt
20 013547 7 Motor Tension Bolt 73 112628 4 Wheel Spacer
21 122812 1 Motor Tension Washer 74 012056 2 Front Wheel Nut
22 014117 3 Star Washer 75 128260 1 Right Rear Roller Adj. Bolt
23 123385 2 Motor Bolt 76 126650 3 Upright Foot
24 - 116586 8 Hood Screw (see part 56) 77 016057 2 8" Cable Tie
25 125757 1 Front Hood 78 119425 4 Incline Leg Nut
26 120867 1 Motor Tension Nut 79 120655 2 Incline Leg Spdng
27 122632 1 Motor Mount Bracket 80 128271 4 Incline Leg Spacer
28 107503 1 Motor Swivel Bolt 81 128416 2 Incline Leg Latch
29 105477 2 Motor NUt 82 120865 1 Wire Guard
30 118153 1 Reed Switch/Sensor Wire 83 128122 2 Foot Rail w/Fastener
31 100691 8 Platform Screw 84 126575 2 Incline Leg Bracket
32 125802 4 Rubber Hood Anchor 85 013540 12 Crossbar Bracket Screw
33 100498 1 Magnet 86 126130 1 Hole Plug
34 016028 2 • Adhesive Clip 87 111869 8 Cage Nut
35 120630 11 Screw 88 118195 1 Reed Switch Extension Wire
35 127419 4 Hood Anchor 89 013544 2 incline Leg Belt
37 013300 12 Small Screw 90 128247 1 Base
38 054023 3 Wire Clip 91 127544 2 Guard Spring
39 123752 1 24" Cable Loom 92 127009 1 Rear Roller
40 126910 1 Electronics Bracket 93 123469 1 Rear RollerTansion Spring
41 129225 1 Controller 94 123470 1 Spring Sleeve
42 128093 1 Potentiometer 95 119439 1 Roller Tension NUt
43 124545 1 Motor-Controllar Wire 96 125860 1 Rear Roller Guard
44 109365 1 Choke 97 105444 1 Left Rear Roller Adj. Bolt
45 126641 1 Right Crossbar Bracket 98 128465 2 Crossbar Bracket
46 128115 1 Speed Knob # 127860 12 Fastener
47 109382 1 Cimuit Breaker # 124770 1 8" White Wire, Male/Female
48 112609 1 Front Rollor A_justment Bolt # 127550 1 User's Manual
49 014127 5 Adjustment Washer
50 045017 1 7/32" Allen Wrench
51 128210 1 Right Upright
52 124669 1 Power Cord * Includes all parts shown in the box
• 53.. 124095 1 Grommet # These parts are not illustrated
