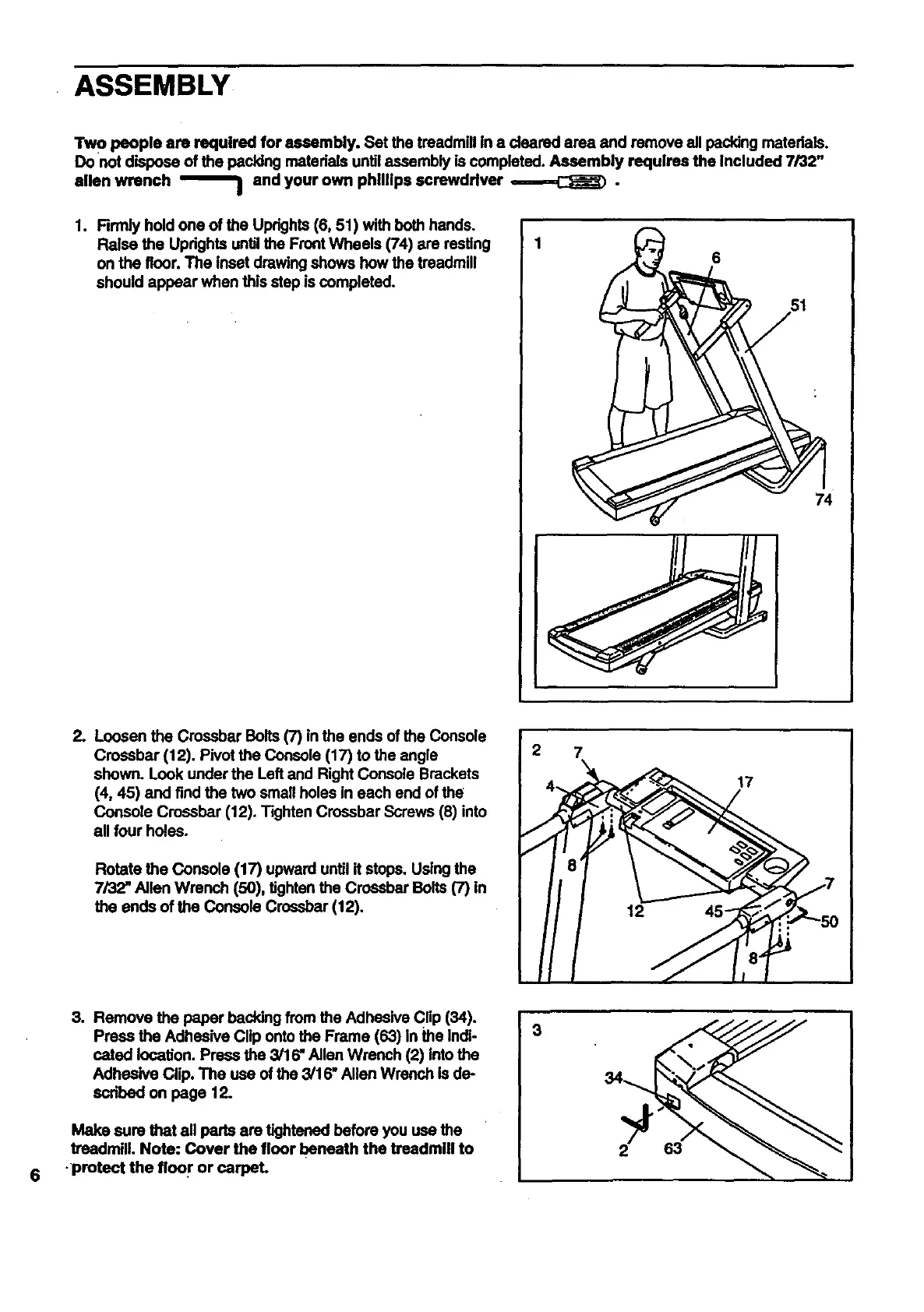

ASSEMBLY
Two people am requirecl for assembly. Set the treadmill in a deared area and remove all packing matedals.
Do not dispose of the pecking materials untilassembly is completed. Assembly requires the Included 7/32"
allen wrench _ and your own phillips screwdriver ,=-=---=,,C_J_) •
1. Rrmly hold one of the Uprights (6, 51) with both hands.
Raise the Updghts until the Front Wheels (74) are resting
on the floor. The inset drawing shows how the treadmill
should appear when this step is completed.
6
74
t
Loosen the Crossbar Bolts (7) in the ends of the Console
Crossbar (12). Pivot the Console (17) to the angle
shown. Look under the Left and Right Console Brackets
(4, 45) and find the two small holes in each end of the
Console Crossbar (12). Tighten Crossbar Screws (8) into
all four holes.
Rotate the Console (17) upward until it stops. Using the
7/32" Allen Wrench (50), tighten the Crossbar Bolts (7) in
the ends of the Console Crossbar (12).
2 7
17
6
3. Remove the paper backing from the Adhesive Cflp (34).
Press the Adhesive Clip ontothe Frame (63) in the Indi-
cated location. Press the 3/16" Allen Wrench (2) Intothe
Adhesive Clip. The use of the 3/16" Allen Wrench is de-
scdbed on page 12.
Make sure that all perts are tightened before you use the
treadmill. Note: Cover the floor beneath the treadmill to
•protect the floor or carpel
3
63
