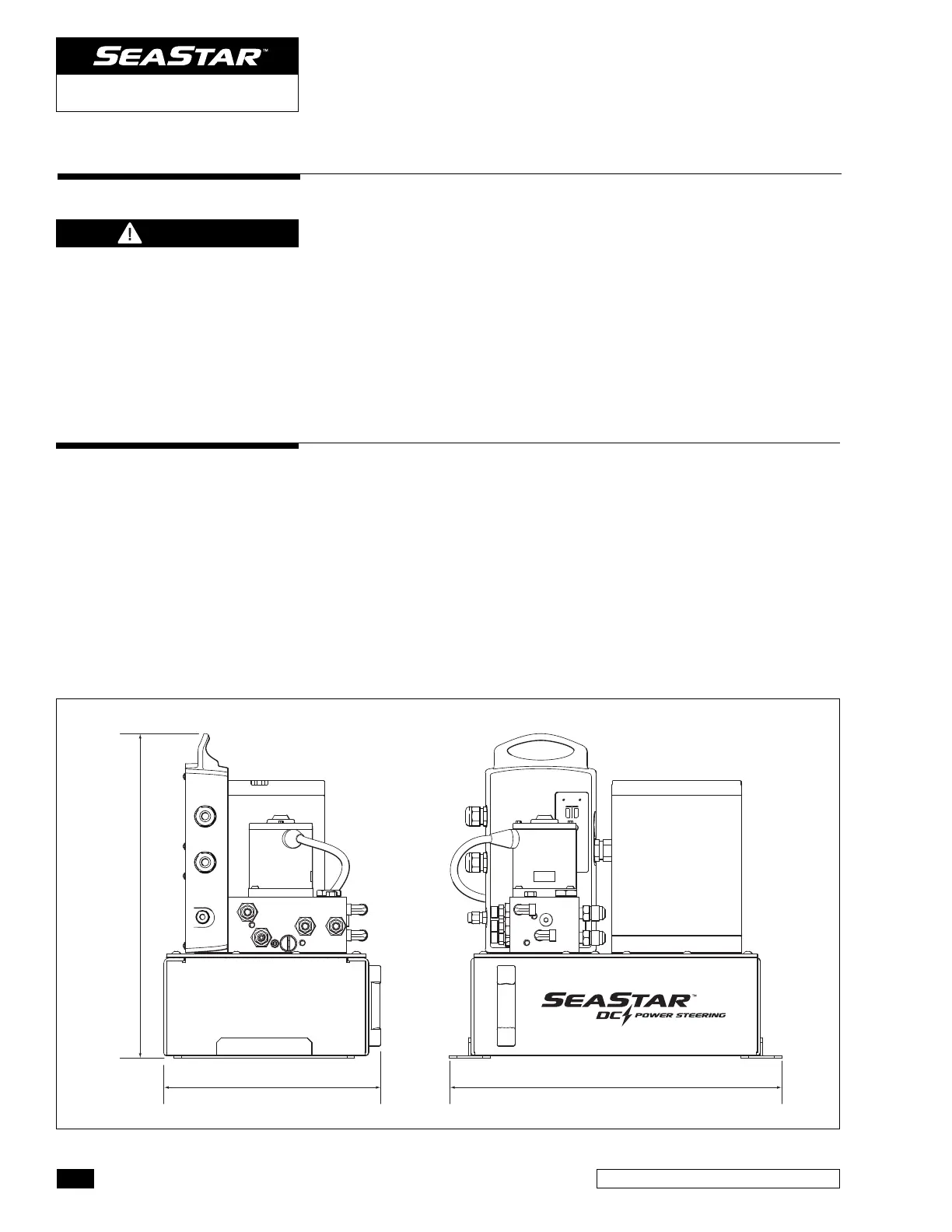

Seastar Solutions DC1000 User Manual

4
SEASTAR Hydraulics
16-1/8" (410 mm)10-5/8" (270 mm)
15-3/4" (400 mm)
Figure 2.
DC POWER STEERING UNIT
You will need the following tools to complete your installation.
Tools
Specifications
• 5/32" and 1/4" Allen keys
• Phillips head screw driver
• Slotted/Flat head screw driver
• PST Liquid, Teflon based pipe
sealant
• 3/4" and 7/8" open ended
wrenches
• Electrical cut and crimp pliers
• ALL other tools noted in your
helm pump and steering
cylinder owner’s manual
• Funnel
• Crescent wrench
DO NOT Use Teflon Tape.
WARNING
DC 1000
• Power unit = 24Volts
• Autopilot pump = 12Volts
0-60 in
3
/min (fully adjustable)
• Peak current draw
@ 1250psi = 72A
• Idle current draw = 0.2 amps
• Average current draw = 10-15
amps
(depending on application)
• Weight = 55 lb (25kg) Dr y
• Tank Capacity = 1.85 gal (7L)
DC 2000
• Power unit = 24Volts
• Autopilot pump = 24 Volts
0-60in
3
/min (fully adjustable)
• Peak current draw @
1250psi = 72A
• Idle current draw = 0.2 amps
• Average current draw = 10-15
amps
(depending on application)
• Weight = 55 lb (25kg) Dr y
• Tank Capacity = 1.85 gal (7L)
