DC Power Steering System
7

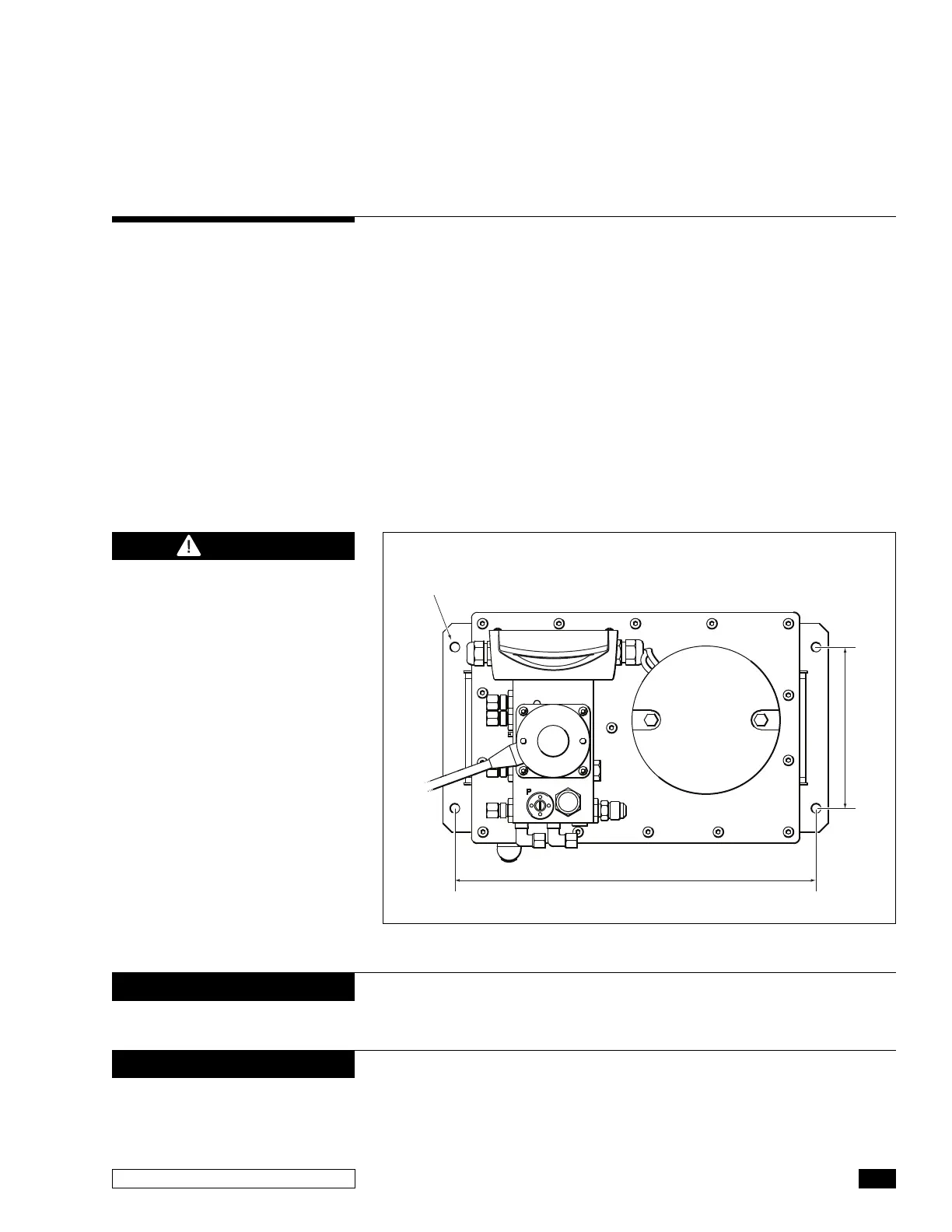

MOUNTING
HOLES (4)
3/8" DIA.
15-1/8" (384 mm)
6-3/4" (172 mm)
Figure 4.
NOTICE
For installations with minimal clearance behind unit, it is advised
that electrical connections are made prior to mounting the Unit.
NOTICE
For installations in areas where pump noise may disturb passengers,
the use of rubber isolation mounts is recommended. SeaStar Solutions
part # HA2222.
1.3
1.1
1.2
Install Helm Pump(s)
• Install SeaStar Helm pump(s) using the instructions provided
with your helm(s).
Install Steering Cylinder(s)
• Install SeaStar steering cylinder(s) using the instructions
provided with your cylinder(s).
DC Power Unit Mounting
• Using the four mounting holes on the base of the unit, mount
the DC Power Unit in the desired location. Confirm that there
will be sufficient room for filling/purging, hose connections and
future access to the unit.
Mount the unit in a cool
location, away from any
sources of excessive heat,
such as engine manifolds, and
also free of any water splash.
CAUTION
Step 1 Mounting and Plumbing
SYSTEM INSTALLATION
