Seastar Solutions DC1000 User Manual

6
SEASTAR Hydraulics
Making Electrical Connections
• Refer to page 12 of this manual for electrical connections.
Prior to making electrical connections of any type, be sure to vent
installation area of any fumes. Failure to do so may result in a
fire causing property damage and/or personal injury or death.
Filling and Purging Procedure
• Refer to page 14 of this manual for filling and purging of the
steering system.
Autopilot Tuning
• Refer to page 17 of this manual to adjust autopilot speed.
System Verification & Operation Check
• Refer to page 17 of this manual to verify system operation.
WARNING
STEP 2
STEP 3
STEP 4
STEP 5
TO AUTOPILOT
(RED/BLACK)
+
IGNITION
+
BATTERY
–
BATTERY

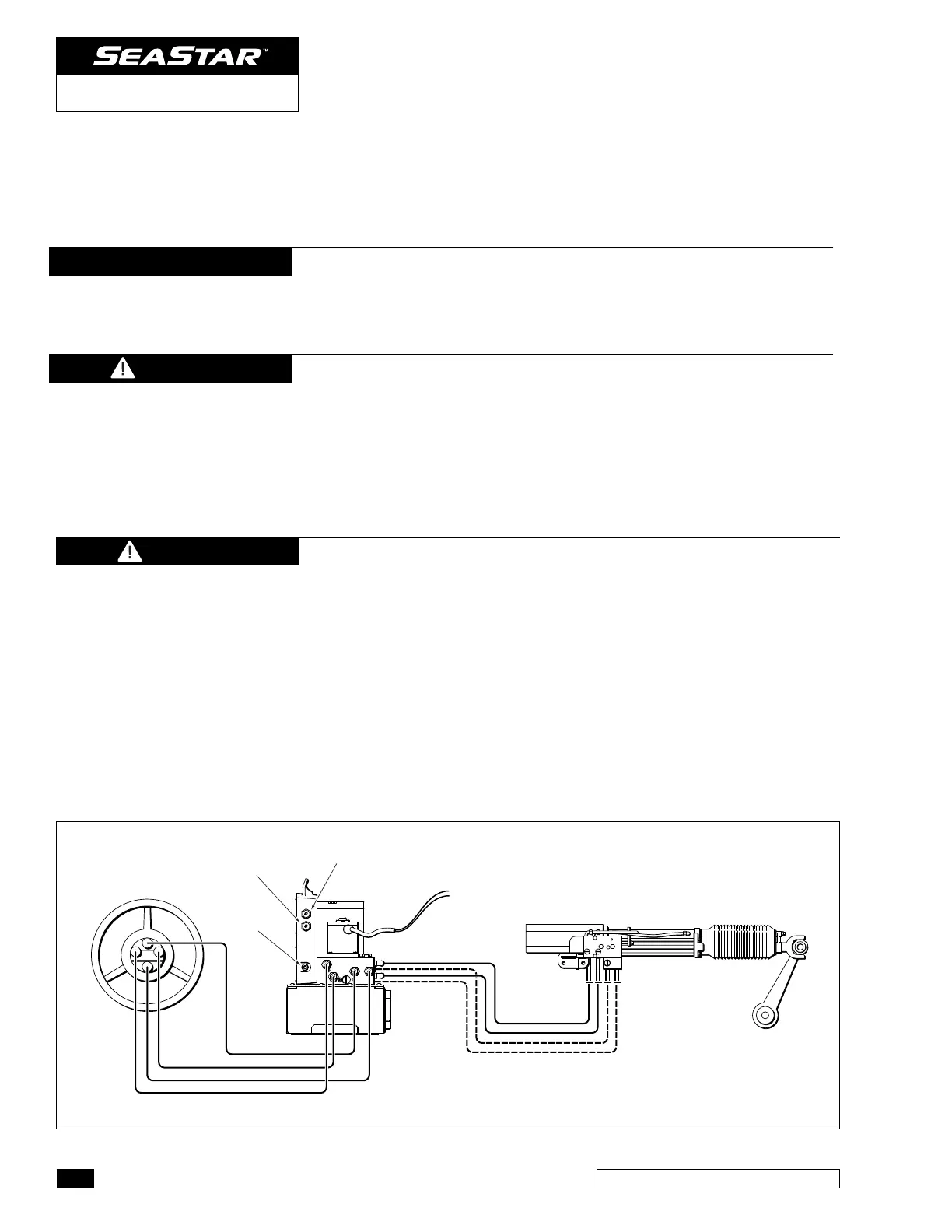

Figure 3.
• Mount DC Power Unit. Refer to page 7 for mounting details.
• Install relief module on power steering cylinder. Refer to page 8
for installation details.
DO NOT mount the DC Power Unit in an area where pump noise
may disturb passengers.
• Install steering hoses using the figures and table shown on
page 9 and page 10.
The DC Power unit may be HOT to the touch. DO NOT mount the
DC Power Unit in an area where fabrics and/or any other
flammable material may come in contact with the unit.
WARNING
NOTICE
DC POWER STEERING UNIT
