F
u
se
s

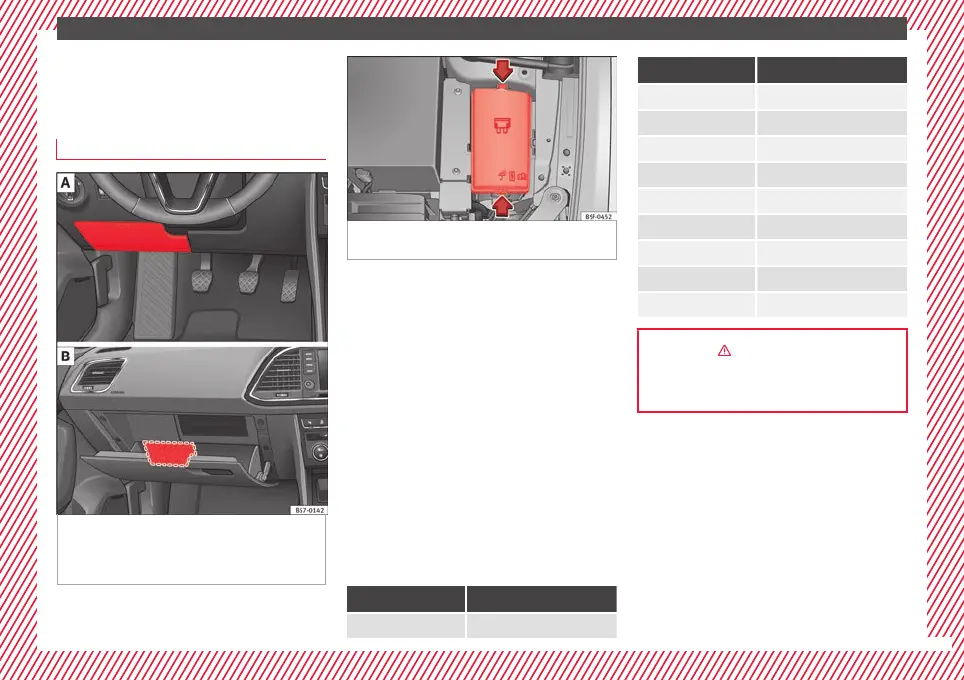

Fuse location
Fig. 66 Left-hand drive: fuse box cover on
the driv
er-side dash panel. Right-hand
drive: fuse box behind the glove compart-
ment.
Fig. 67 In the engine compartment: fuse box
cov
er.
Underneath the instrument panel (left-hand
driv
e)
The f
u
se box is located behind the storage
compartment ››› Fig. 66 .
Behind the glove compartment (right-hand
drive)
The fuse box is located behind the glove
compartment ››› Fig. 66 . To be able to ac-
cess the fuse box ›››
page 103.
In the engine compartment
Press the locking tabs to release the fuse box
cover ››› Fig. 67.
Identifying fuses situated below the dash
panel by colours
Colour Amp rating
Black 1
Colour Amp rating
Purple 3
Light brown 5
Brown 7.5
Red 10
Blue 15
Yellow 20
White or transparent 25
Green 30
Orange 40
››› in Introduction on page 102
››› page 102
