Operation
Retractable shelf
3 Valid for: LEON Sportstourer

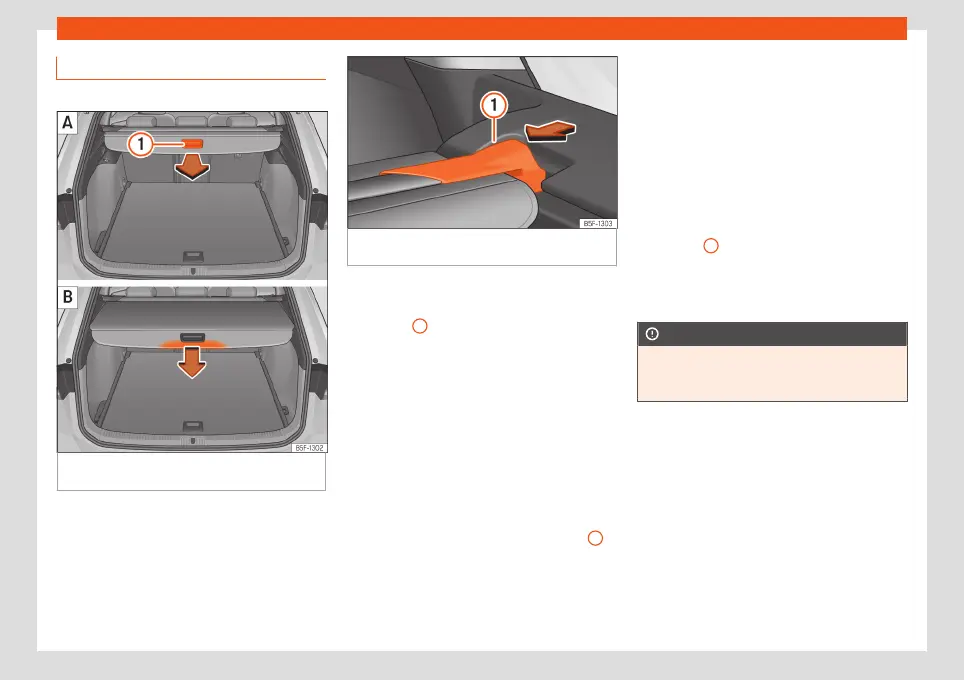

Fig. 125
In the luggage compartment: unroll-
ing and rolling up the shelf.
Fig. 126
In the luggage compartment: remov-
ing the shelf.
Extending the shelf
●
Pull evenly on the rear shelf using its handle
›››
Fig. 125
1
in a backwards direction un-
til it audibly clicks into place.
Retracting the rear shelf
●
Press on the handle of the rear shelf in the
direction of the arrow to release it
›››
Fig. 125
.
The shelf will automatically move towards
the end and will retract completely.
Removing the shelf
●
Press the rear shelf support
›››
Fig. 126
1
in the direction of the arrow.
●
Remove the rear shelf through the support
and upwards.
●
The rear shelf can be stored under the lug-
gage compartment variable floor when the
latter is in the top position (except for vehicles
equipped with natural gas engine CNG)
›››
page 141.
Fitting the shelf
●
Place the rear shelf in the housing provided
in the left or right side cover.
●
Engage the support of the rear shelf
›››
Fig. 126
1
into the housing on the other
side.
●
Check that the support is properly engag-
ed.
CAUTION
To retract the rear shelf, press on its handle
in a downwards only direction; if you press
it upwards it may lead to its axles breaking.
