Fit a child seat with the ISOFIX / i-Size and Top Tether system

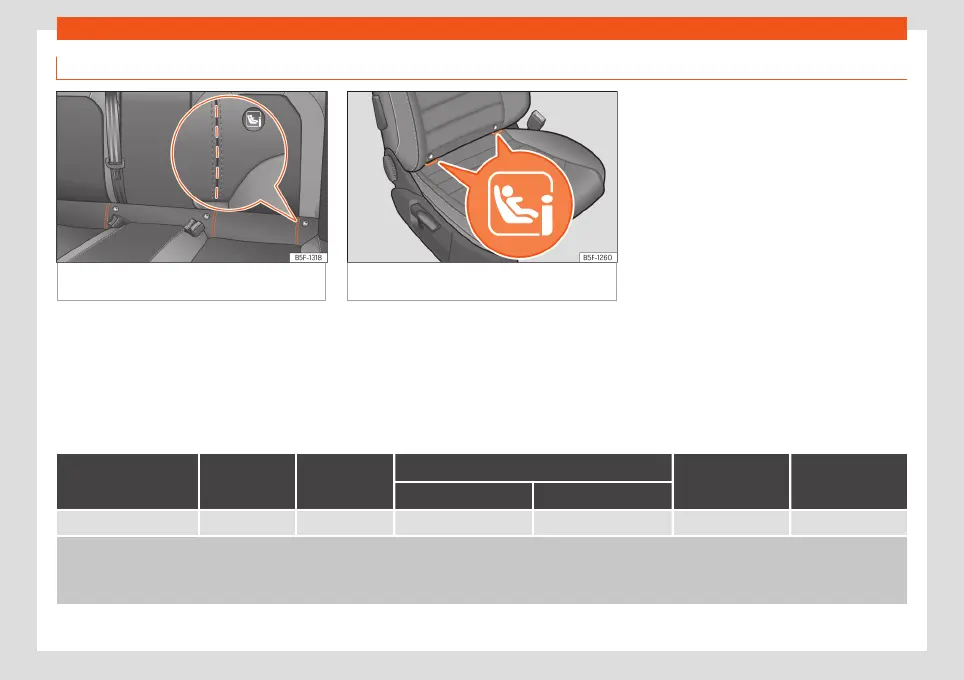

Fig. 32
Rear seat: die cut slots to access the
ISOFIX / iSize securing rings.
Fig. 33
Front passenger seat: ISOFIX/i-Size se-
curing rings.
Child seats can be secured quickly, easily
and safely on the rear side and passenger
seats with the “ISOFIX” and Top Tether sys-
tem.
Two “ISOFIX” securing rings are fitted on each
rear side and passenger seat. In some vehi-
cles, the rings are secured to the seat frame
and, in others, they are secured to the rear
floor. The “ISOFIX” rings are located between
the rear seat backrest and the seat cushion-
ing
›››
Fig. 32,
›››
Fig. 33. The Top Tether rings
are located on the rear part of the rear seat
backrests (behind the backrest or in the lug-
gage compartment)
›››
page 40.
To understand the compatibility of the “ISO-
FIX” systems in the vehicle, check the table
below.
Vehicle ISOFIX positions
Weight group Size class
a)
Electrical
equipment
Front passenger seat
Rear side seat
Rear central
seat
airbag enabled airbag disabled
Group 0 to 10 kg E ISO/R1 X IL IL X
IUF: Suitable for forward-facing ISOFIX universal child restraint systems approved for use in this weight group.
IL: It is suitable for certain ISOFIX child restraint systems (CRS) that can be for the specific vehicle, restricted or semi-universal categories. Take the child seat manufacturer's
vehicle list into account.
X: ISOFIX position not suitable for ISOFIX child restraint systems for this weight group or size class.
38
