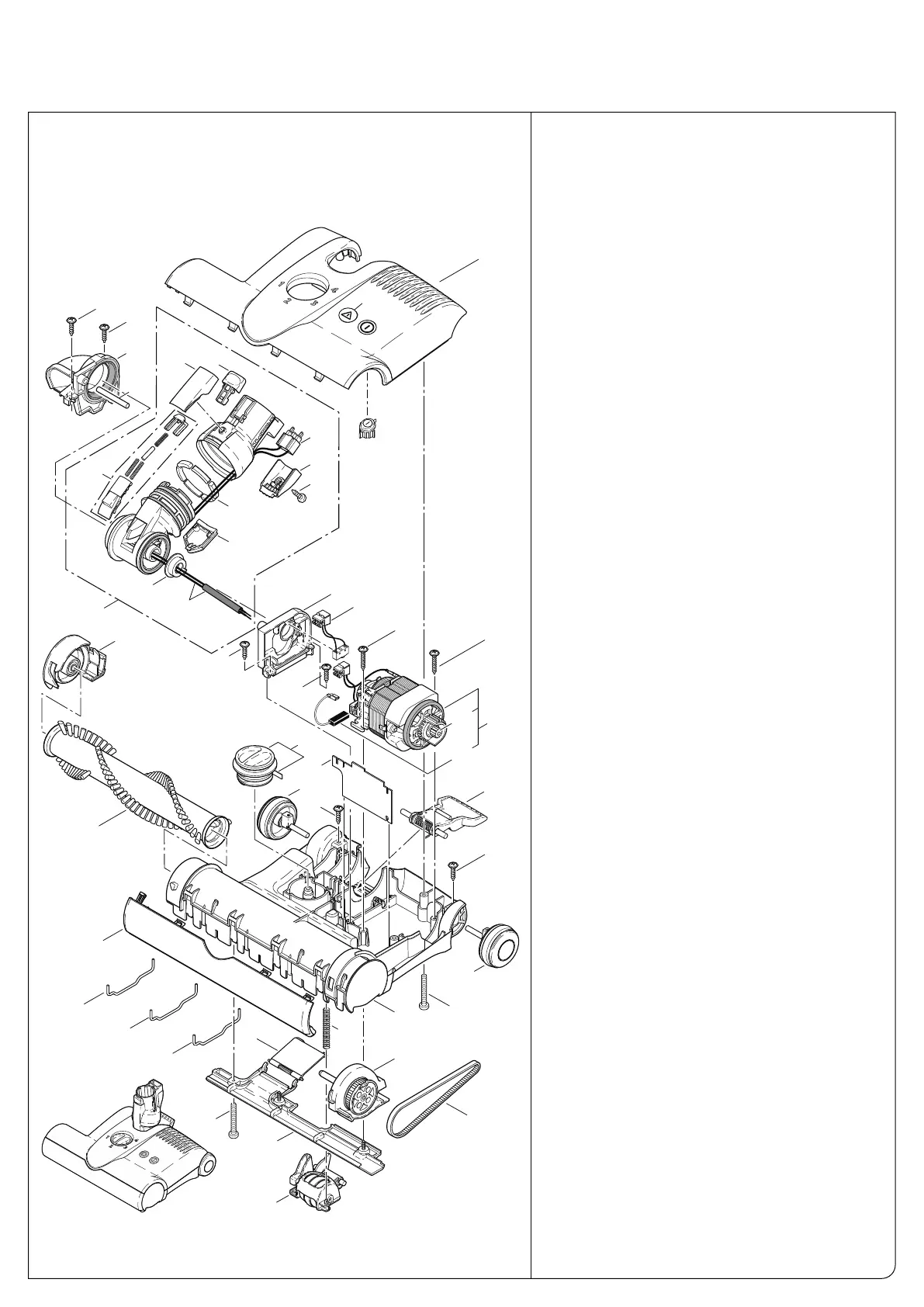

ET-1 POWER HEAD WITHOUT FOOT SWITCH SCHEMATIC AND PARTS LIST
137
132
136
127
127
123
126
118
117
120
114
121
116
115
119
124
125
130
130
114
122
127
105
113
135
128
129
127
110
131
112
127
111
127
104
101
134
108
106
133
134
134
133
109
107
102
100
111
103
ET-1: 12 inches
#9260AM ET-1 Arctic White Power Head
WITHOUT FOOT SWITCH
Pos. Part # Description
100 2324GS Chassis ET-1
101 2302GS Bumper, cpl.
102 2314GS Bearing block, left cpl.
103 2923 Belt 333 3M HTDII-6
104 5010AM Brush roller, cpl.
105 2313GS Bearing block, right cpl.
106 2929 Spring
107 2316GS Pile adjustment assembly, cpl.
108 2909VO Access door w/axle & spring
109 2304GS Rear bottom plate, cpl.
110 2931GS Pile adjustment knob, gray black
111 2306GS Wheel, cpl.
112 2937OR Foot pedal w/axle & spring
113 2307GS Swivel neck assembly, cpl.
114 0876ER Wiring for swivel neck
115 2947GS Cover, TS-neck
116 2950ER Segments, metal (6 pc. set), TS-neck
117 6480ER Release button/w leaf spring
118 2952GS Button cover
119 2945GS Swivel neck slide
120 2951GS Socket cover
121 01027 Screw F 3.9x9.5
122 2954 Swivel neck bearing
123 2311 Swivel neck support, right
124 2312 Swivel neck support, left
125 0880 Wiring swivel neck switch
126 2928 Axle
127 01021 Screw F 3.9x13
128 2973ER Brush motor, 175W w/pulley (129 & 138)
129 05141S Carbon brush set
130 01020 Screw F 3.9x21
131 2684ER Printed circuit board, V2 PCB
132 20337WEET Power head cover ET-1, white
133 0176 Screw AM 4x30
134 5402 Wire tire
135 2319 Motor pulley
136 20955 Lens left, w/o foot switch
137 2956 Brush light lens, right
#9261AM ET-1 Onyx (Black) Power Head
WITHOUT FOOT SWITCH Exception
110 2931SB Pile adjustment knob, silver
132 20337SWET Power head cover ET-1, black
#9274AM ET-1 Orange Power Head
WITHOUT FOOT SWITCH Exceptions
132 20337VOET Power head cover ET-1, orange
#9296AM ET-1 Red Power Head
WITHOUT FOOT SWITCH Exceptions
132 20337DRET Power head cover ET-1, red
#9988AM ET-1 Graphite Power Head
WITHOUT FOOT SWITCH Exceptions
110 2931SB Pile adjustment knob, silver
132 20337GSET Power head cover ET-1, graphite
ET-1 Power Head without Foot Switch
#9260AM ET-1 Arctic White
#9261AM ET-1 Onyx (Black)
#9274AM ET-1 Orange
#9296AM ET-1 Red
#9988AM ET-1 Graphite
