Sebo ET-1 - SEBO Power Head Assembly Instructions; Attaching Power Head to Vacuum Tube

5
1. Power head
2. Brush height adjustment
3. Swivel neck
4. Connection plug
5. Brush obstruction light
6. On/off brush switch and power light for
models with foot switch
Brush power light for models without
foot switch
7. Brush roller end cap
8. Foot Pedal
9. Telescopic tube release button
10. Brush roller release button

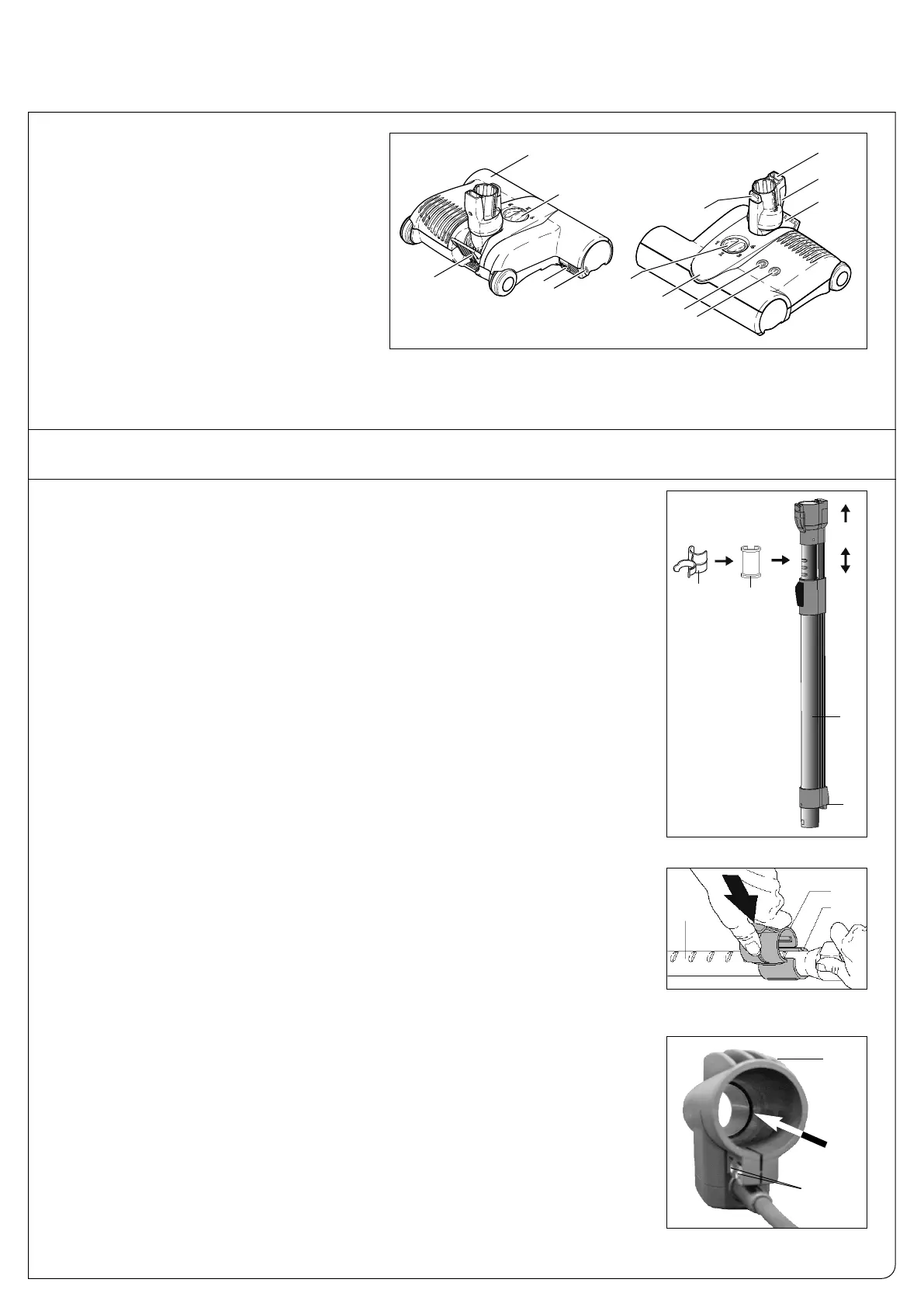

IDENTIFICATION OF PARTS
Attaching the Power Head to the Telescopic Tube of your SEBO
Canister Vacuum or the Central Vac Wand - Figure 1
Insert the base of the telescopic tube (11) or central vac wand into the power head swivel
neck (3). Make sure that the connection tab (12) is properly aligned with the connection
plug (4) in the swivel neck.
Attaching the Brush Clip Adapter to the Telescopic Tube -
Figures 1 & 2
Step 1: Pull the telescopic tube at least 3 to 5 positions above the fully-lowered posi-
tion (figure 1). Press the adapter (14) over the telescopic tube (11) until it snaps on to
the tube. The adapter will lock into the indented lines on the tube.
Step 2: Lay the telescopic tube (11) with the adapter attached (14) on a stable surface
(e.g. a table) and press the brush clip (13) over the adapter (figure 2). The outer ridges
of the brush clip adapter hold the brush clip (13) in place.
Attaching the Central Vac Adapter - Figure 3
Step 1: Locate the “stop groove”(16) inside the adapter (15).
Step 2: Loosen the two screws (17) on the adapter (15), but do not remove. Insert the
wand into the tube of the adapter until it rests FIRMLY against the “stop groove” (16). The
tube MUST be fully inserted up to the “stop groove.” If necessary, place the adapter
against a soft stationary surface and use a RUBBER mallet to GENTLY tap the adapter onto
the tube until it rests against the “stop groove.” NOTE: The tube MUST be FULLY inserted.
Step 3: Tighten the screws (17) but do not overtighten them.
