Installing the SSR303
The SSR303 receiver should be
located as near as is practical to
the device to be controlled, as
well as a convenient mains

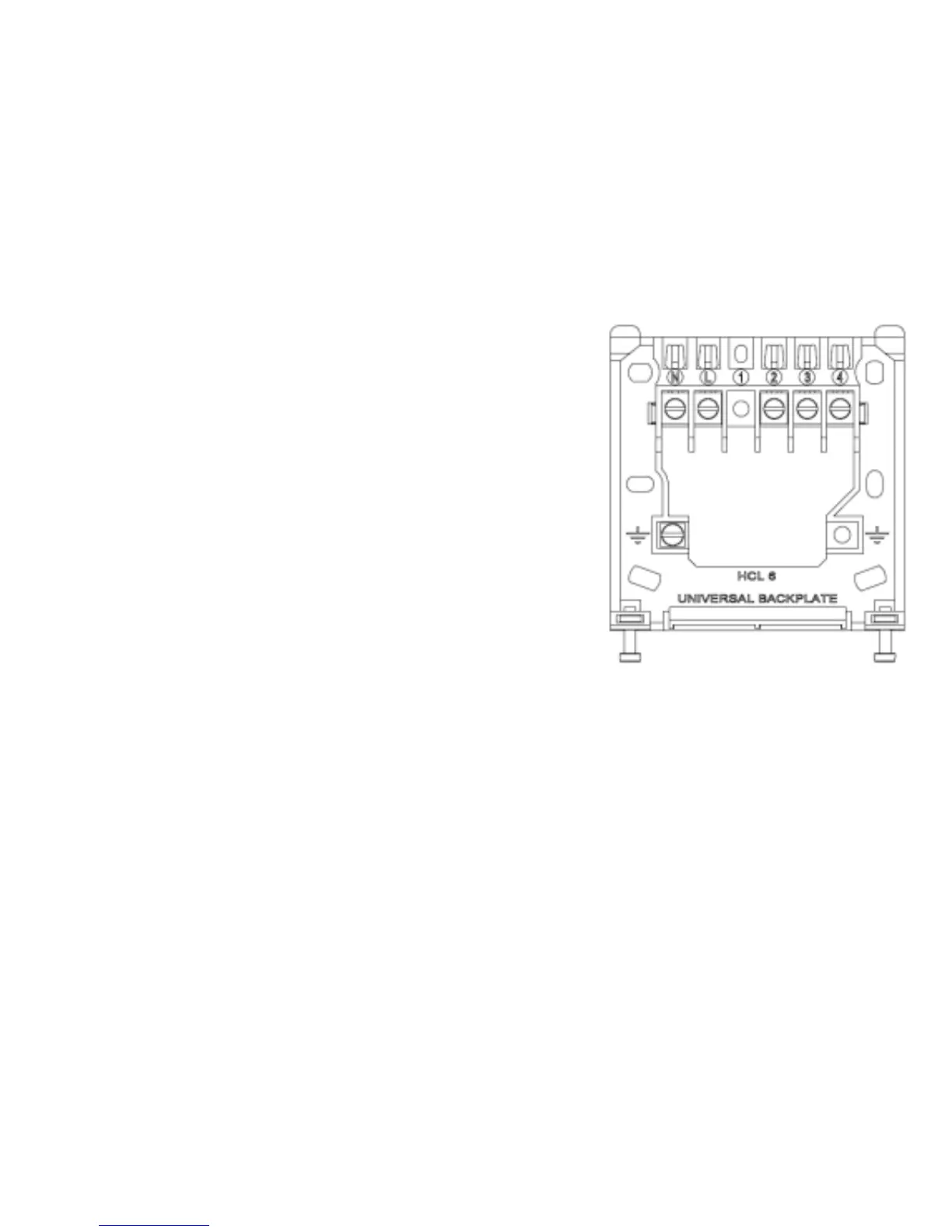

electricity supply. To remove the
wall plate from the SSR303,
undo the two retaining screws
located on the underside, the
wall plate should now be easily
removed. Once the wall plate has
been removed from the packaging please ensure the
SSR303 is re-sealed to prevent damage from dust,
debris etc.
The wall plate should be fitted with the retaining screws
located at the bottom and in a position which allows a
total clearance of at least 50mm around the SSR303
receiver.
5
Installing the receiver
