Model 26-500
© 2021 Security Brands, Inc. All rights reserved.
QUICK START GUIDE
ADVANTAGE DKE
QSG-26500-EN Rev. H (9/2021)
12–24 VAC/DC
POWER
12–24 VAC/DC
POWER RELAY A RELAY B
Gate Operator / Door Opener
Advantage DKE
Power and Relay Terminals
Exit Device
(58-RTE-P is shown)
Advantage DKE

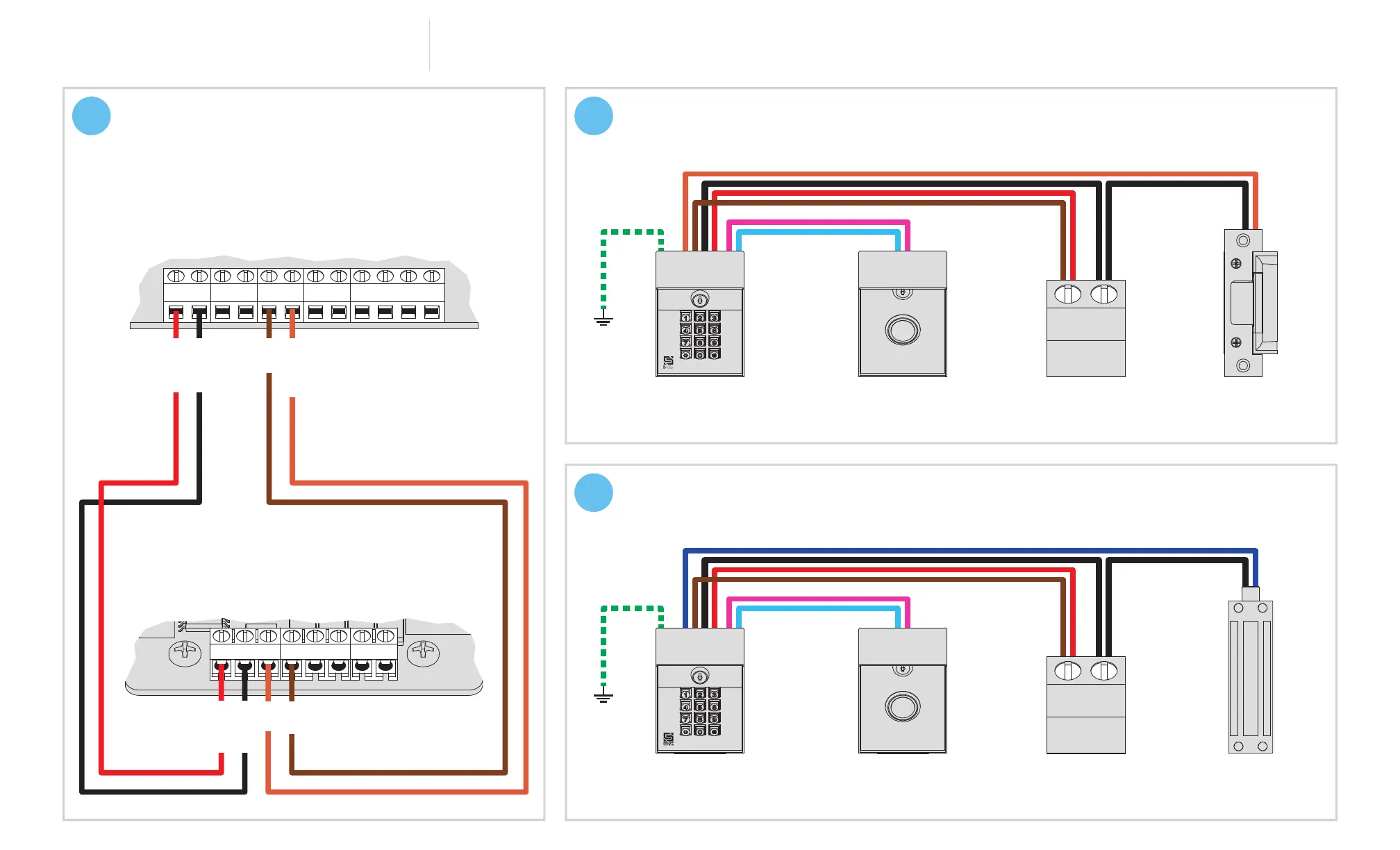

5a
Make the connections
Wiring for Gate Operator or Door Opener
5b
Make the connections
Wiring for Electric Door Strike and Exit Device
Power Source
(12–24-VAC/DC)
Electric Strike
Advantage DKE
5c
Make the connections
Wiring for Mag Lock and Exit Device
Mag Lock
(57-1200MAG is shown)
Exit Device
(58-RTE-P is shown)
Power Source
(12–24-VAC/DC)
Connect to
Event Input
Terminals on
keypad unit.
Connect to
Relay A or B
N/O and COM
terminals on
keypad unit.
Connect to
Relay A or B
N/C and COM
terminals on
keypad unit.
Connect to
Event Input
Terminals on
keypad unit.
+
–
+
–
POS. (+)
NEG. (–)
COM
REVERSE LOOP
COM
OPEN
STOP
CLOSE
FREE EXIT
COM COM
RADIO
N/C
COM
N/O
N/C
COM
N/O
POS. (+)
NEG. (–)
Relay B can be wired to a second device
in the same manner.
Earth ground is
optional unless
required by
local code.
Earth ground is
optional unless
required by
local code.
