SEELEY INTERNATIONAL
- SERVICE GUIDE
|
5
MAGIQTOUCH/MAGIQCOOL
COMPATIBLE EVAPORATIVE
COOLERS
The previous Breezair and Braemar range
has been replaced with MagIQtouch and
MagIQcool compatible models.
Introduction of the MagIQtouch controller
brings the following changes:
COMMUNICATION CABLE
• Cable type
26AWG 7/0.16, 6 core at communication cable
with 6P/6C RJ12 plug connections (not backwards
compatible with previous models)
• Cable lengths
Maximum recommended cable lengths changed
due to increased power requirements of the
MagIQtouch controller. Maximum cable length from
controller to rst cooler is 25m. (Each cooler is
supplied with a 20m cable ex factory).
COMMISSIONING
• Installation Wizard
The introduction of a step by step Installation
Wizard displayed on the MagIQtouch controller
to assist with commissioning. (NOTE: Installation
Wizard is only available with MagIQtouch
controllers).
FAULT MANAGEMENT
• Fault display
Displayed with full explanation and service contact
details.
• Fault resolution
Service menu assists with diagnosing faults,
troubleshooting instructions, and retrieving
component information.
• Component testing
Service Operating Screen provides full control of
all water management components on a single
screen, making testing easier.
• Removing/Replacing MagIQtouch products
Automatic detection & step by step on screen
instructions.
USER OPERATION
• Clearer, more intuitive touch screen interface for
easy operation
• New operation features (e.g. 7 day program)

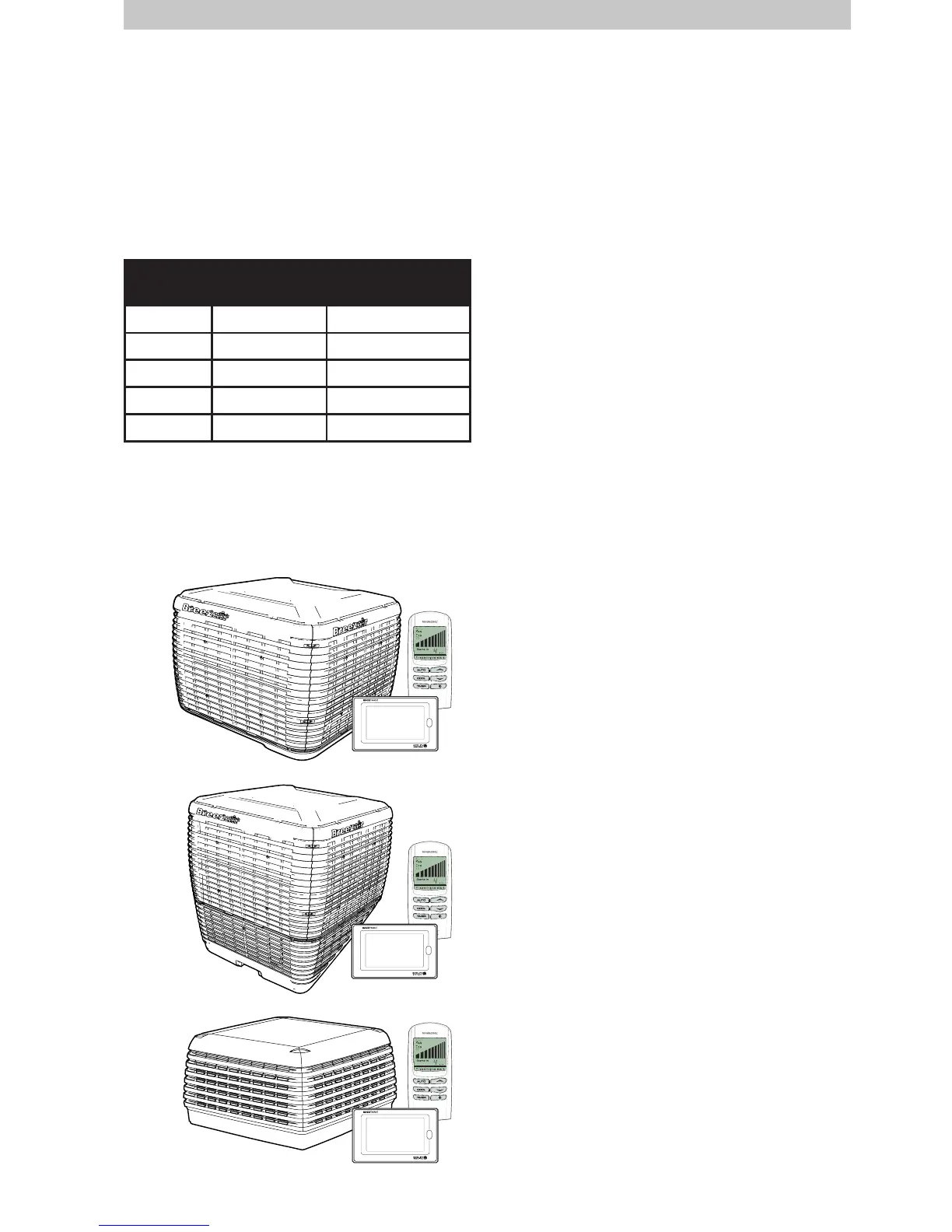

ILL1672-A ILL1674-B
ILL1674-B
ILL1674-BILL1673-A
ILL1456-B
Previous
Model
New Model Default Wall
Control
EXH EXQ, EXS MagIQtouch
EZH EZQ MagIQtouch
LCB LCQ, LCS MagIQtouch
CPL CPQ MagIQcool
BM BMQ MagIQcool
ILL1674-B
The MagIQcool controller has all the features
of older wall controls, but can connect to
RJ12 controls used in MagIQtouch coolers.
It is offered as an entry level controller for
evaporative cooler installations.
ILL1456-B
