MAGIQTOUCH & MAGIQCOOL MODELS
MOUNTING A LINK MODULE IN
ENCLOSURE
Drill out 4 mounting holes located inside the
enclosure.
Mount the enclosure as required using the 4
mounting holes.
If mounting in an exposed or humid location,
ensure that the cable glands are facing
downwards.
Caution! Extra low voltage communication
cable should be located away from
power cables. Cross power cables
perpendicularly, never run alongside.
Cover screw heads with the provided caps to
seal the enclosure.

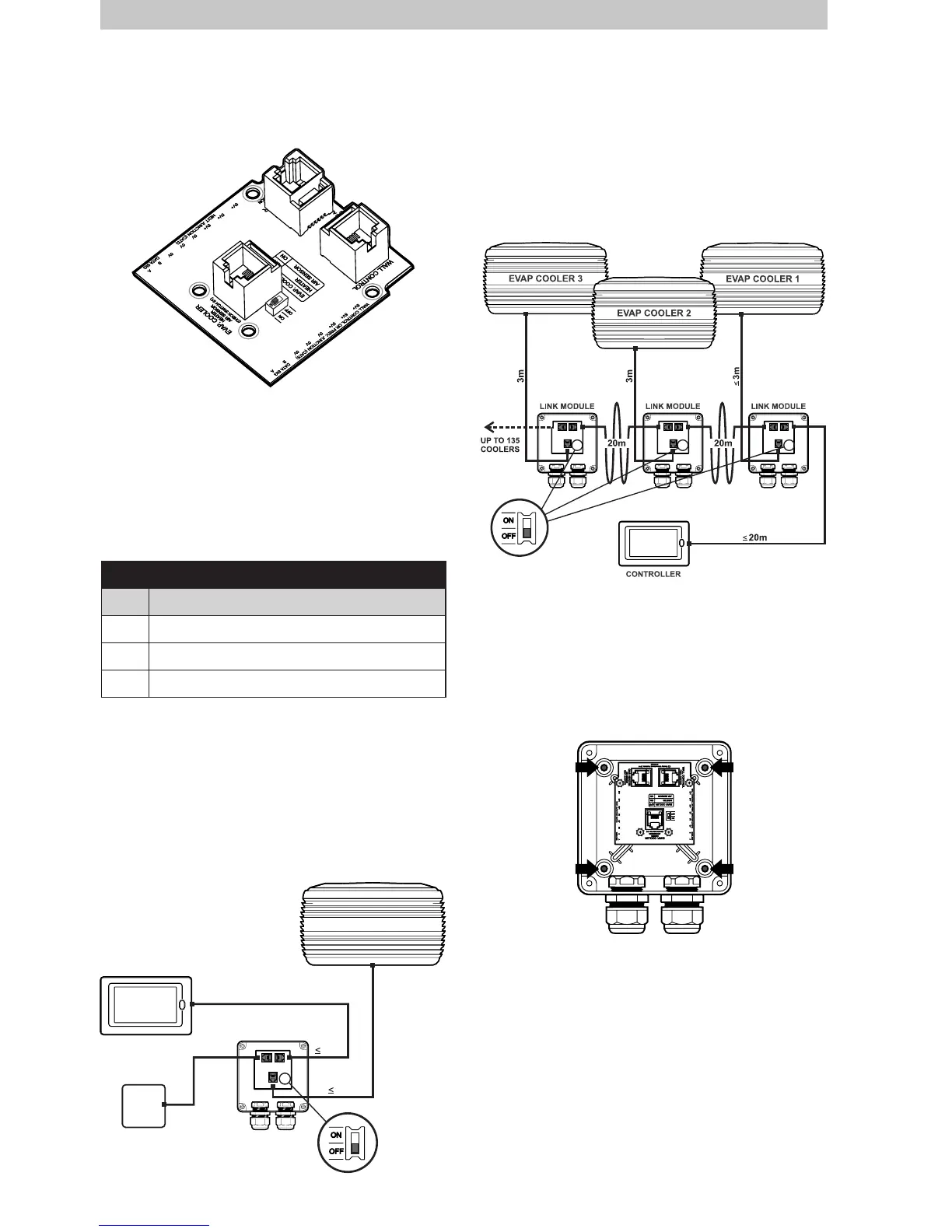

MAGIQTOUCH LINK MODULE
The MagIQtouch Link Module is a small
“T-junction” electronics board, mounted in
its own waterproof enclosure, which is used
to connect multiple MagIQtouch products
together.
094274
MagIQtouch Link Module in Enclosure
Contents
Qty Description
1 MaglQtouch Link Module in Enclosure
1 Communication Cable (3m)
1 Literature
ILL1790A
No Link Module is required for a simple 1
cooler, 1 controller installation.
However, Link Modules are required in the
following scenarios:
Scenario A
1 x MagIQtouch Air Sensor requires 1 x Link
Module.
20m
20m
3m
EVAP COOLER
CONTROLLER
AIR SENSOR
LINK MODULE
ILL1758-B
Scenario B
Multiple cooler installations require 1 x Link
Module per cooler (i.e. 3 x coolers requires 3 x
Link Modules).
ILL1751-A
ILL1759-C
To Next Page
