SEQUENCER CONTROLLER
WITH OR WITHOUT
DIFFERENTIAL PRESSURE SWITCH
Technical notice
FI 72.0297.1016E
Page 14

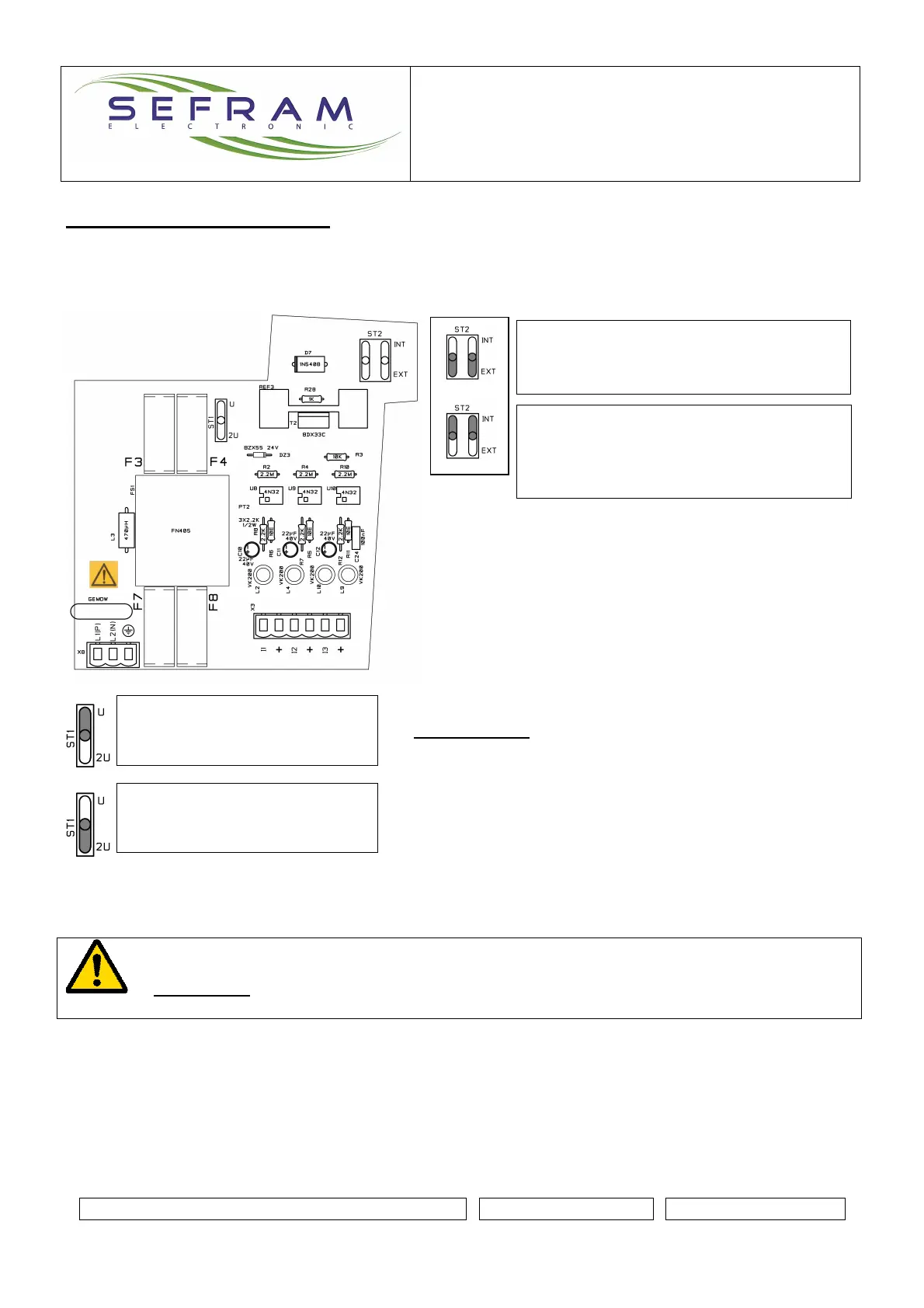

VOLTAGE ADJUSTMENT
- The SF6-36V2 leaves our workshops with the jumper positioned for use in 230VAC (unless stated when
ordering). Check the position of the jumper according to the mains voltage:
WARNING : If the supply voltage and /or solenoid valve voltage is modified, the
manufacturing plate on the box must be updated.
JUMPER POSITION
FOR A SUPPLY
IN
230VAC
JUMPER POSITION
FOR A SUPPLY
IN
115VAC
JUMPERS POSITION
For SV outputs in:
24VAC internal OR 24VDC internal
48VAC internal OR 48VDC internal
JUMPERS POSITION
For SV outputs in:
voltage=sequencer supply voltage
IMPORTANT:
If you have to change the
supply, the device must be de-energised
and
fuses F3 and F4 must be adapted (see
previous). In this case use the fuses attached
to the device.
