SEQUENCER CONTROLLER
WITH OR WITHOUT
DIFFERENTIAL PRESSURE SWITCH
Technical notice
FI 72.0297.1016E
Page 15

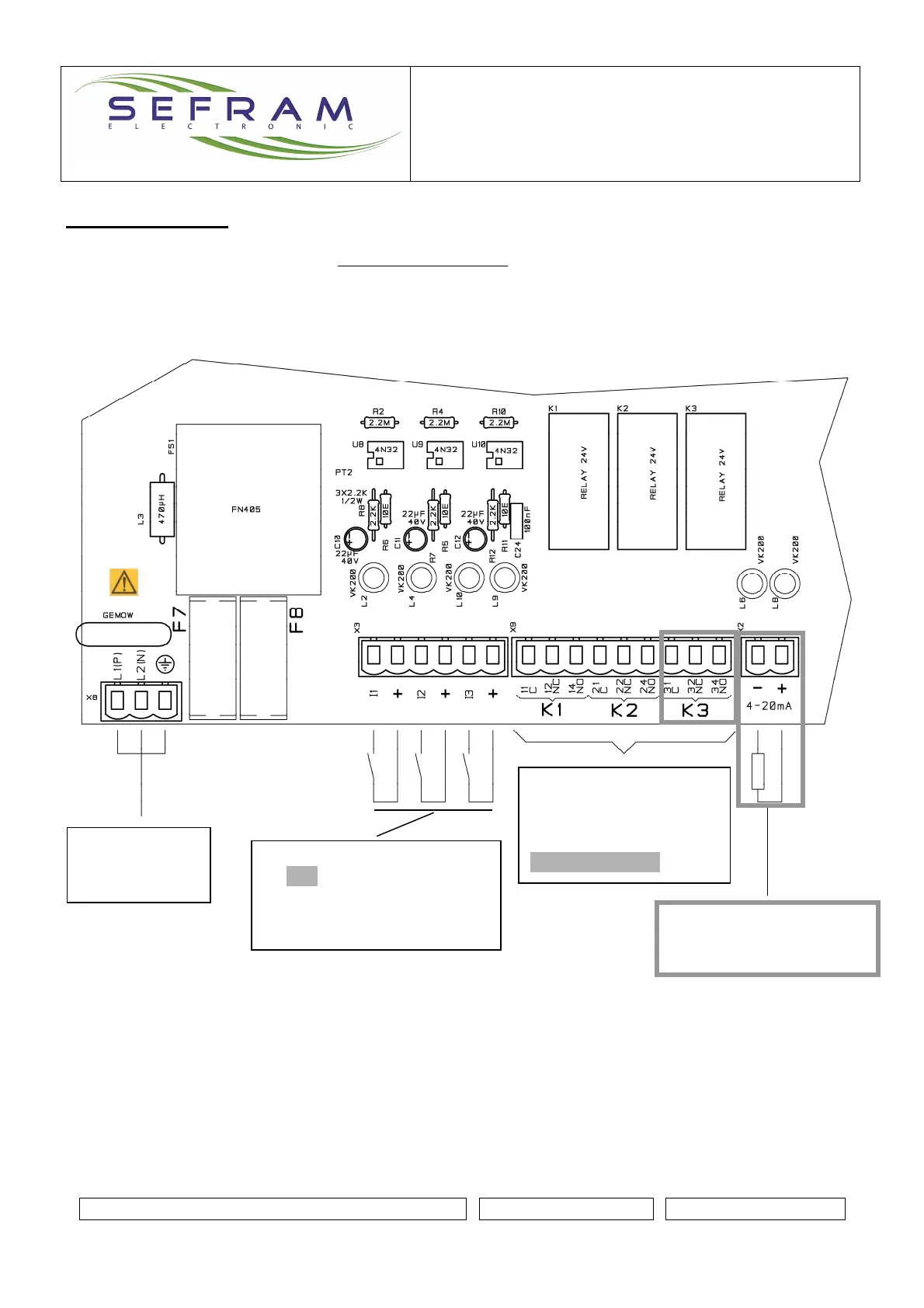

CONNECTIONS
The connections must be made when de-energised/dead.
The connection terminals are accessible after dismantling of the front face.
Depending on the configuration of the device, certain terminals may not be operationals
Cables conducting will be supple and will have a section included between 0,5 and 1,5 mm
2
.
Supply
115V or 230v
50/60Hz
INPUTS
I1: T2A or DP loop control if no
DP card
I2: compressed air
I3: fan loop control or other
INFORMATION
OUTPUTS
K1: general fault
K2: running response
K3: high alarm DP
4-20mA output
For recorder, indicator, etc.
