Manual MRG3 SEG Electronics GmbH
DOK-TD-MRG3, Rev. D 15

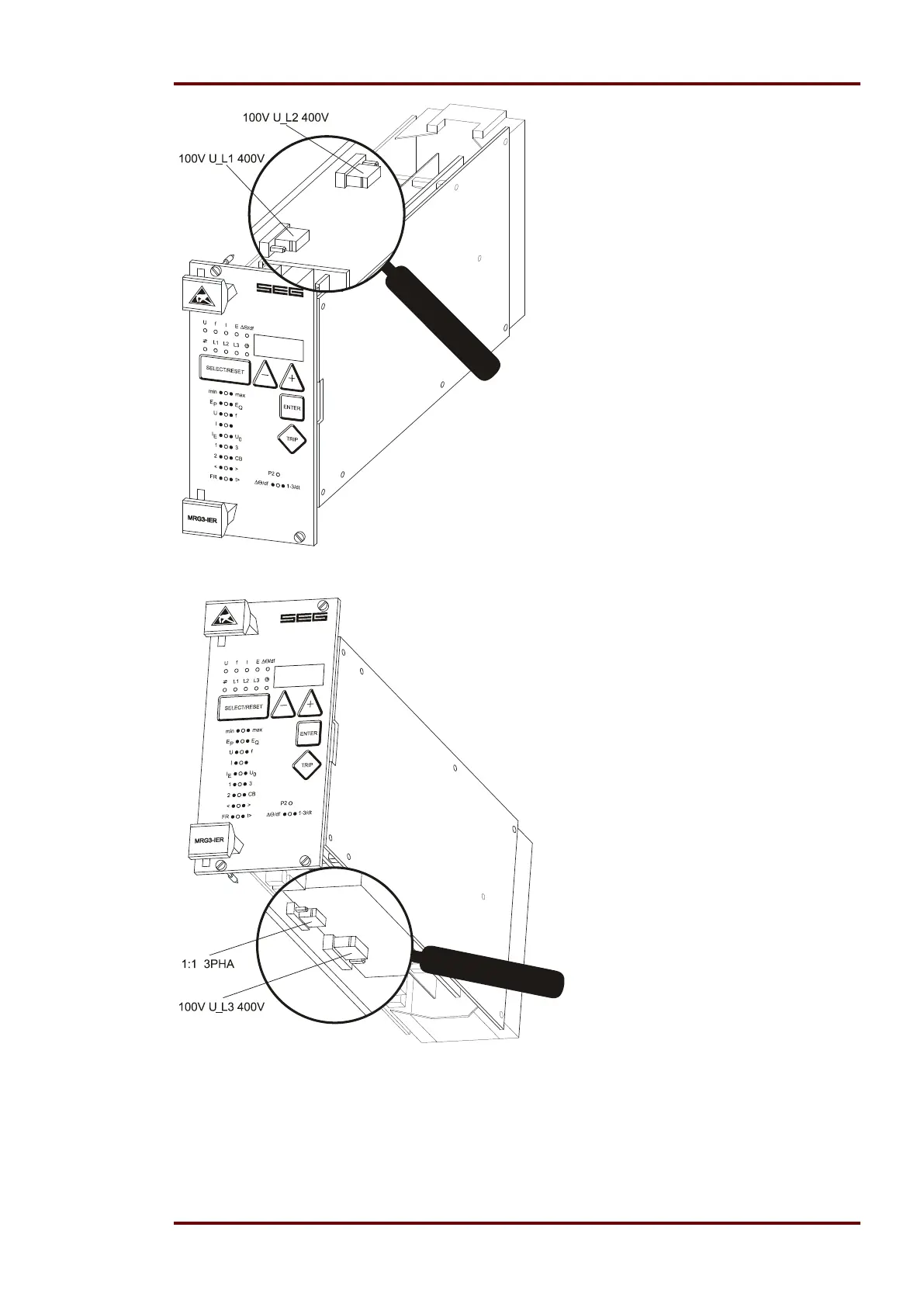

Figure 3.9: Change over to/of measuring range for phase voltages phase l1 and L2
Figure 3.10: Change-over to/of measuring range for phase voltage Phase L3. Selection of the measuring method to
be used for residual voltage.
