SEG Electronics GmbH Manual MRG3
8 DOK-TD-MRG3, Rev. D
3. Design
3.1 Connections
3.1.1 Connection Diagrams

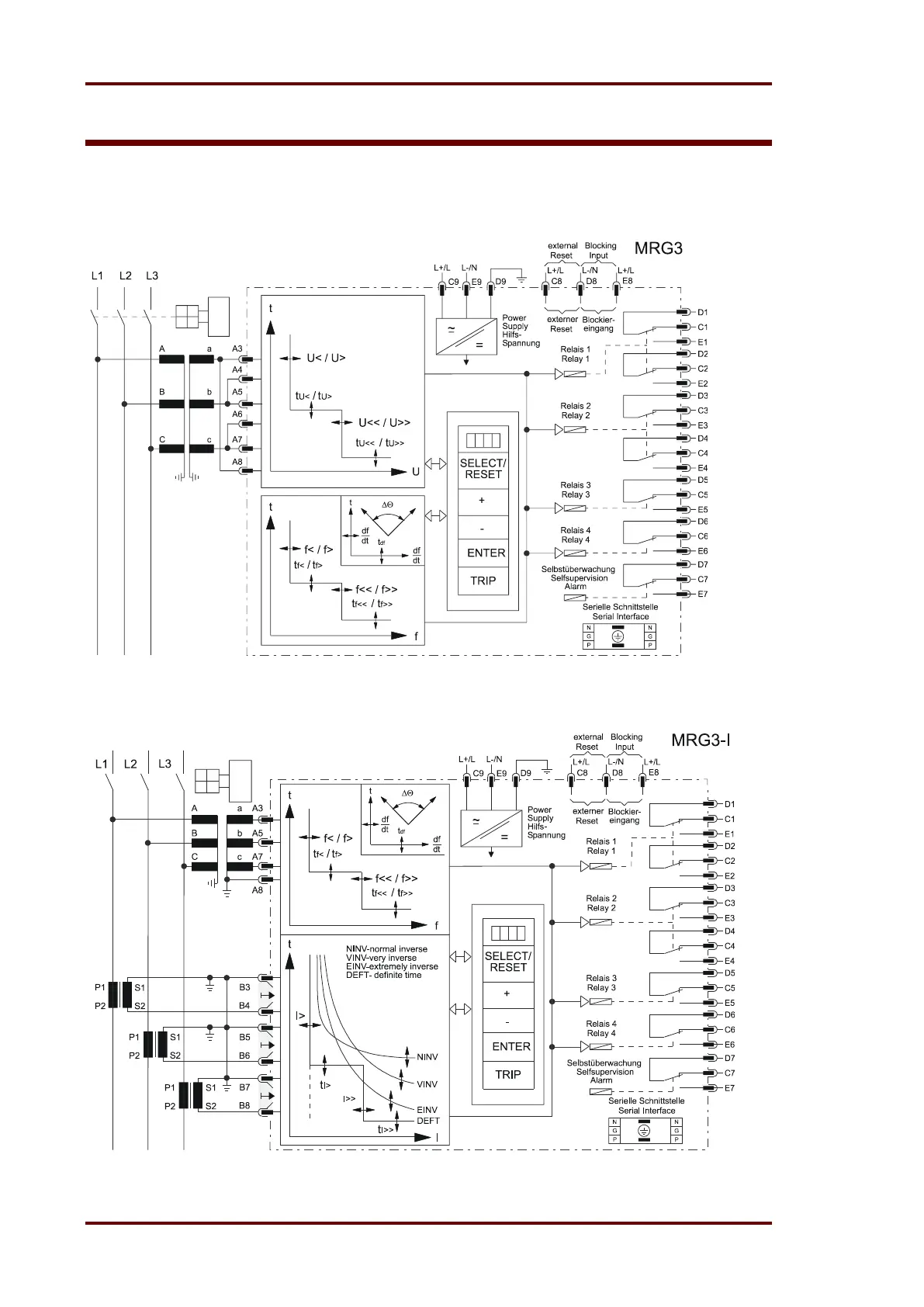

Figure 3.1: Connection diagram “Mains decoupling”
The measuring circuits can optionally be star- or delta connected (see chapter 4.3.1)
Figure 3.2: MRG3-I Connection diagram “Mains decoupling with time over current protection
