Manual MRG3 SEG Electronics GmbH
DOK-TD-MRG3, Rev. D 35

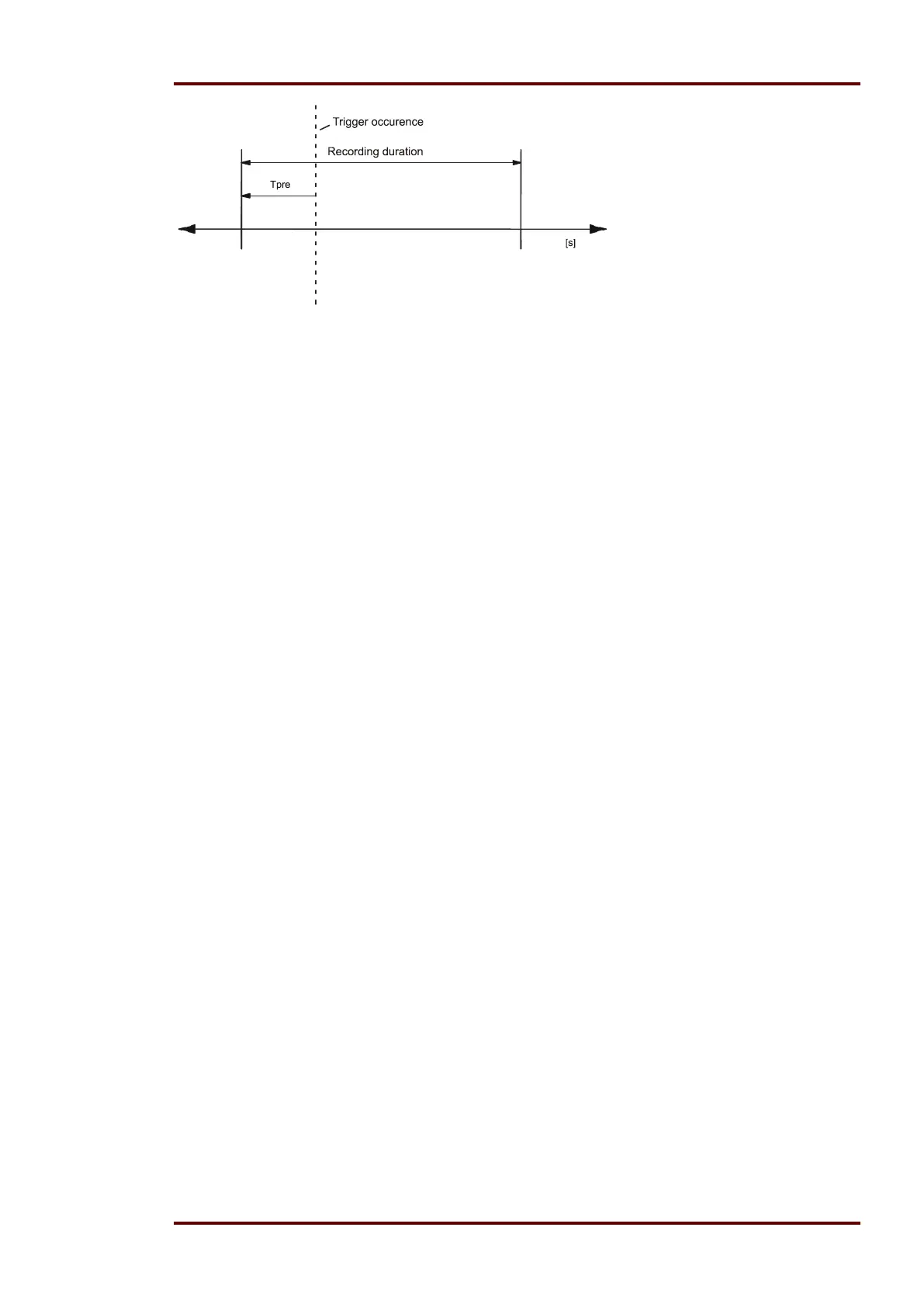

Figure 4.14: Basic set-up of the fault recorder
Each memory segment has a specified storage time which permits setting of a time prior to the
trigger event.
Via the interface RS485 the data can be read and processed by means of a PC (HTL/PL-Soft4).
The data is graphically edited and displayed. Binary tracks are re-corded as well, e.g. activation
and trip.
