Sega DRONE RACING GENESIS User Manual

16
ASSEMBLY AND INSTALLATION
6
6-1 INSTALLING THE MONITOR AND SEAT CABINET
2

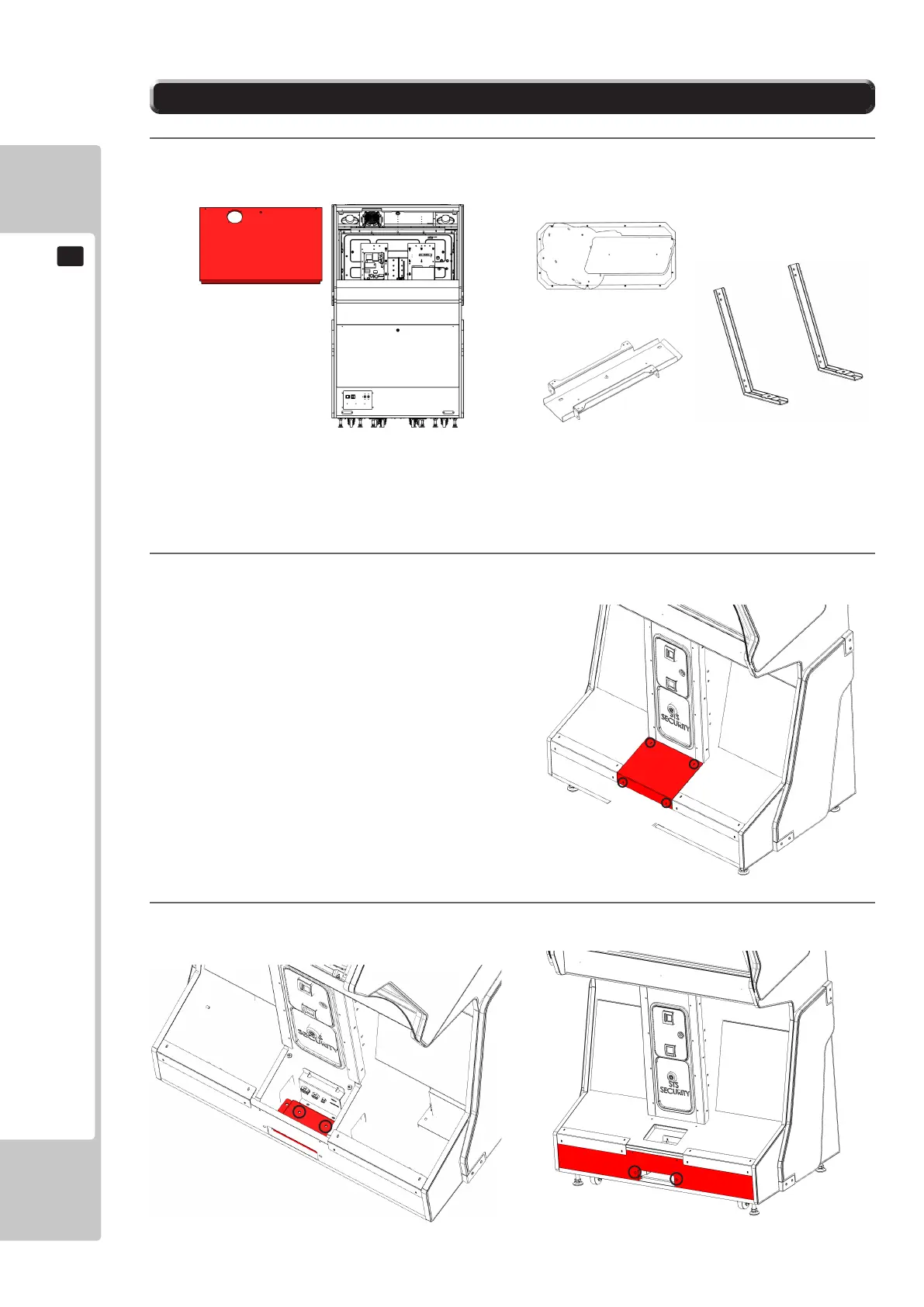

Remove the (4) M4x25 xings from the Plate Joint Bridge Access
1
Unlock and remove the Back Door Upper. Remove the Billboard, Billboard Brackets, and Joint Bridge from
the Rear of the Cabinet (the Billboard harnessing may need minor adjustment due to transit)
3
Remove the (4) xings that are located in situ on the Bracket Front Bridge Joint and the Front Cabinet
Billboard
Joint Bridge
Billboard
Brackets
