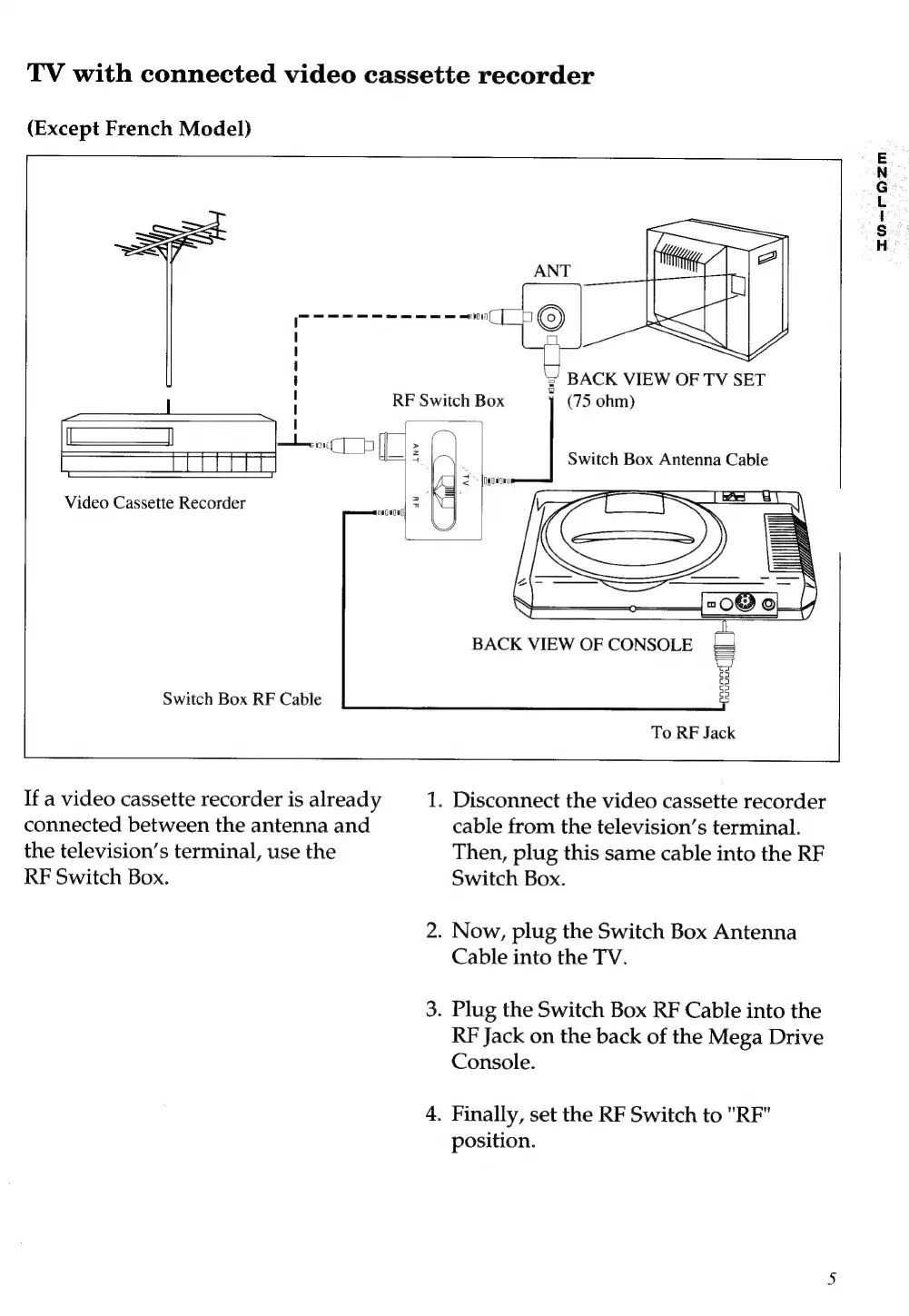

TV with connected video cassette recorder
(Except French Model)
—
ANT
a
ii)
|
X
z BACK VIEW OF TV SET
ps
| an
mn
RF Switch Box (75 ohm)
= a | Switch Box Antenna Cable
Video Cassette Recorder d A M Sri A
Switch Box RF Cable
To RF Jack |
If a video cassette recorder is already 1. Disconnect the video cassette recorder
connected between the antenna and cable from the television’s terminal.
the television’s terminal, use the Then, plug this same cable into the RF
RF Switch Box. Switch Box.
2. Now, plug the Switch Box Antenna
Cable into the TV.
3. Plug the Switch Box RF Cable into the
RF Jack on the back of the Mega Drive
Console.
4. Finally, set the RF Switch to "RF"
position.
