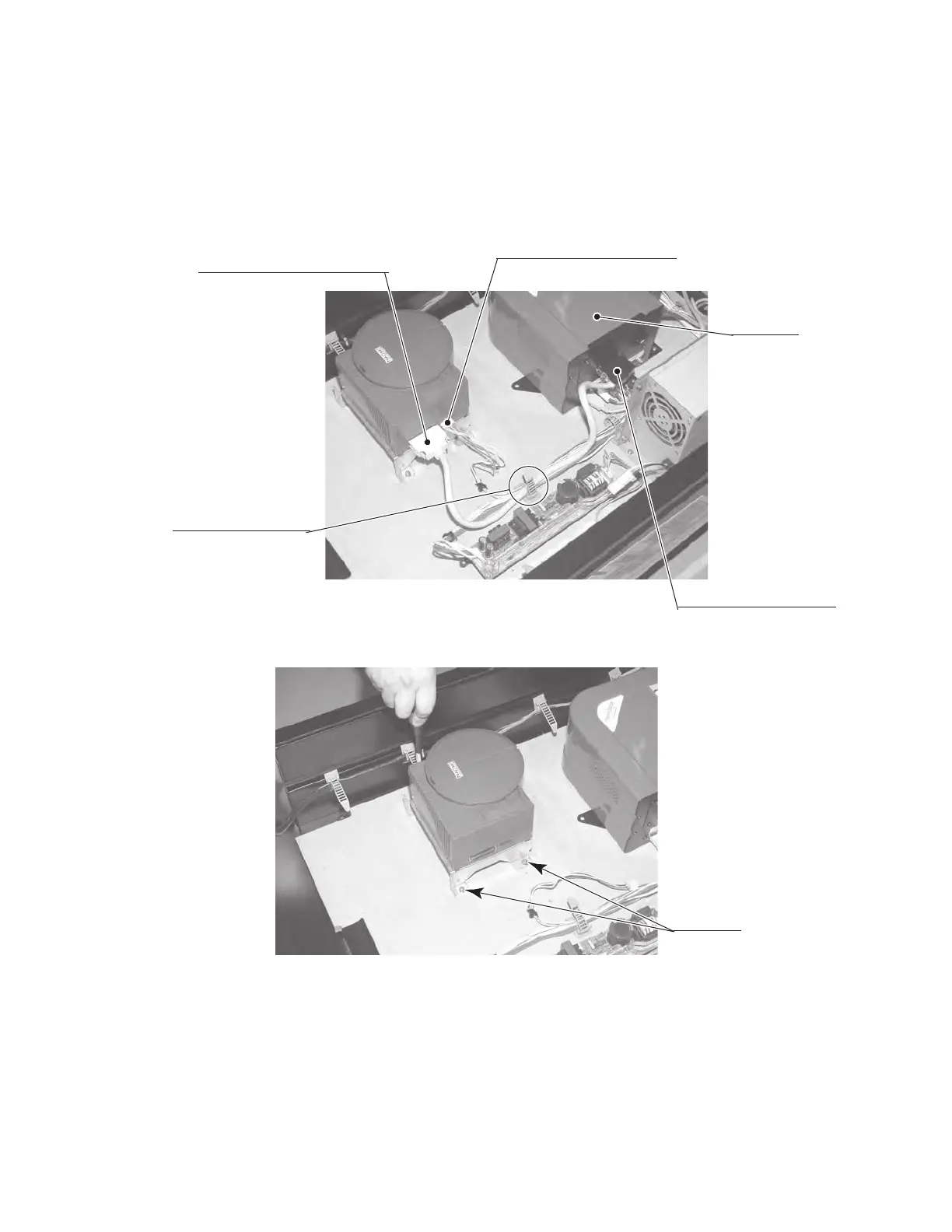

16-1 REMOVING THE GD-ROM DRIVE
●
T
urn the power off.
●
Open the game unit
TRIFORCE
Release the cables.
●
Remove the GD cable connector and the power cord connector from the GD-ROM drive.
GD CABLE CONNECTOR
POWER CORD CONNECTOR
JST NH6P
PHOTO 19. 1 a
GD CABLE CONNECTOR
●
Remove the 4 screws to remove the GD-ROM drive.
SCREW (3)
M4×16, w/flat & spring washers
PHOTO 19. 1 b
100
102
Table of Contents
Table of Contents
5
Introduction of the Owners Manual
6
Handling Precautions
9
Precautions Concerning Installation Location
11
Operation
13
Name of Parts
17
Accessories
18
Assembling and Installation
21
Precautions When Moving the Machine
31
Game Description
33
Explanation of Test and Data Display
59
Handle Mechanism
85
Shift Lever
88
Accel & Brakes(S)
90
Coin Selector
92
Monitor
95
Periodic Inspection Table
98
Game Board
100
Network Play
107
Design Related Parts
110
Parts List
111
Wire Color Code Table
119
