13. COIN SELECTOR

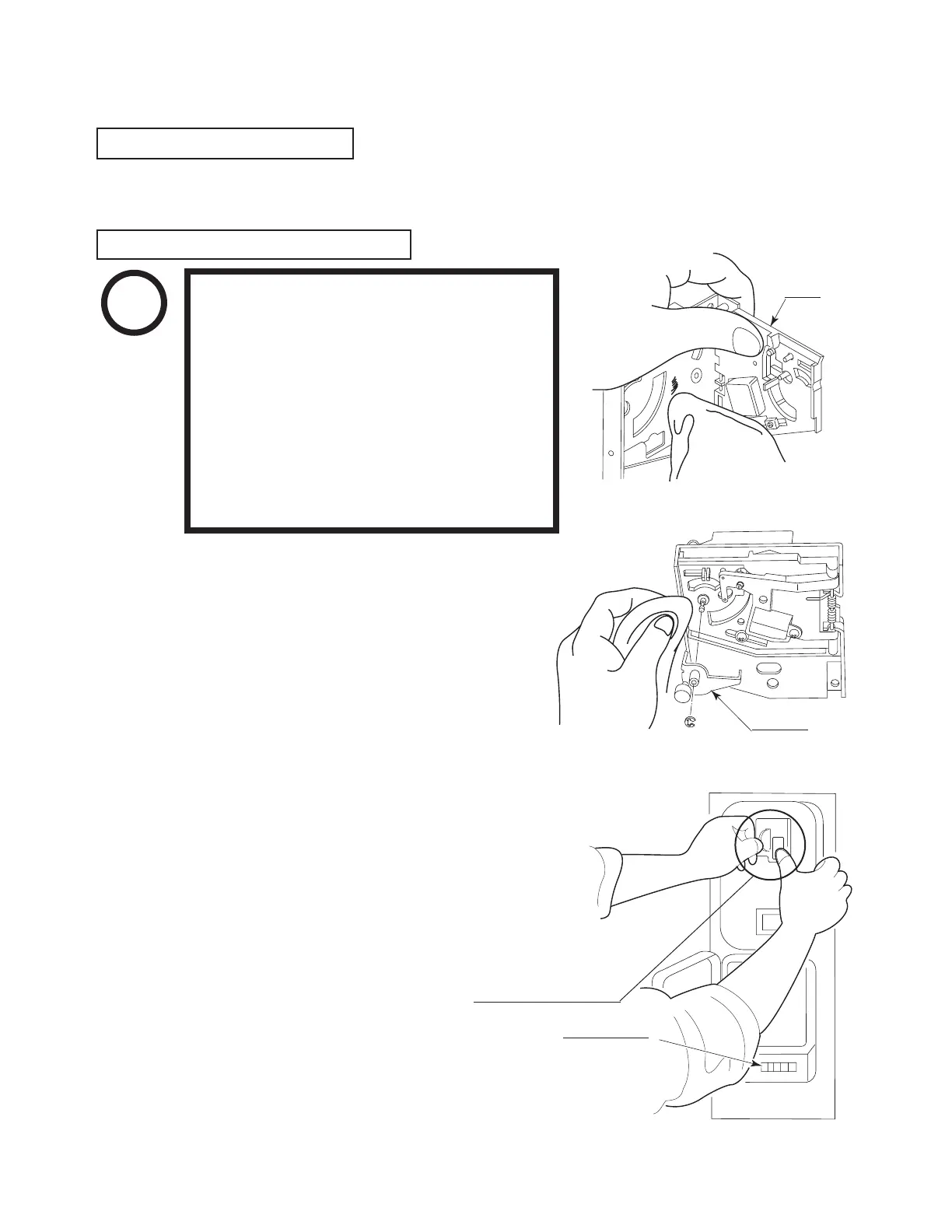

FIG. 14 b
FIG. 14 a
COIN INSERTION TEST
Once every month, when performing
the Coin SW Test, simultaneously
check the following:
FIG. 14 c
GATE
CRADLE
● Remove and clean smears by using a
soft cloth dipped in water or diluted
chem
ical detergent and then squeezed
dry.
● Never apply machine oil, etc. to the
Coin Selector
.
● After cleaning the Coin Selector, insert
a regular coin in the normal working
status and ensure that the Selector cor-
rectly functions.
If the coin is not rejected when the REJECT button is pressed, open the coin chute door and
open the selector gate. After removing the jammed coin, put a normal coin in and check to see
that the selector correctly functions.
Insert a coin while keeping
the Reject Button pressed
down and check if it is
rejected.
COIN METER
(1) Turn the power for the machine OFF. Open the
coin chute door.
(2) Remove the coin selector from the coin chute door.
(3) Open the gate and dust off by using a soft brush
(made of wool, etc.).
(4)
Remove and clean smears by using a soft cloth
dipped in water or diluted chemical detergent and
then squeezed dry.
(5) Remove the CRADLE.
When removing the retaining ring
(E ring), be very careful so as not to bend the
rotary shaft.
(6)
Remove stain from the rotary shaft and shaft
receiving portions by wiping off with a soft cloth,
etc.
(7)
After wiping off as per (6) above, further apply
a dry cloth, etc. to cause the coin selector to dry
completely.
● Does the Coin Meter count satisfactorily?
● Does the coin drop into the Cashbox correctly?
● Is the coin rejected when inserted while keeping the
Reject Button pressed down?
The coin selector should be cleaned once every 3 months.
When cleaning, follow the procedure below:
HANDLING THE COIN JAM
CLEANING THE COIN SELECTOR
STOP
IMPORTANT!
