78
www.sauservice.com
1
2
Turn off the power.
Disconnect the connector.
Take out the 2 screws which secure the volume Bracket and remove the Volume Bracket.
Take out the 2 screws to remove the Volume Gear and replace the Volume.
After replacing the Volume, perform Volume setting in the Volume Setting Mode.
3
4
5
ADJUSTING THE VOLUME

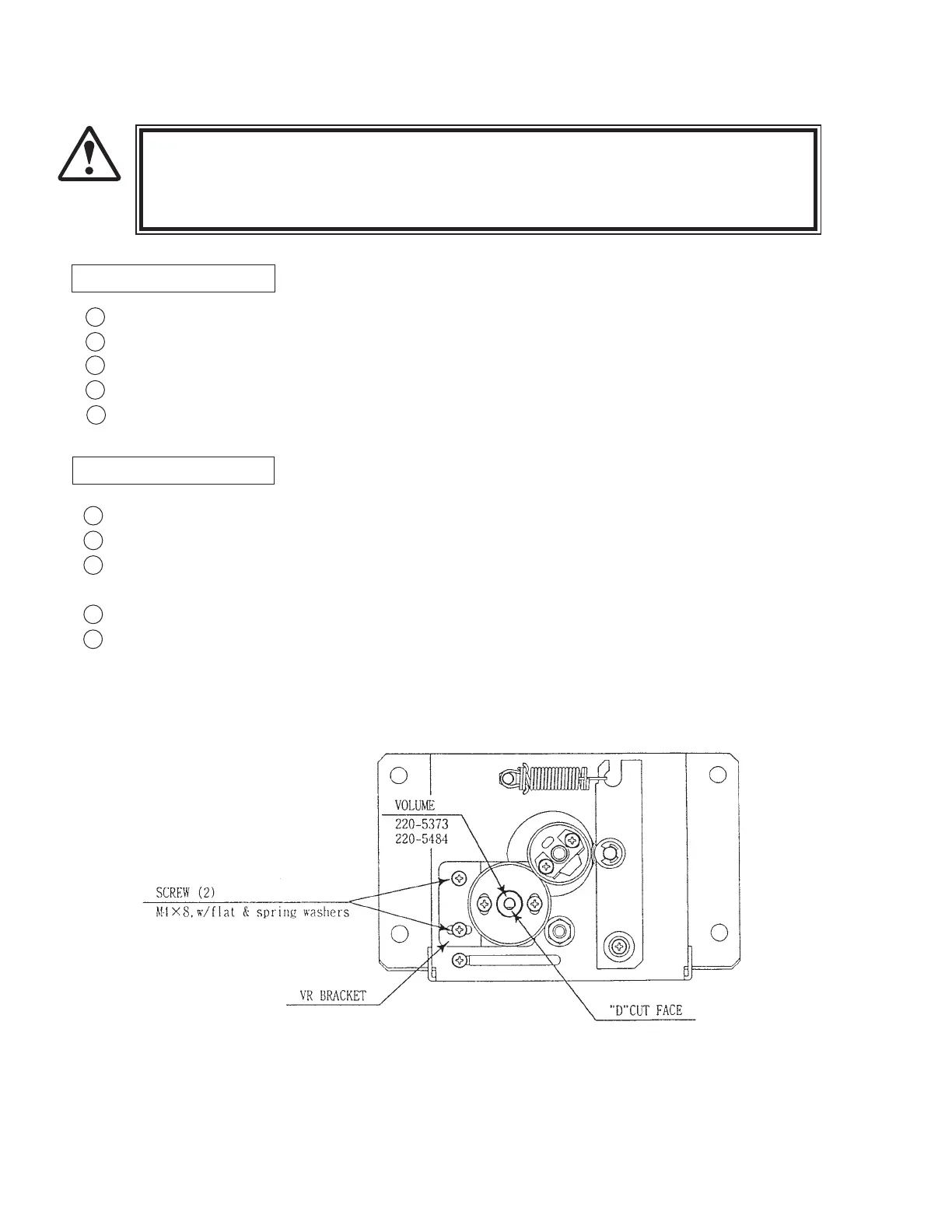

10 - 2 REPLACING AND ADJUSTING THE HANDLE’S VR
● Never touch places other than those specified. Touching places not specified can cause electric
shock and/or short circuit.
● After the replacement or adjustment of the VR, be sure to set the variable value of the VR in the
test mode’s Volume Setting.
REPLACING THE VOLUME
1
2
In the Test Mode, have the Volume value indicating screen displayed.
Loosen the 2 screws which secure the Volume Bracket to disengage Gear Mesh.
With the Steering Wheel in the centering position, cause gears to be engaged in the manner so that the Volume
Shaft is in the status shown below.
Fasten screws which secure the Volume Bracket.
Perform Volume setting as per the Volume Setting Mode.
3
4
5
WARNING!
To Next Page
