Sega Virtua Fighter 4 Evolution - Wiring and Speaker Diagrams

6
www.seuservice.com
7
www.seuservice.com
Sega Naomi System Switch
Bracket and Speaker
Installation Diagrams

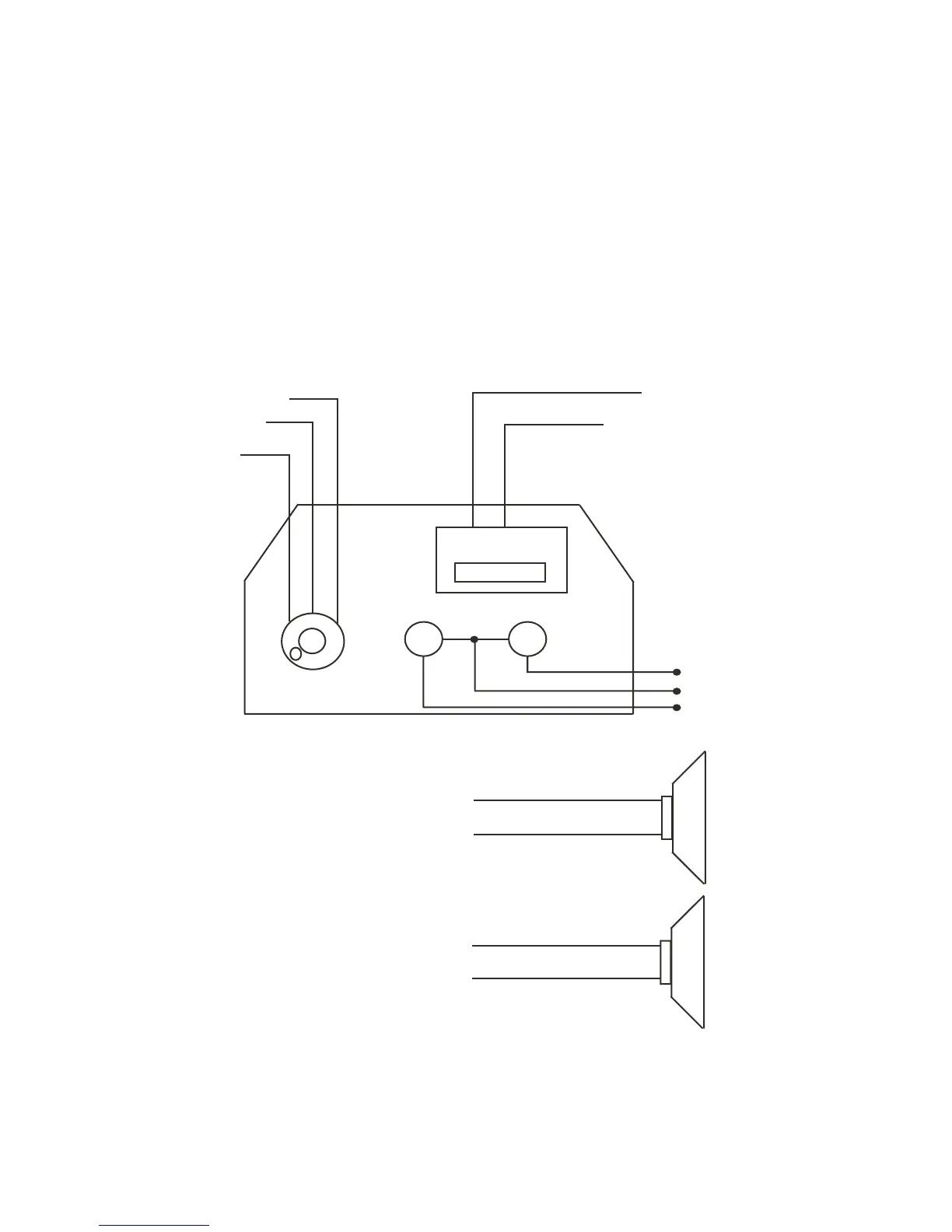

(Figure 3)
Coin Meter
Test
Service
Volume
JAMMA Pin R
JAMMA Pin 15
JAMMA Pin 1
Yellow Wire from Extra
Harness (+5v)
JAMMA Pin 8
+
_
Pin 1
Pin 5
Pin 4
To CN1 of
Amplifier Board
YEL/RED
WHT/RED
GRN/RED
From CN2 of
Amplifier Board
From CN4 of
Amplifier Board
GRY/RED
ORG/RED
ORG/BLUE
GRY/BLUE
Left
Speaker
Right
Speaker
