Quick Installation Guide [en] 4
Technical Data
Properties Values
Network connection
logical:
physical:
IEEE 802.3 (1000BaseT, 100BaseTX and 10BaseT)
• 2 × RJ-45 (STP, categorie 5 or better)
• Connector 1: primary network connection
• Connector 2: secondary network connection
(backup)
Device connection • 5 × USB 3.0 SuperSpeed (USB ports 1-5)
• 15 × USB 2.0 Hi-Speed (USB ports 6-20)
Power connection 2 × power connection, each
• 100–240 V alternating current
• 1.3 A max.
Power consumption • approx. 5.5 W without USB dongles
• approx. 13 W with 20 USB dongles
• typ. approx. 114 kWh/year
Operating environment ambient temperature: 5–40 °C
relative humidity: 20–80 %

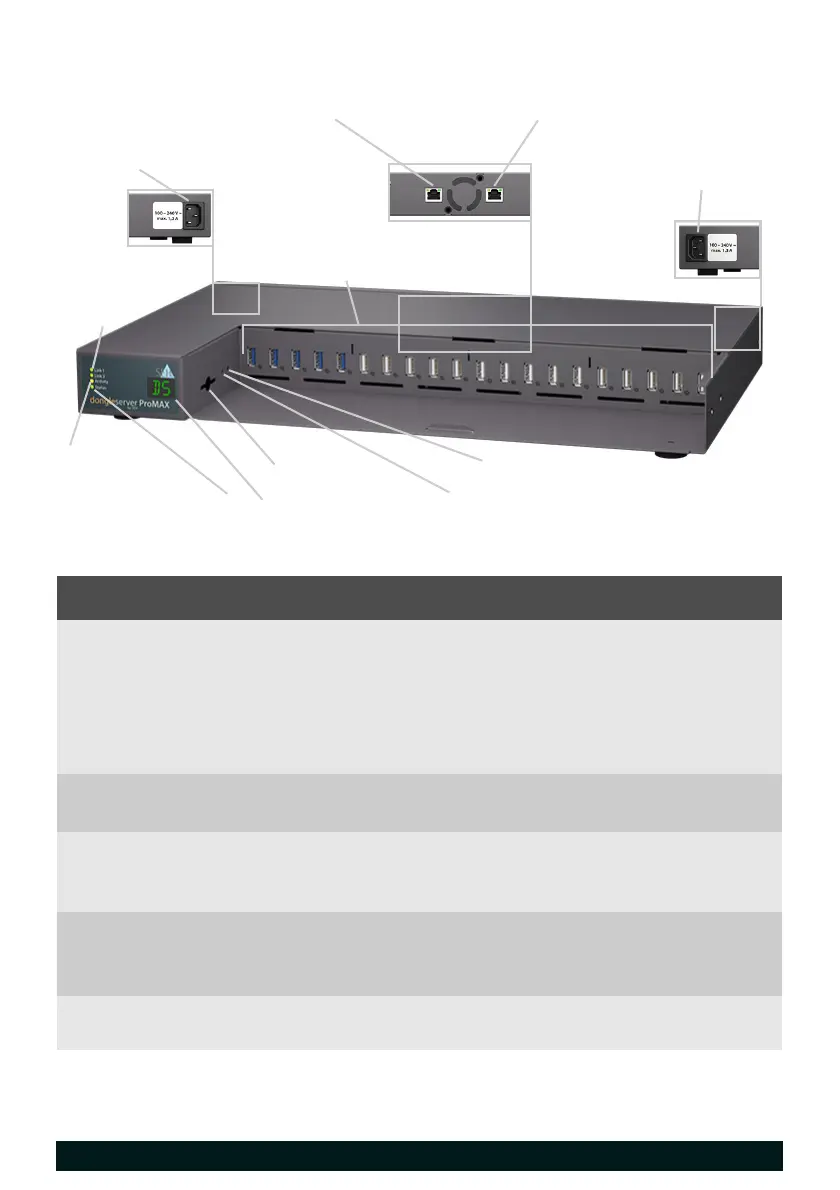

activity LED
(yellow)
status LED
(green)
USB ports 1-20
with LED for the USB port
restart button
20
1
reset button
connector for
power supply 2
(at the rear side)
network connector 1
(RJ-45)
(at the rear side)
link LED
(green)
connector for
power supply 1
(at the rear side)
network connector 2
(RJ-45)
(at the rear side)
SD card reader
display panel
