SEI Industries BAMBI BUCKET SMALL Series User Manual

22
7) Insert the end of the trip line through the large center
hole of the drum. See Fig. 26.
13. CONTROL HEAD MAINTENANCE
3) Use a small screwdriver through the hole in the spring
reel drum to remove the end of the tripline from the locking
finger. See Fig. 29.
Winding the Spring Reel
If the spring reel tension has been released, the reel must
be re-wound before the new tripline is installed.
4) Wind the spring reel in the direction indictated by the
arrow stamped on the cover to its maximum, then back
off until the three holdes in the reel are positioned at the
top (Approx. one full turn). Secure reel as per 2) above.
Install New Tripline
5) Pass the trip line through the hole in the trip block
as shown in Fig. 24.
6) Bend the end of the trip line into a tight spiral using a
pair of pliers. See Fig. 25.

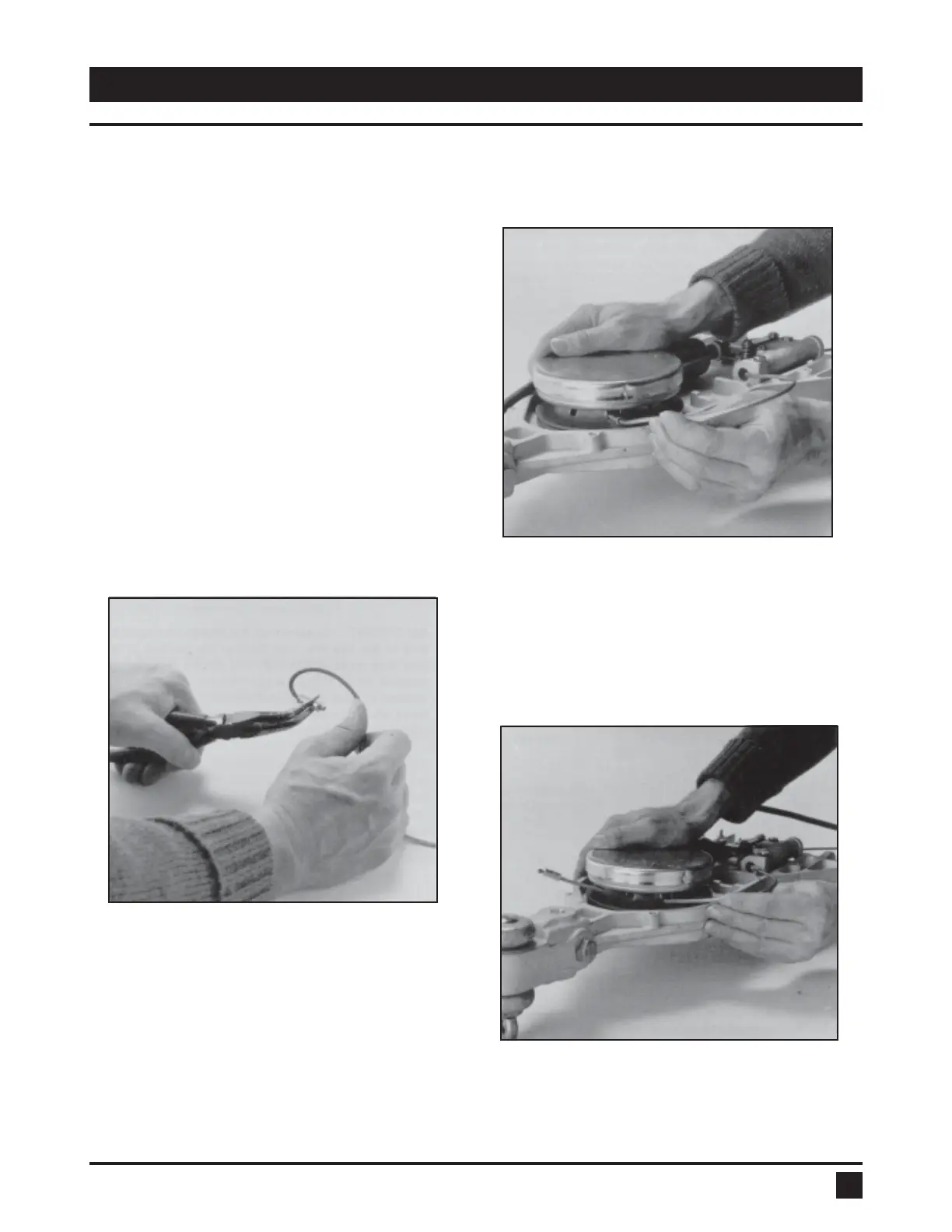

Fig. 25: Bend the end of the trip line into a tight spiral.
Fig. 26: Insert the end of the trip line.
8) Fish the trip line out through the small hole to the left
of the center hole with needle nose pliers. See Fig. 27.
9) Pull 12"-14" (30-35 cm) of line from the hole and pull
Fig. 27: Fish the trip line out.
