Seiko 7D56A - Page 27

27/44
7D56A

Technical Guide
No. 7
No.

PROCESS

ILLUSTRATION AND SPECIAL INSTRUCTIONS



27
Assemble the
PIEZOELECTRIC
MOTOR COVER.


26
Tighten the
PIEZOELECTRIC
MOTOR COVER
SCREW.




Push the crown back
to the original position.

































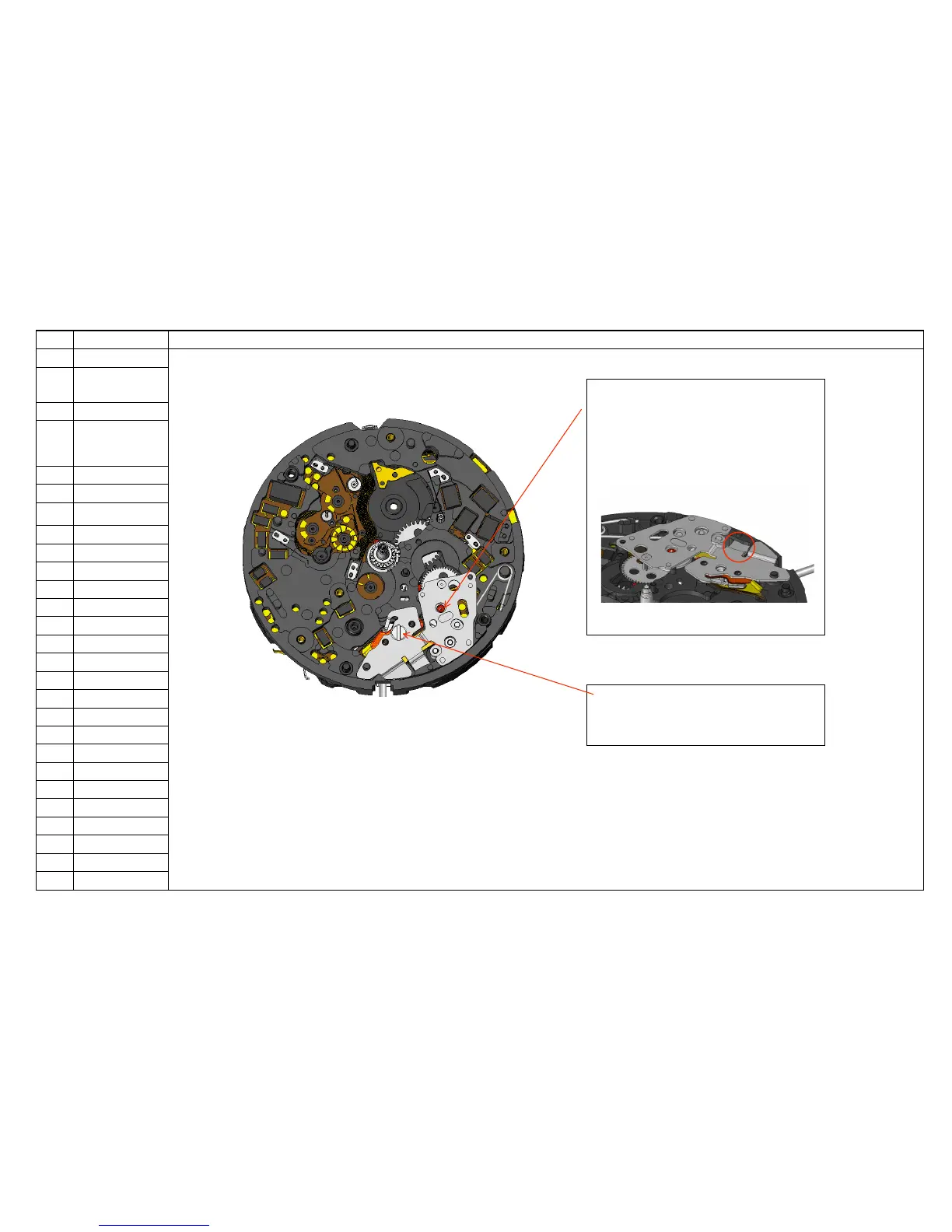

<27> Assemble the PIEZOELECTRIC MOTOR
COVER.
Insert the “a” portion of the cover to the slot
of the plate and make sure that the pivot of
the rotor falls to the pivot hole
(see Fig.7-1).
<26> Tighten the PIEZOELECTRIC
MOTORCOVER SCREW.
“a” portion
Fig. 7-1
