Seiko LSW-27BLK User Manual

23

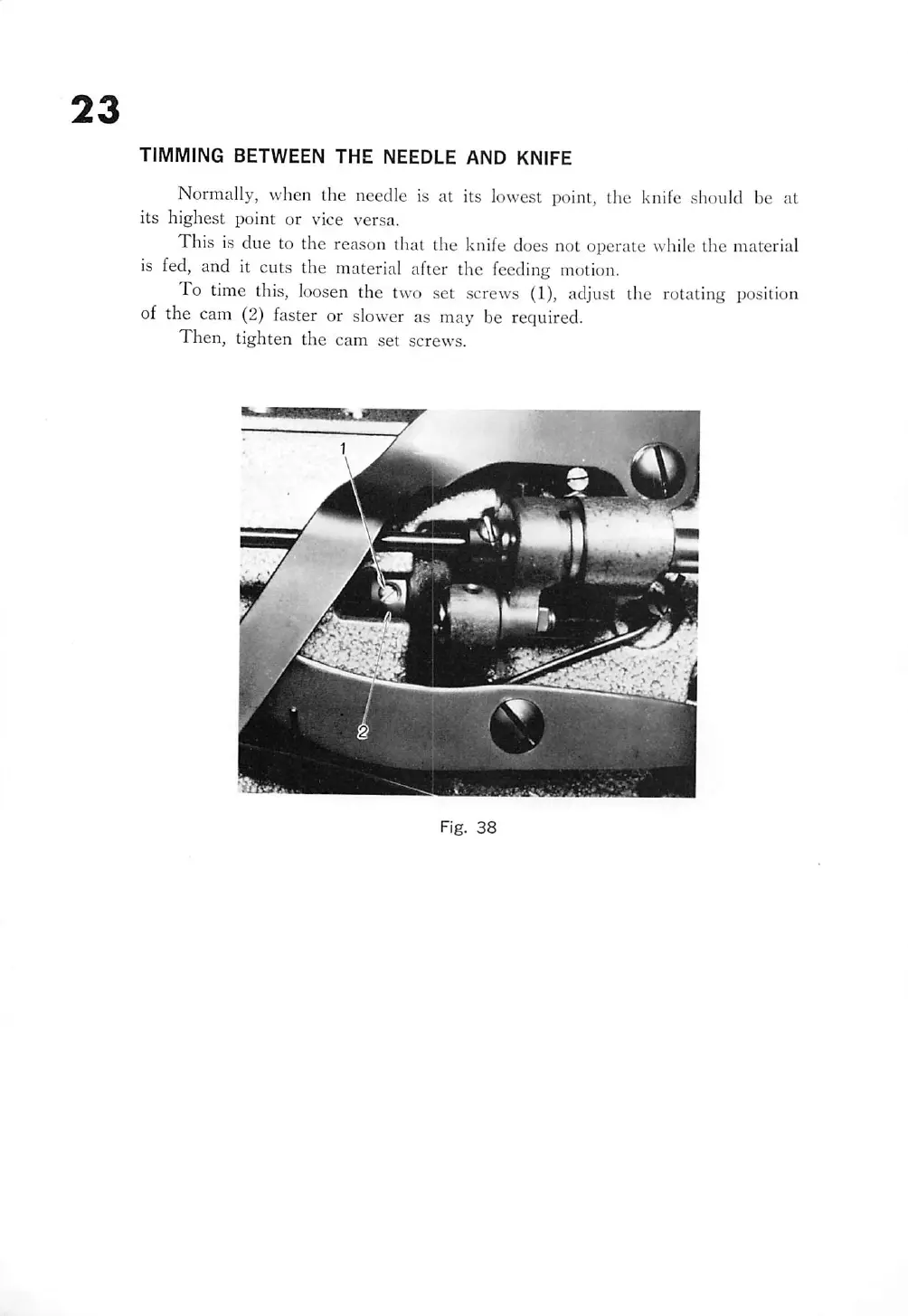

TIMMING BETWEEN THE NEEDLE AND KNIFE
Normally, when the needle is at its lowest point, liie knife should be at
its highest point or vice versa.
This is due to the reason that the knife does not operate while the material
is fed, and it cuts the material after the feeding motion.
To time this, loosen the two set screws (1), adjust the rotating position
of the cam (2) faster or slower as may be required.
Then, tighten the cam set screws.
; f rv
Fig. 38
From the library of: Superior Sewing Machine & Supply LLC

Seiko LSW-27BLK Specifications

General

Brand	Seiko
Model	LSW-27BLK
Category	Sewing Machine
Language	English
