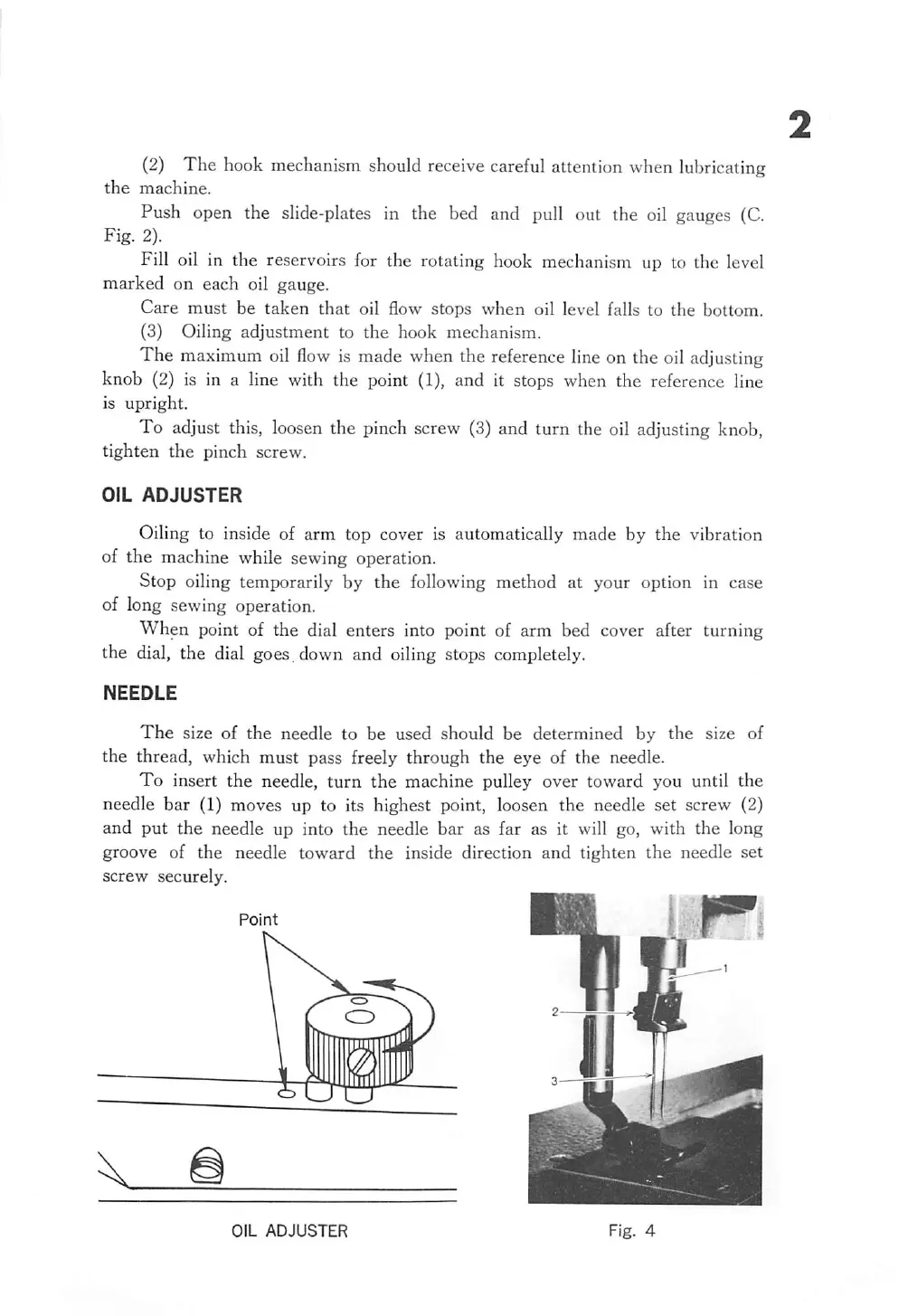

(2) The hook mechanism should receive careful attention whenlubricating
the machine.
Push open the slide-plates in the bed and pull out the oil gauges (C.
Fig. 2).
Fill oil in the reservoirs for the rotating hook mechanism up to the level
marked on each oil gauge.
Care must be taken that oil flow stops when oil level falls to the bottom.
(3) Oiling adjustment to the hook mechanism.
The maximum oil flow is made when the reference line on the oil adjusting
knob (2) is in a line with the point (1), and it stops when the reference line
is upright.
To adjust this, loosen the pinch screw (3) and turn the oil adjusting knob,
tighten the pinch screw.
OIL ADJUSTER
Oiling to inside of arm top cover is automatically made by the vibration
of the machine while sewing operation.
Stop oiling temporarily by the following method at your option in case
of long sewing operation.
When point of the dial enters into point of arm bed cover after turning
the dial, the dial goes, down and oiling stops completely.
NEEDLE
The size of the needle to be used should be determined by the size of
the thread, which must pass freely through the eye of the needle.
To insert the needle, turn the machine pulley over toward you until the
needle bar (1) moves up to its highest point, loosen the needle set screw (2)
and put the needle up into the needle bar as far as it will go, with the long
groove of the needle toward the inside direction and tighten the needle set
screw securely.
OIL ADJUSTER Fig. 4
From the library of: Superior Sewing Machine & Supply LLC
