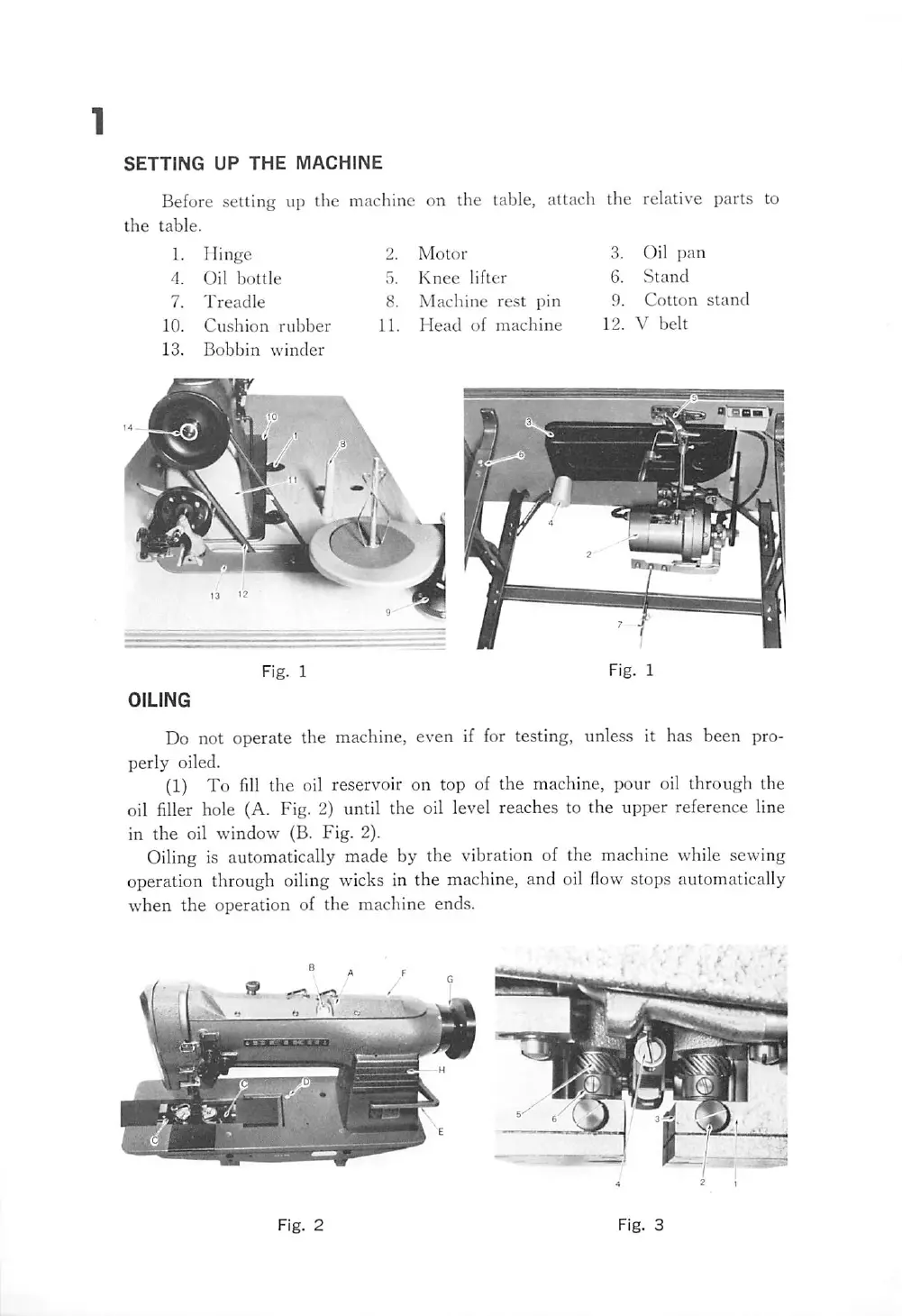

SETTING
UP
THE
MACHINE
Before setting up the machine on the table, attach the relative parts to
the
table.
1. Hinge 2. Motor 3. Oil pan
4.
Oil
bottle
5.
Knee
lifter
6.
Stand
7.
Treadle
8. Machine rest pin 9. Cotton stand
10.
Cushion
rubber
11.
Head
of
machine
12. V
belt
13.
Bobbin
winder
Fig.
1
Fig.
1
OILING
Do not operate the machine, even if for testing, unless it has been pro
perly oiled.
(1)
To
fill
the oil reservoir on top of the
machine,
pour oil through the
oil
filler
hole (A. Fig. 2) until the oil level reaches to the upper reference line
in
the
oil
window
(B.
Fig.
2).
Oiling is automatically made by the vibration of the machine while sewing
operation through oiling wicks in the machine, and oil
flow
stops automatically
when the operation of the machine ends.
Fig.
2
Fig.
3
