1
Unlock the key and remove the cover.
3
Insert wires into two left terminals for
the DCF unit, and tighten both screws.
4
Replace the cover and lock.
2
The connector for the DCF unit
signals is on the back of the Time
Stamp.
DCF
UNIT

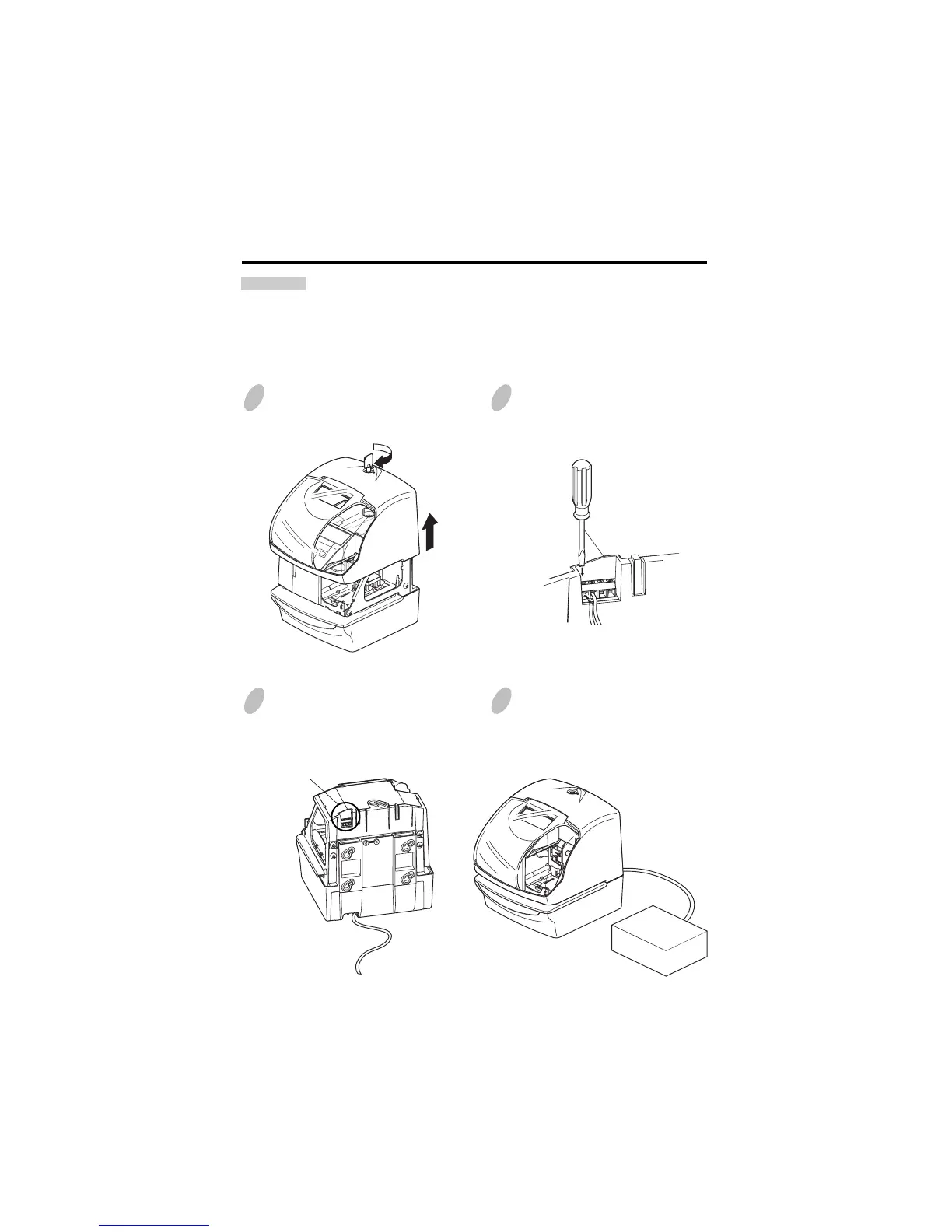

Connecting the DCF Unit
connector
CAUTION: Be sure to pull out AC cord from AC outlet before connecting wires of the
DCF Unit.
Improper connection may cause a malfunction of the unit.
Also refer to "Attaching the Wire Clamp" to secure wires with the wire
clamp.
