3. Installation

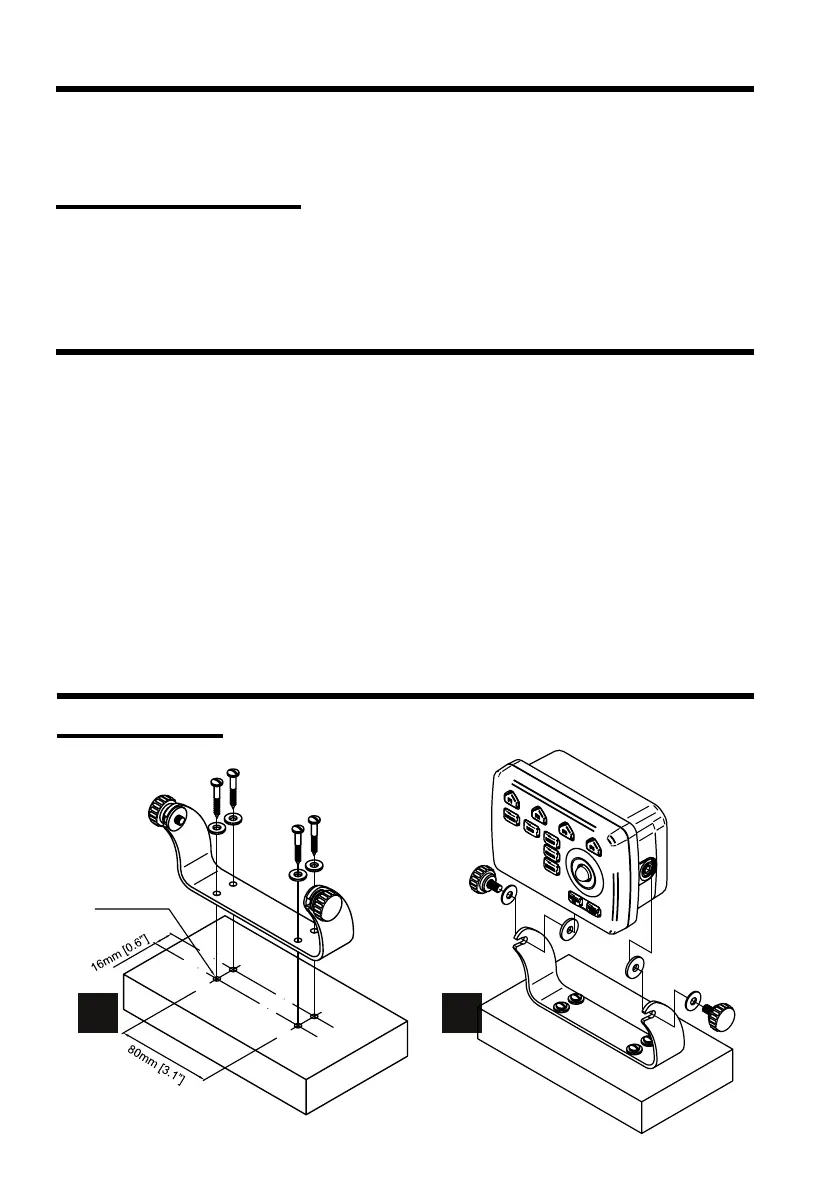

3.1 Bracket Mount
Ø5mm [Ø0.2”] - 4 pos.
1. Product description
EXPLORER 23 includes chartplotter and multifunction controller in a compact, robust blackbox
designed for shermen. EXPLORER 23 must be connected to an external monitor. It is available in
two versions: EXPLORER 23 and EXPLORER 23 WiFi.
1.1 Content of the package
• EXPLORER 23 with built-in HDMI cable
• Power supply + NMEA0183 cable
• Metal Mount with screws
2. Technical specifications
• Dimensions: 172.5 x 106.5 x 84.4 mm
(6.8’’ x 4.2’’ x 3.3’’) with holder
• Weight: 350 g (12.3 oz)
• Back-lit keyboard
• Integrated remote control receiver
(radio IF 2.4 Ghz)
• External GPS connector
• NMEA 2000
• NMEA 0183: 2x Rx/Tx on power cable
• External alarm
• Built-in HDMI video input cable
(compatible with any HDMI display)
• Memory slot: MicroSD
• Wireless LAN connection compatibility*
• Mounting options: Bracket and ush mount
• Waterproof IPX6
• Supply Voltage: 10-35 Vdc
• Operating temperature: -10°C / +60°C
• Storage temperature: -20°C / +80°C
• Transmitting frequency range: 2400 - 2483 MHz
• Maximum transmitting power: 1mW (or 100mW*)
• Maximum power consumption: 4W (or 6.5W*)
*EXPLORER 23 WiFi
