Seiwa EXPLORER 23 - Power & I;O Cable; 4.1 Power Supply Connection; 4.2 Autopilot Connections

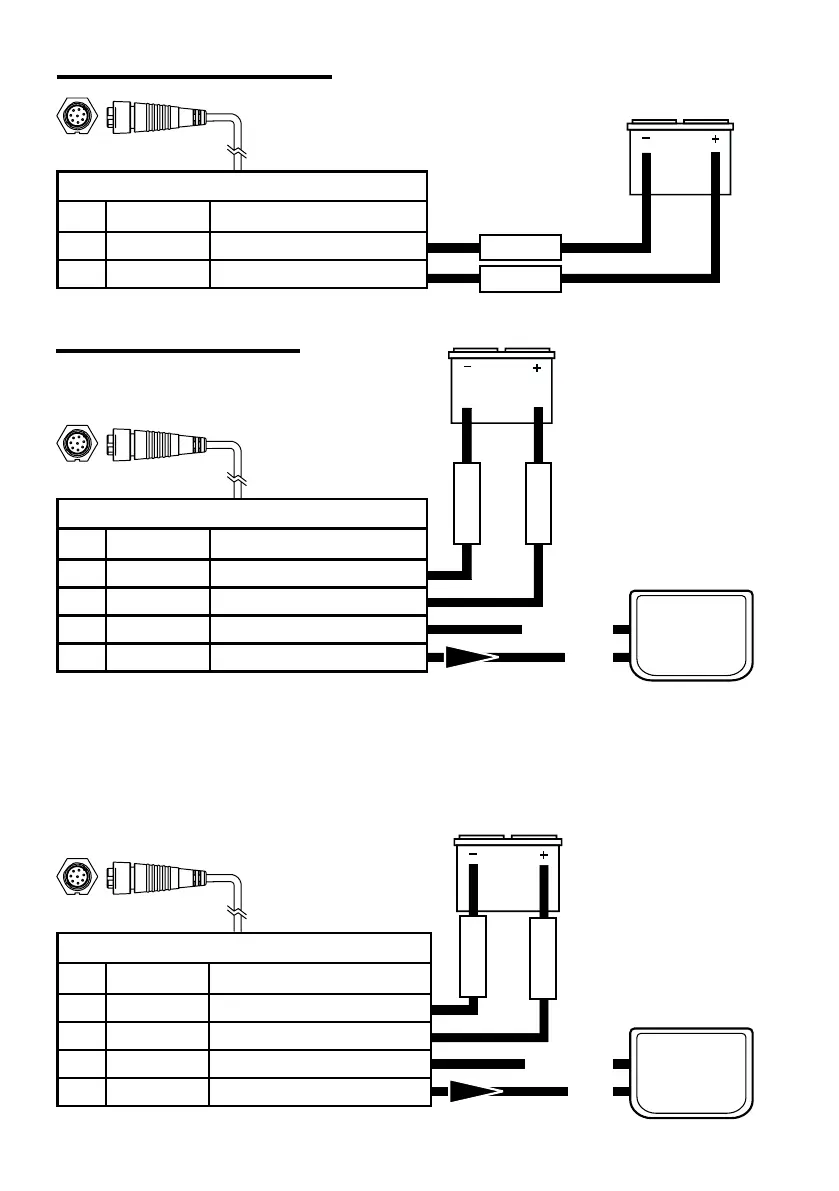

POWER & I/O CABLE
PIN Wire Color Function
1 Black PWR-/GND
2 Red POWER INPUT + (10-35 Vdc)
FUSE 1A
FUSE 1A
4.2 Autopilot connections
Autopilot on Port C
Autopilot on Port A
POWER & I/O CABLE
PIN Wire Color Function
1 Black PWR-/GND
2 Red POWER INPUT + (10-35 Vdc)
4 Green COMMON
6 Yellow OUTPUT A
RX+
COMMON
AUTOPILOT
POWER & I/O CABLE
PIN Wire Color Function
1 Black PWR-/GND
2 Red POWER INPUT + (10-35 Vdc)
4 Green COMMON
5 Gray OUTPUT C
RX+
COMMON
AUTOPILOT
FUSE 1A FUSE 1A
FUSE 1A
FUSE 1A
4.1 Power supply connection
WARNING: Do not connect the COMMON connections (green wires) of the I/O ports to the power cables
of external devices. This connection could damage the hardware of the device.
