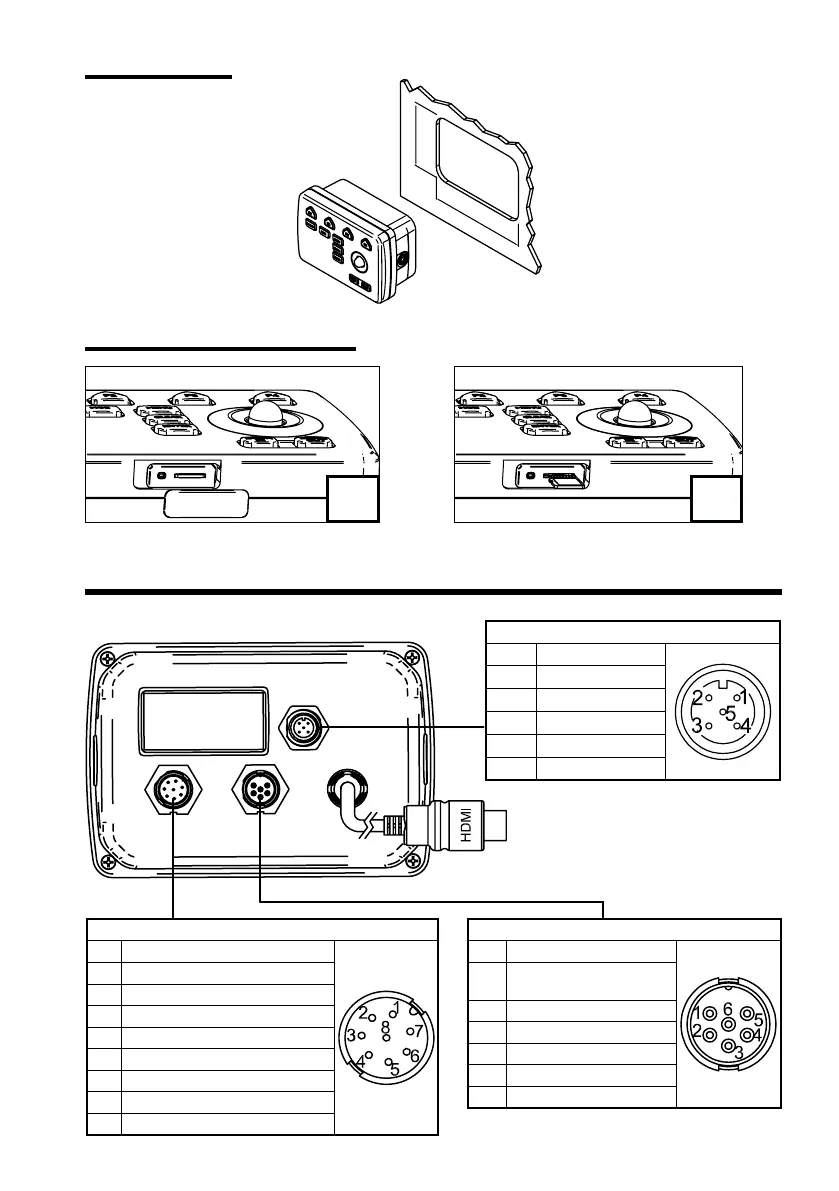

Seiwa EXPLORER 23 - Panel Mount; Connections Scheme; 3.3 How to Insert the Microsd

3.2 Panel Mount
3.3 How to insert the MicroSD
134mm [5.3"]
1
2
4. Connections scheme
HDMI OUT
NMEA 2000 Connector
PIN FUNCTION
1 NOT CONNECT
2 POWER +
3 POWER -
4 SIGNAL H
5 SIGNAL L
GPS Connector (Port B)
PIN FUNCTION
1 POWER OUTPUT
+ (10-35 Vdc)
2 OUTPUT B
3 INPUT B
4 NOT CONNECT
5 NOT CONNECT
6 GND / SIGNAL RETURN
Power & I/O Connector (Port A and C)
PIN FUNCTION
1 PWR-/GND
2 POWER INPUT + (10-35 Vdc)
3 INPUT A
4 COMMON
5 OUTPUT C
6 OUTPUT A
7 INPUT C
8 EXTERNAL ALARM OUTPUT +
