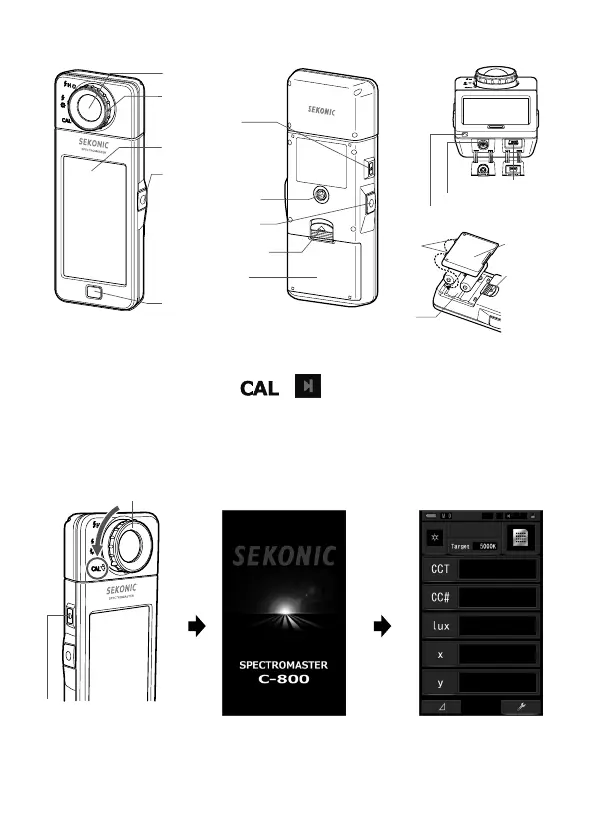

3. Names of Parts
&
［
Rear View
］
［
Front View
］
❶
Light Receptor
❷
Light Selection Ring
❿
Tripod Socket
❸
Power Button
❹
Display Panel
❺
Measuring Button
❼
Memory Button
❻
Menu Button
❽
Battery Cover Latch
❾
Battery Cover
[
Bottom View
]
⓭
Strap Eyelet
⓬
Sync Terminal
⓫
USB Mini-B Connector
［
Battery Cover Section
］
Battery
Cover Latch
Tabs
Battery
Cover
⓮
Battery Holder
4. Turning the Power ON/OFF
After installing the batteries, turn the Light Selection Ring
❷
to the
dark calibration position ( ) and turn ON this instrument
by pressing the Power Button
❸
.
After the Opening screen displays (for 2 seconds) in the Display
Panel, dark calibration starts. After dark calibration properly ends,
the Measuring screen displays.
&
Light Selection Ring
❷
Power Button
❸
[Opening Screen]
[
Measuring Screen
]
★
You can reduce start up time by simply tapping the screen when the
Opening screen appears.
★
Please wait 3 or more seconds between turning the power ON/OFF.
★
To turn OFF the power, press and hold the Power Button for more than
one second. The meter is powered off after the display disappears.
