Sel 651R - Wiring Diagrams; Diagram: Without Fuse Block

SEL-651RA Recloser Control Date Code 20160329
4
Figure 6 Attach Wires to Fuse Block
Step 4. Zip tie wires as necessary.

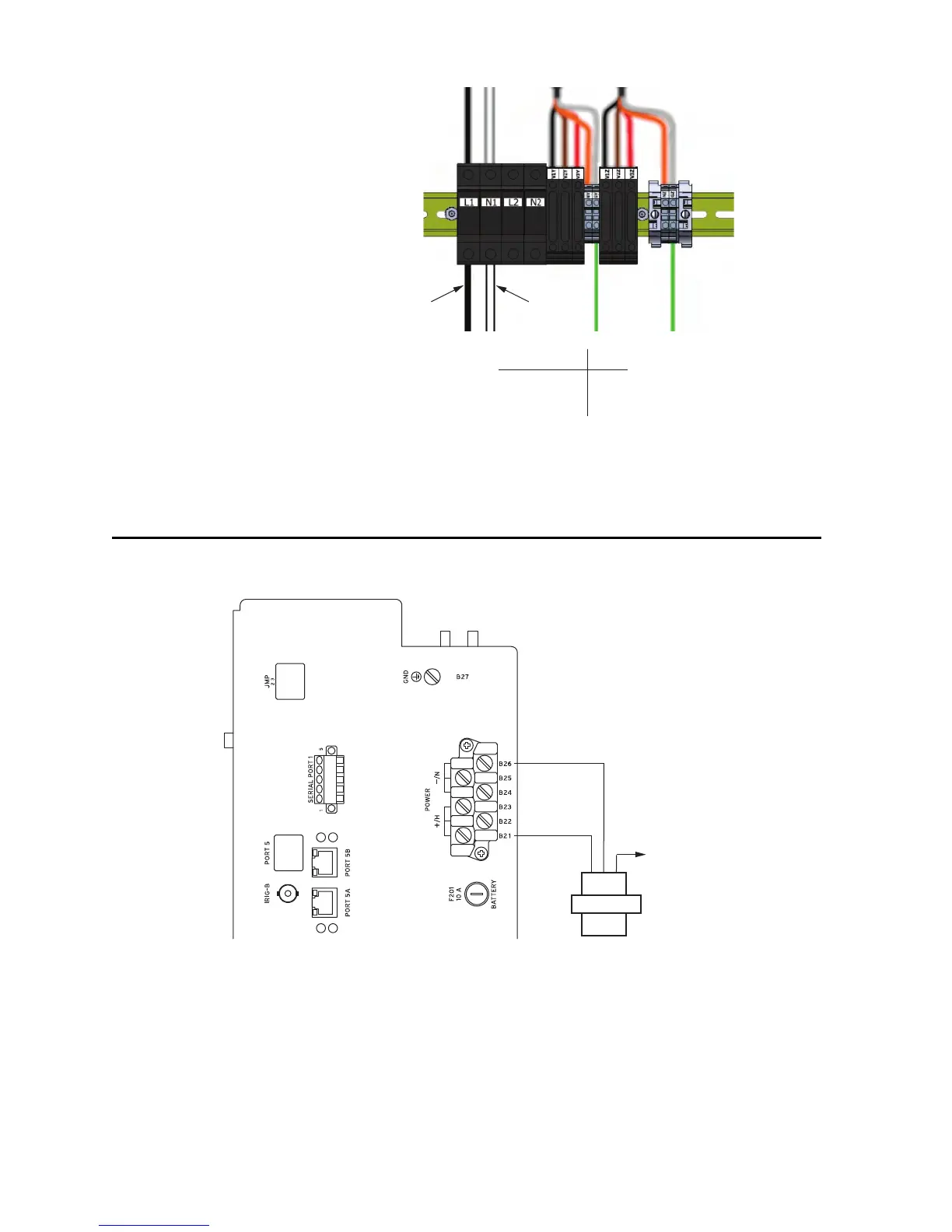

Wiring Diagrams
Without Fuse Block
3-Pin Wires:
Black Wire (A)
White Wire (B)
To:
L1
N1
Ground Stud
A B C
Black
White
