PID500 PID110 & 330
4
5
NO
Snubber(Optional)
(Part No: APRC-01)
230VAC
SUPPLY
COM
L
LOAD
Contactor
N

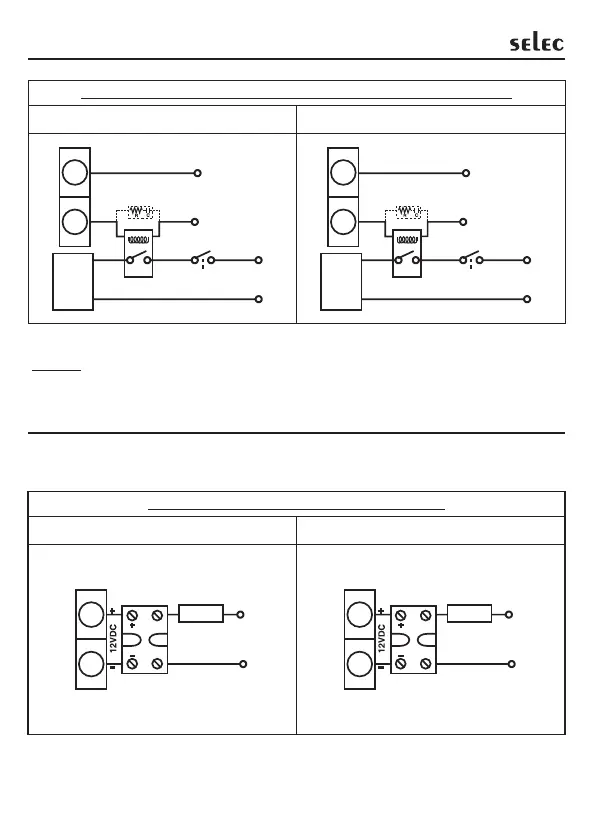

Fig3. Output 1 - Pulsed voltage to drive SSR.
NOTE: Use snubber as shown above to increase life of internal relay of
temperature controller.
11
4
5
LOAD
230VAC
SUPPLY
SSR
11
12
NO
Snubber(Optional)
(Part No: APRC-01)
230VAC
SUPPLY
COM
L
LOAD
Contactor
N
Fig2. Output 1 - Relay / SSR to drive contactor(For single phase).
PID500 PID110 & 330
11
12
LOAD
230VAC
SUPPLY
SSR
