Selec PID500 User Manual

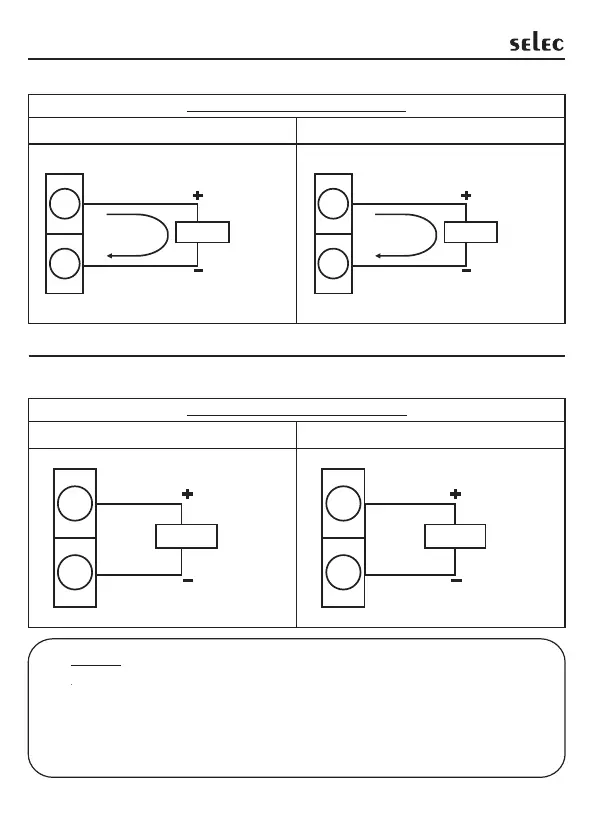

Fig4. Output 1 - Linear current.
Fig5. Output 1 - Linear voltage.
4
5
LOAD
0-5V
OR
0-10V
Minimum
Load 10K
Ohms
NO
COM
Maximum
Load 500
Ohms
4
5
LOAD
4-20mA
NO
COM
12
PID500
PID110 & 330
Maximum
Load 500
Ohms
11
12
LOAD
4-20mA
NO
COM
PID500
PID110 & 330
11
12
LOAD
0-5V
OR
0-10V
Minimum
Load 10K
Ohms
NO
COM
NOTE:
For output 2 and output 3:
1) Configuration is same.
2) Terminal nos -
Output 2 : PID500 - 2 - 3. ; PID110 & 330 - 13 - 14
Output 3 : PID500 - 14 - 15. ; PID110 & 330 - 15 - 16
Installation

Selec PID500 Specifications

General

Mounting	Panel Mount
Operating Temperature	0 to 50°C
Input Type	Thermocouple, RTD
Control Type	PID, On/Off
Output Type	Relay, SSR
Supply Voltage	85 to 270 VAC
Display	Dual, 4-digit, 7-segment LED
Size	48 x 48 mm
Accuracy	±0.25% of F.S. ±1 digit
