5. Equipment Description
Ovens are used in sample thermal treatments, for its desiccation, cured and
culture incubation.
Giving the heat treatment possibility by following a “temperature prole” allows
avoiding cracks, breaks, color changes, etc.
A temperature prole is a succession of “ramps” and “dells.”
A ramp is specied by a slope of ºC/minute or ºC/hour.
A dell is specied by a temperature and a time.
The device has a temperature log in an USB memory drive.
6. Installation
Unpack the equipment and visually check that the contents are in good con-
ditions. Keep the package for some days.
6.1 Location
Place the equipment on a at level stable surface, suitable for the equipment
weight.
To work in a comfortable way, please leave a free space of 50cm around the
equipment and a minimum of 20cm at the rear part.
6.2 Connection to the mains
Plug the equipment to a near socket suitable for the equipment power. Use the
connection cable supplied or a similar one.
For your safety, the equipment must be earthed.
Before plugging the machine, check that the voltage supply and the frequency
corresponds to the one indicated in the equipment characteristics plate.
7. Operation
All the equipment functions are set with the touch screen. Gently press with
your nger in the center of each icon.
When starting the computer, the starting screen will be shown (Fig 7.1).
• SETTINGS:
- Time and date: menu to set the date and time.
- PID and Autotuning: menu to set the parameters of temperature
control.
- Downloading recorded data.
- Temperature correction.
- Temperature alarm limits.
• PROGRAMMING
- Allows you to program the temperature prole, by dening tempe-
ratures, times and ramps.
• TASK
- Allows you to select and launch the operating temperature or a
temperature prole.

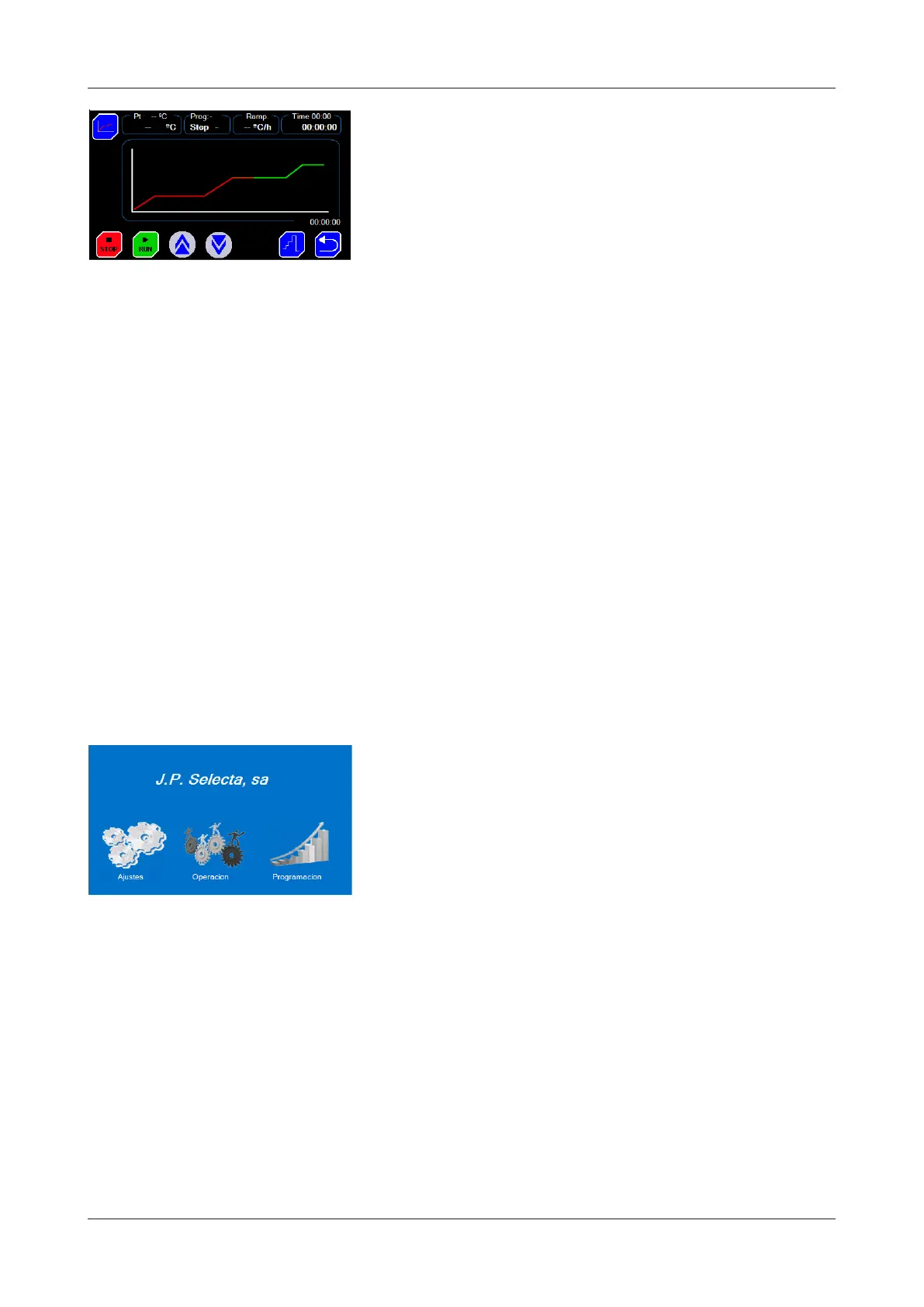

Fig 1. Temperature prole
Fig 7.1. Initial screen
