EXTERNAL SCHEMATIC AND INSTALLATION
Stand Foot Installation Instruction
Please read the following installation instruction and operate the below steps carefully.
Step One: Check the package
Open the package and check the correctness of the accessories according to the form in the left.
In addition, you need take additional installation tool for help, for example, electric cross.
If there is no problem identified above, Please operate the below procedure according to
the following left installation photo.

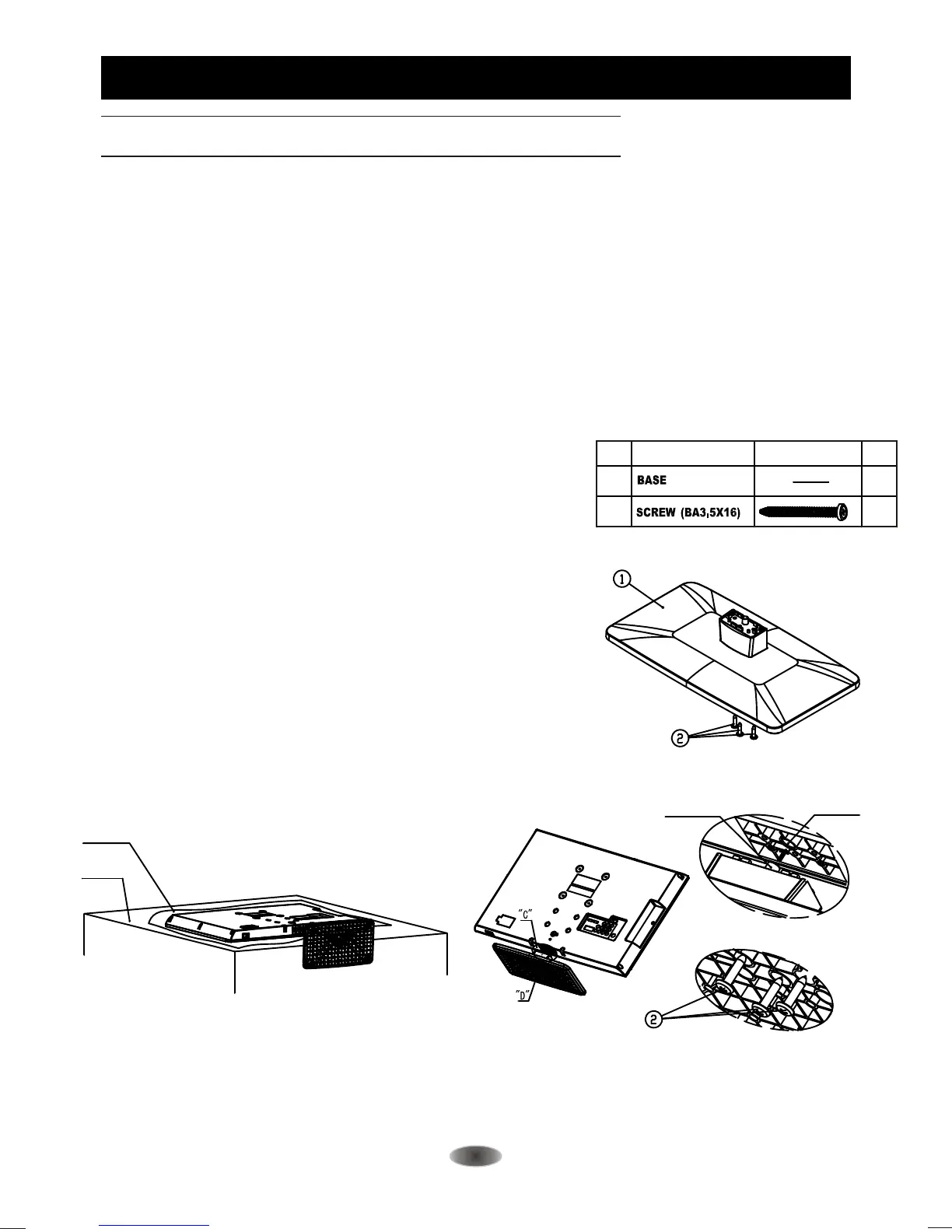

Step Two: Installation of the stand foot
(1) Put the TV on the platform and make sure the screen down to the platform with one soft
Cloth Pad to avoid the scratch of the LCD screen and cabinet.(Photo A)
(2) Insert the base pillar pilot hole below the TV, please
note that the direction of the base,such as the wrong
direction, the base will not be into the TV. (DETAIL "C")
(3) After the base insert in the end, then screw the base of
three BA3.5X16 connected with the TV, Note: screws
must be tight. (DETAIL "D")
Photo A
Cloth pad
Platform
Photo B
Guide post Pilot hole
DETAIL "C"
DETAIL "D"
S/N
Description
Guide Photo
Qty
1
2
1pc
2pcs
