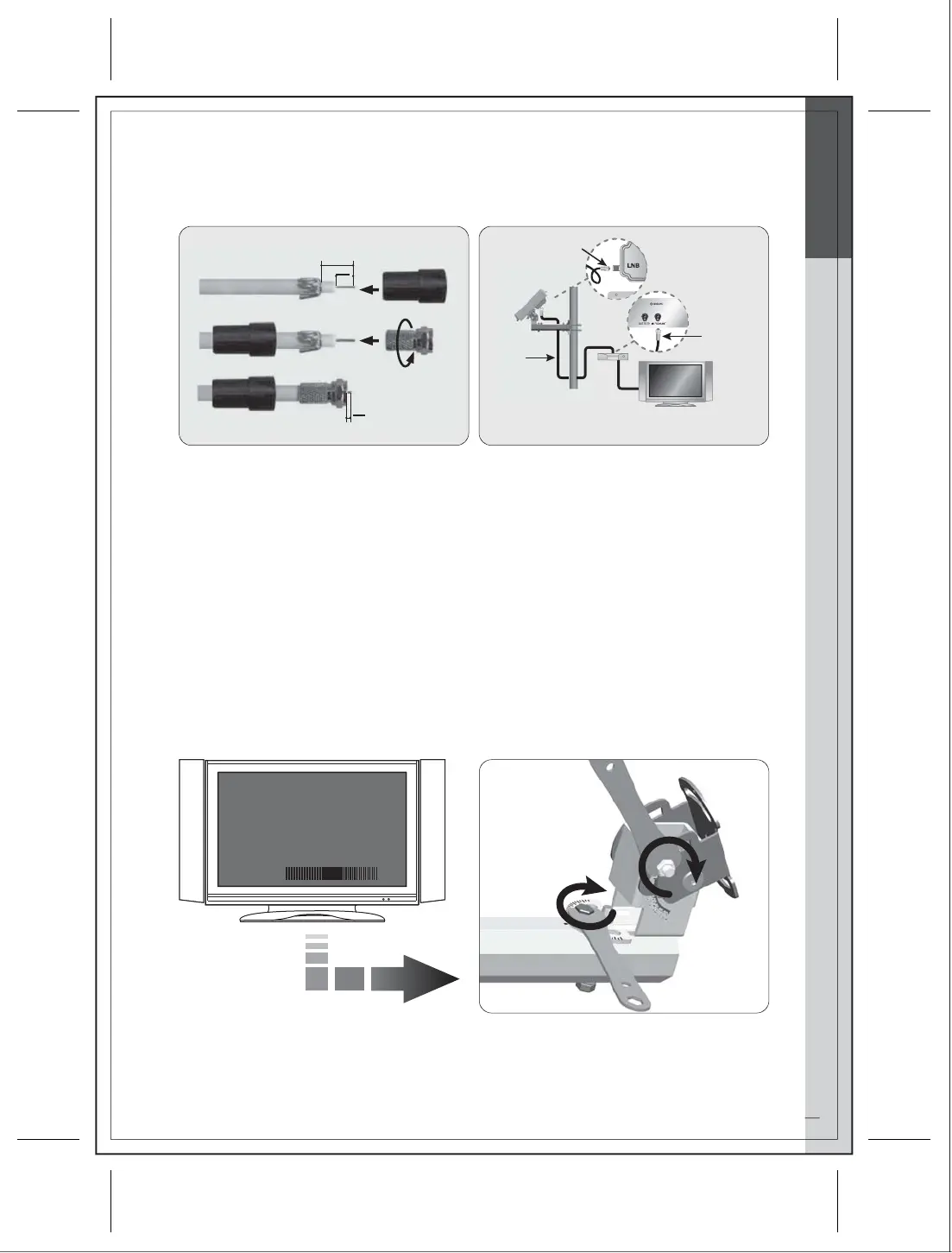

A) How to prepare the cable?
It is important that the coaxial cable does not become damaged or kinked during the installation procedure.
B) How to connect the cable to the antenna and the set top
box?
One side
To Antenna
Other side To
receiver
Cable
15mm
CONNECTOR COVER
F CONNECTOR
8mm
3mm
Antenna Pointing Menu
Signal: 0
Satelite : ASTRA 1
Transponder : 23 LNB :
ON Frequency : 12640
Step 5: Fine Tuning and Fix the Bracket
Once fine tuning is completed for signal reception, please tighten bolt and nut.
Once all connected, turn on the TV and the Satellite receiver. Select the
Antenna Pointing Menu on your set top box. You can check signal level on
your TV. Do not forget to choose “LNB : ON”
You will need someone to stay in front of the TV to tell you when the signal is “good” while you’re outside trying to adjust the antenna
the best way possible.
The signal level and quality is indicated on the TV screen and will fluctuate and change colour according to the adjustment &
movement of the antenna while you are pointing & finding (azimuth, elevation angle). The level indicates the power of the signal and
the colour is the signal reception quality from the chosen satellite.
