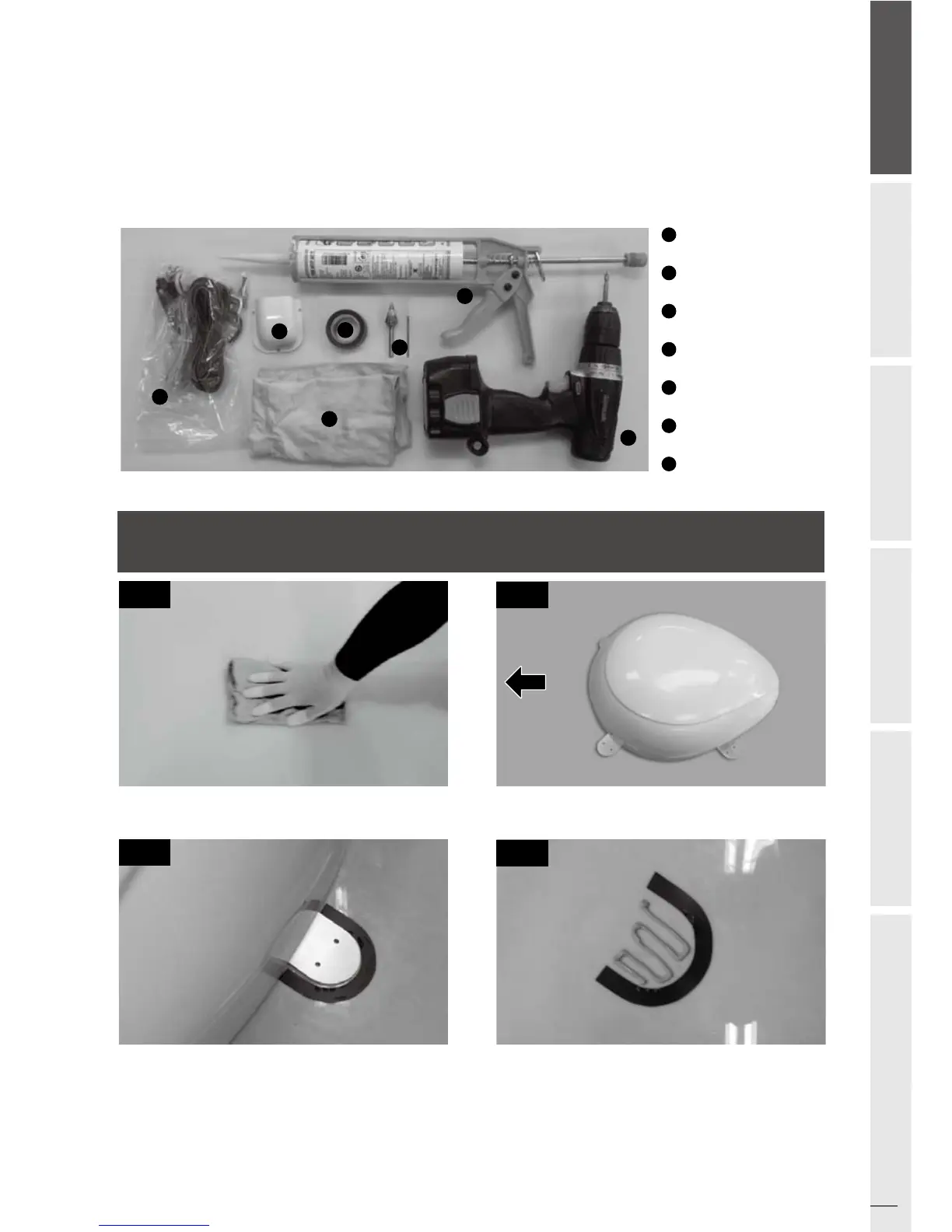

Installation Kit
Cable holder
Friction tape
2mm drill bit, 15mm drill bit
Silicone
Power drill
Cleaner
7-2. Equipment for Installation
1
2
3
4
5
6
7
Put aside the mounting plate to apply silicone
inside the guided tape line.
Attach friction tape outside of the mounting
plate, to be 4mm away from it.
4
2
FRONT
Clean the surface with cleaner.
3
1
Locate SNIPE DOME in the center of car roof.
(Screws M4x20(11)/ M4x16(2), Cable gland ,
Cable gland rubber, Cigar jack adaptor)
1
2
3
5
6
7
4
SNIPE DOME Installation on the car roof
(same for all 4 mounting plate edges)
