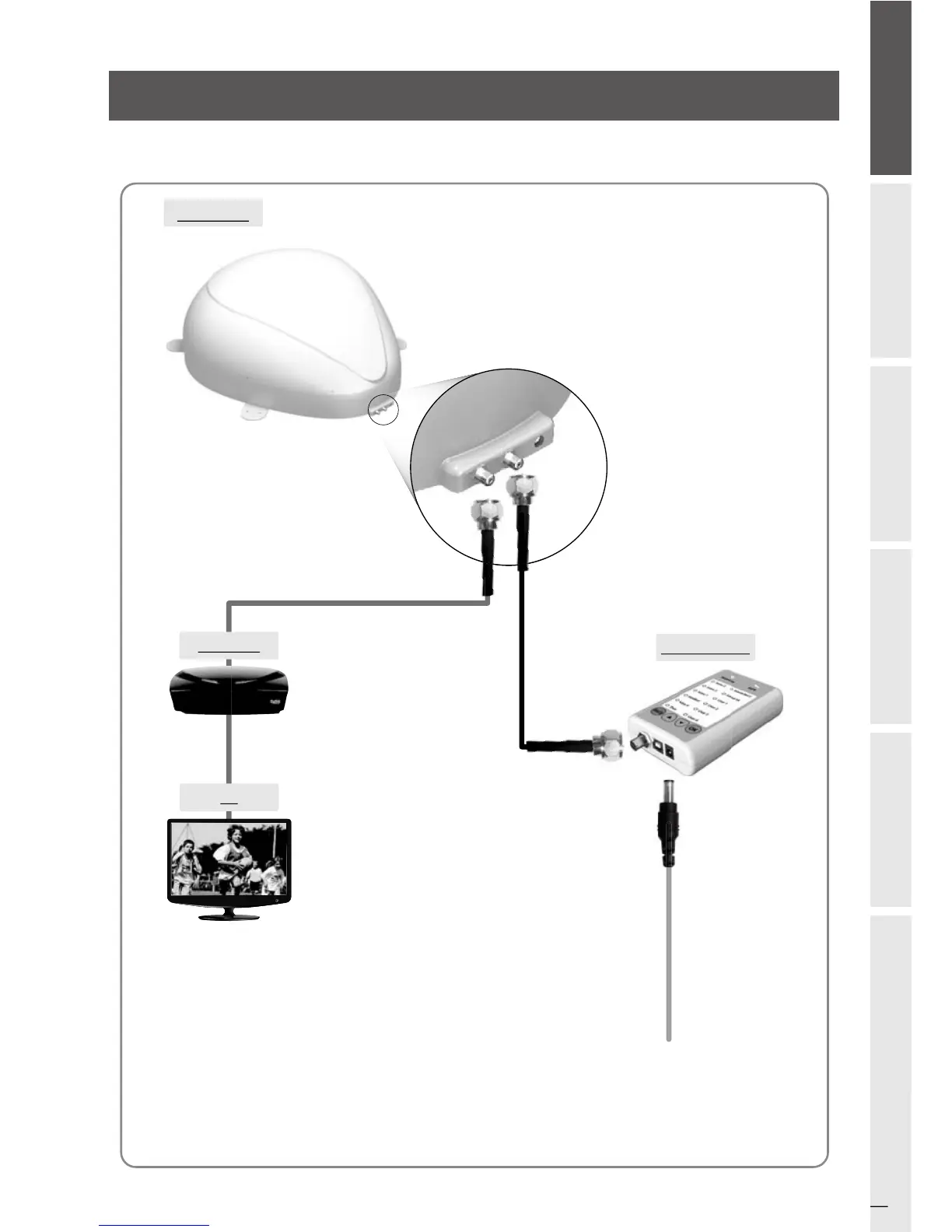

3-1. Connection Diagram
Use the controller cable to connect between the controller and antenna.
The controller cable looks similar to the antenna receiver cable but you can distinguish
them by the color and labeling.
MAIN UNIT
Receiver cable
(Grey color)
RECEIVER
TV
Controller Cable
(Black color)
CONTROLLER
Cigar jack adaptor
3. Operating Instruction
