82 SAEfon CL - Operating instruction
12.2. SAEfon CL 16D-28D
There are some keyholes cutouts for wall fixing on the bottom of the
telephone and a hook that while on the top of the telephone, in the
handset place, there is a hook to keep the handset itself in vertical
position.

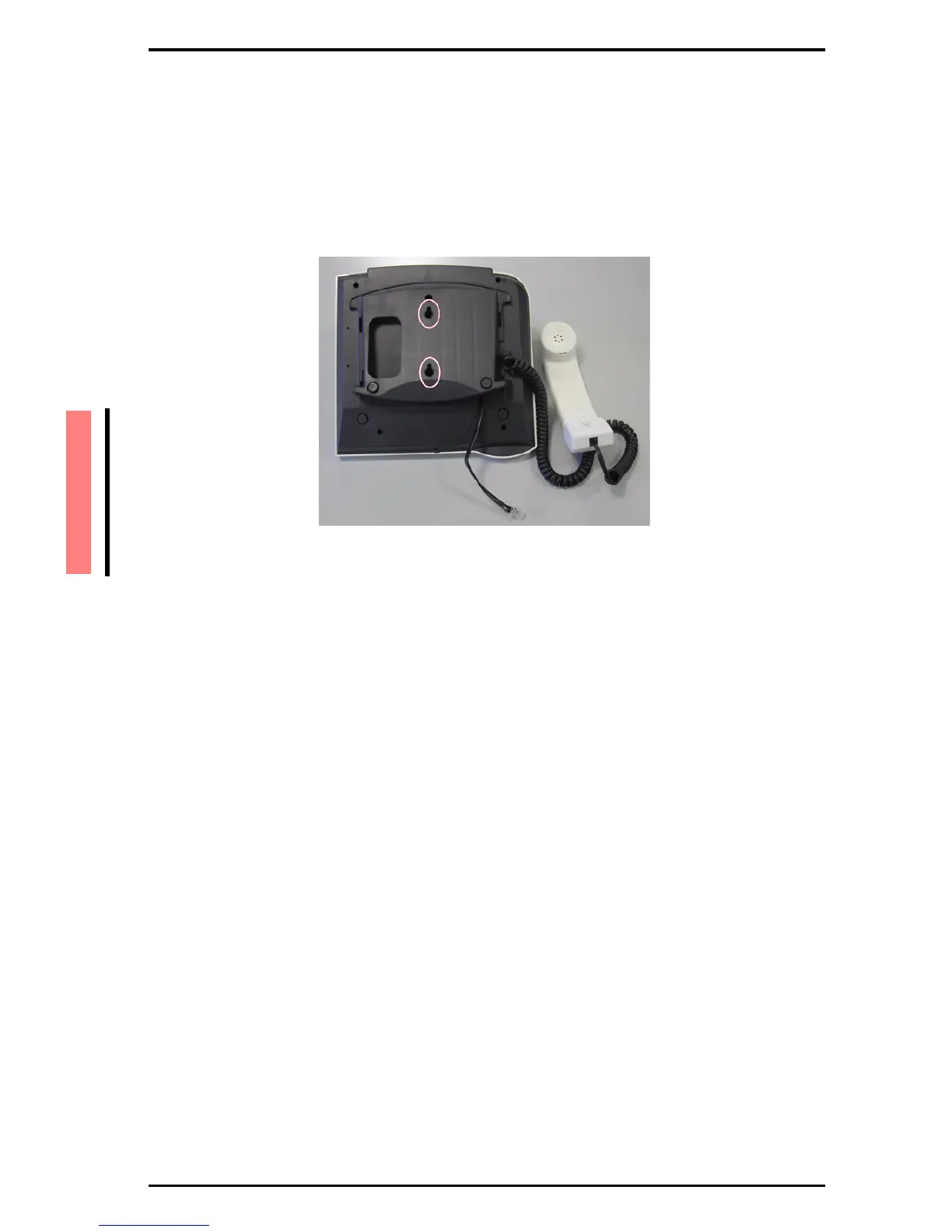

Figure 1-5 Wall mounting
For wall mounting work as follows:
• lift the removable support from the telephone base running
down in the suitable guides
• extract the telephone connecting cable leaving it positioned in
the suitable hole on the removable base
• turn of 180° the removable base and re-insert the telephone
connecting cable in the suitable plug
• re-insert the removable base running up in the suitable guides
• make on the wall n. 2 holes with a diameter of 5 mm each with
an apart distance and minimum distance from the surrounding
surfaces, as shown in Figure 1-7
• insert the 5 mm plugs into the holes
• fasten the screws to the plugs up to 5 mm from the surface of
the wall
• position the telephone against the wall over the screws so that
the screws heads insert in the larger part of the keyholes
cutouts and block the telephone by sliding it down onto the
screws.
