12. WALL MOUNTING
The possibility of wall mounting is foreseen for SAEfon CL 08D and
SAEfon 16D-28D.
12.1. SAEfon CL 08D
There are some keyholes cutouts for wall fixing on the back of the
telephone and a hook that can be turned for the telephone's vertical
stand.

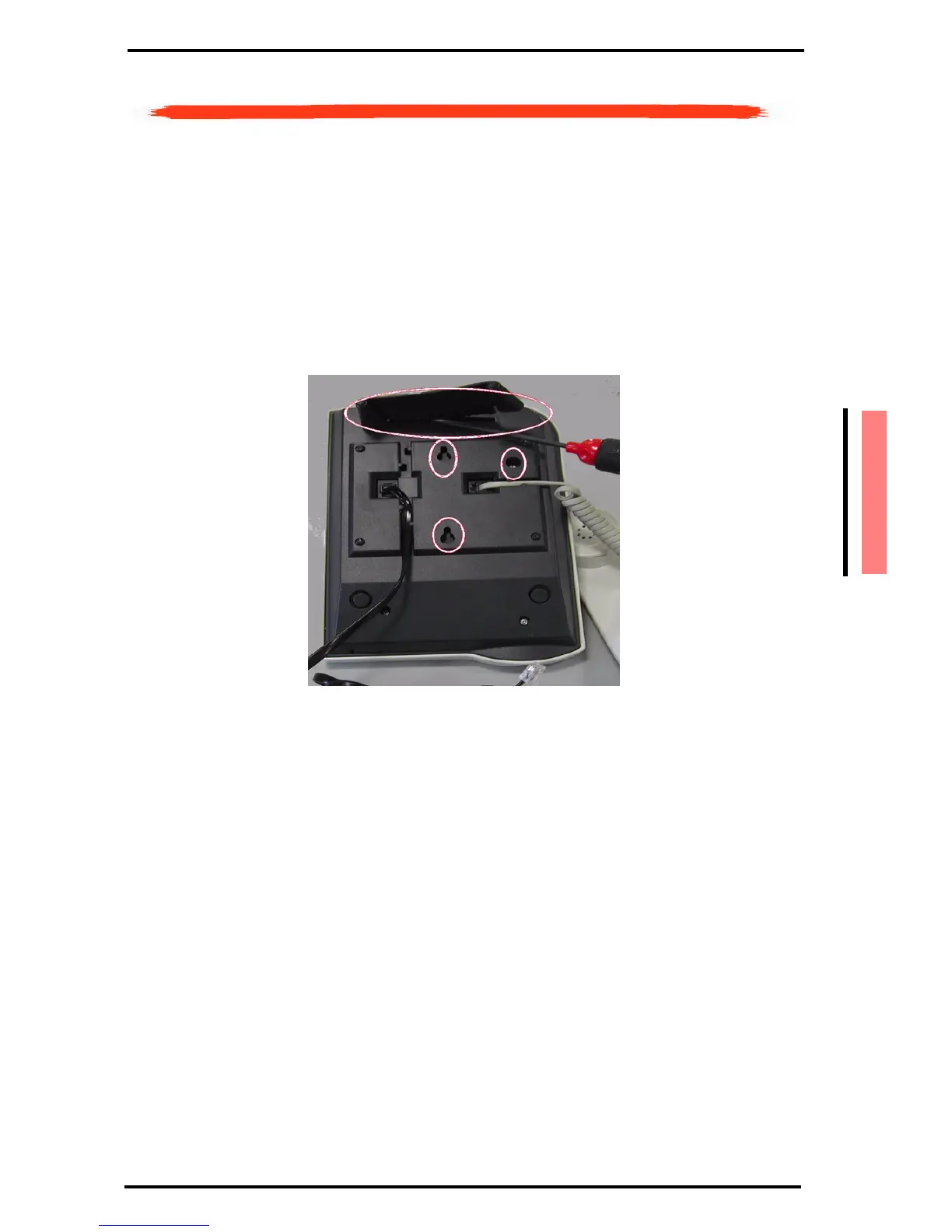

Figure 1-4 Wall mounting
For wall mounting work as follows:
• lift the removable support from the telephone base with a
screwdriver
• turn of 180°, with a standard screwdriver with flat blade tip, the
hook on the bottom of the telephone
• make on the wall n. 2 holes with a diameter of 5 mm each with
an apart distance and minimum distance from the surrounding
surfaces, as shown in Figure 1-6
• insert the 5 mm plugs into the holes
• fasten the screws to the plugs up to 5 mm from the surface of
the wall
• position the telephone against the wall over the screws so that
the screws heads insert in the larger part of the keyholes
cutouts and block the telephone by sliding it down onto the
screws.
