74 SAE
fon
- operating instructions

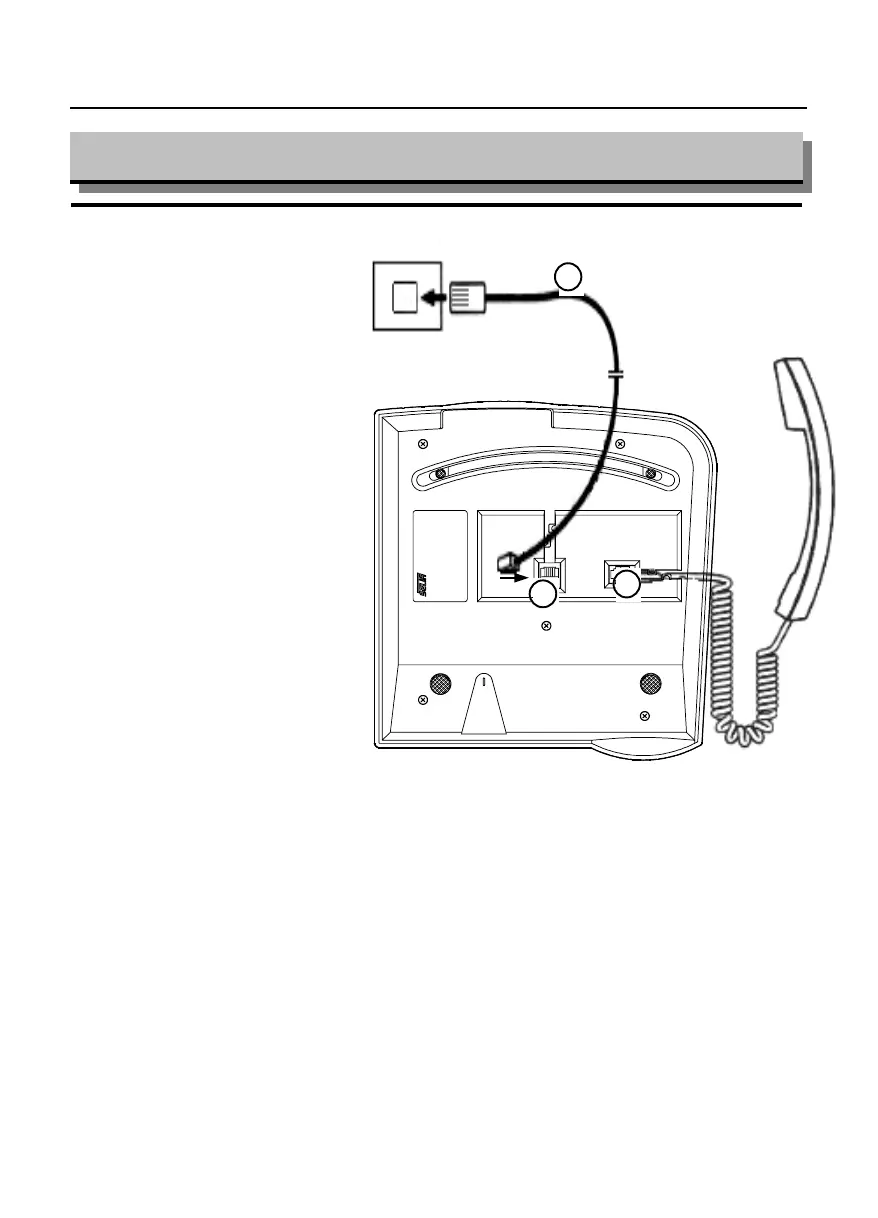

After you have unpacked the
telephone, connect the handset
first, by inserting the straight
end of the spiral connecting
cable into the lateral socket on
the base of the telephone
(1)
;
insert the other end of this
cable into the handset.
Now connect the telephone by
inserting the connector on the
telephone connecting cable
into the central socket on the
base of the telephone
(2)
;
insert the other end of the
cable into the telephone
connection socket
(3)
.
The telephone is ready to
operate.
In case an external P.C. is
being used, you must connect
the P.C. serial interface to a
special telephone junction box,
connected with the SAE exchange and to the central socket on the base of the
telephone.
By gently pulling, check that the cables connectors are in place.
Connectings SAEfon B/T/E
1
INSTALLATION
2
1
3
2
