94
* Termination Resistor at Tx side can be omitted if the signal status is good.

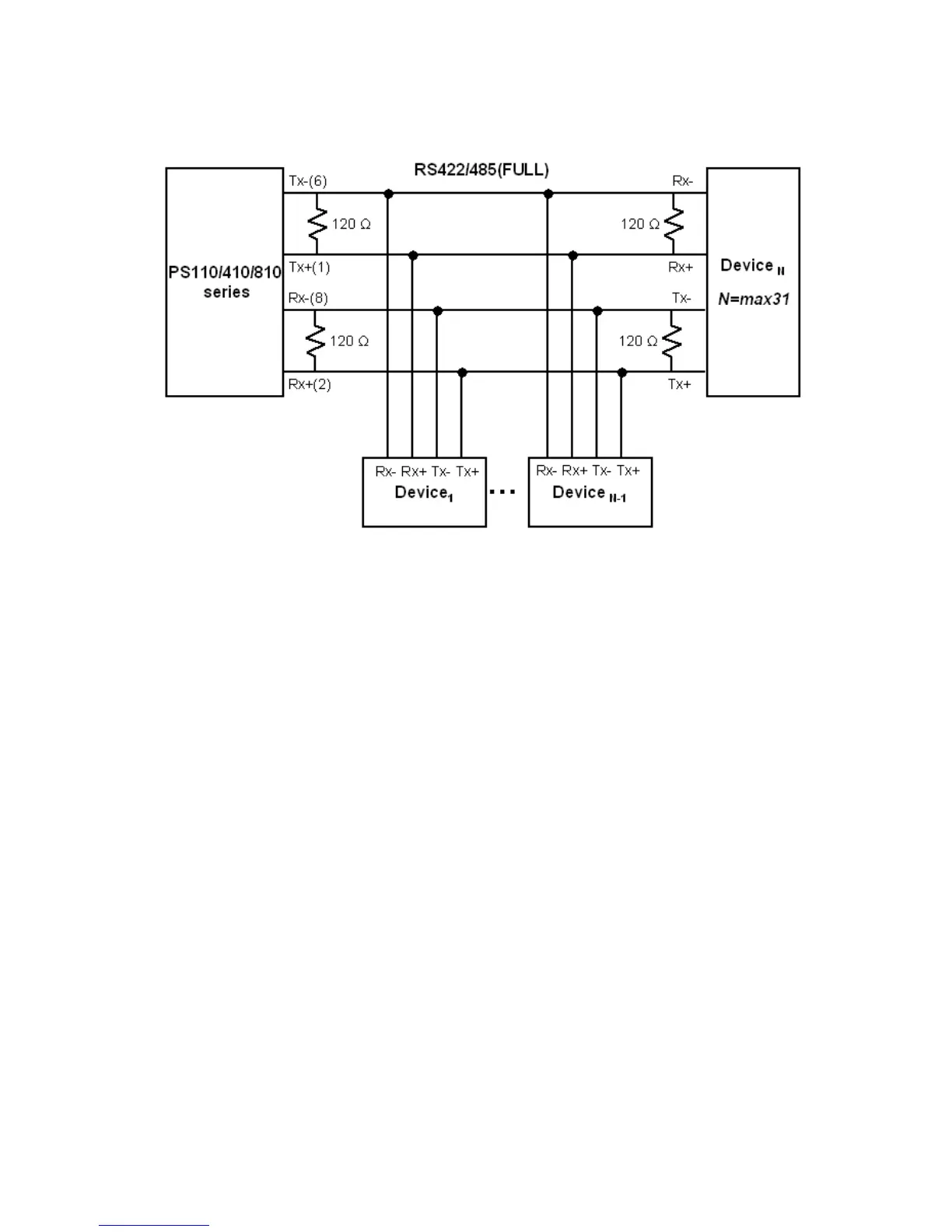

Figure A-8 RS422 wiring diagram
